5 Ton Outdoor Diesel Forklift | Heavy-Duty Yard Handling
5,000 kg High-Capacity Handling
Lift heavy pallets, packaged building materials, and industrial loads with a 5,000 kg rated capacity at a 500 mm load centre.
Diesel Power for Outdoor Work
The four-cylinder 2,540 cc diesel engine, pneumatic tires, and 90 L fuel tank support regular industrial-yard handling schedules.
Stable Heavy-Load Operation
A 2,100 mm wheelbase, 3,050 mm turning radius, and 20% listed maximum gradeability provide a practical base for demanding outdoor work.
3,000 mm Lift Height
The standard 3,000 mm lift height supports routine truck loading, material stacking, and yard transfer operations.

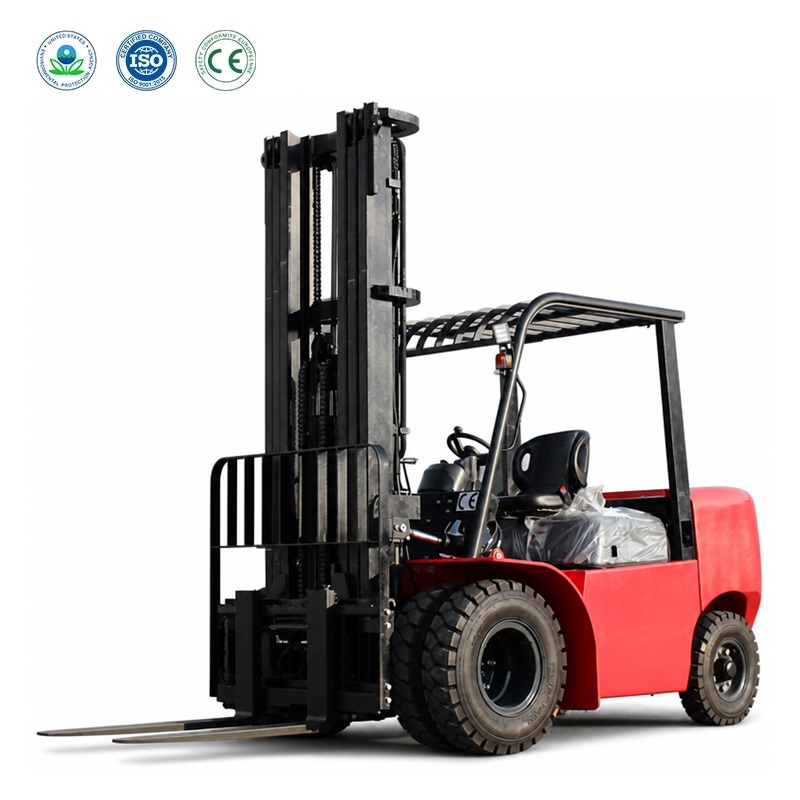

The SCC50 is a heavy-duty 5 ton outdoor diesel forklift built for high-capacity material handling in industrial yards, logistics operations, factories, building-material storage areas, and suitable mining work environments. It provides a practical diesel configuration for loading, unloading, stacking, and moving heavy materials across outdoor work areas.
With a 5,000 kg rated capacity at a 500 mm load centre and a 3,000 mm lift height, the SCC50 is designed for heavy pallets, packaged building products, industrial components, and general yard loads. Its 2,540 cc four-cylinder diesel engine, 90 L fuel tank, and pneumatic tires are configured for regular outdoor handling where high lifting capacity and practical mobility are required.
The SCC50 combines high lifting capacity with dimensions suited to industrial yard operations. Its 1,480 mm overall width, 2,100 mm wheelbase, and 3,050 mm outside turning radius allow operators to plan movement around trucks, storage lanes, and loading points. The listed maximum gradeability is 20% when laden, while attachment operating pressure is 17.5 MPa.
Why Choose the SCC50?
5,000 kg High-Capacity Handling
The 5,000 kg rated capacity provides additional handling capability for heavy pallets, packaged materials, industrial components, and general yard loads.
Built for Outdoor Industrial Work
Diesel power, pneumatic tires, 175 mm minimum ground clearance at the bottom of the mast, and a listed 20% maximum gradeability support suitable outdoor operating conditions.
3,000 mm Lift Height
The standard 3,000 mm lift height supports routine stacking, truck loading, unloading, and material transfer within the applicable load chart.
Four-Cylinder Diesel Engine
The 4D35G engine is listed with 2,540 cc displacement and 48 kW rated output at 2,300 rpm.
90 L Fuel Tank
The 90 L fuel tank is designed for planned outdoor work cycles, with actual fuel consumption and operating time depending on workload and site conditions.
Practical Yard Maneuverability
A 1,480 mm overall width, 2,100 mm wheelbase, and 3,050 mm outside turning radius provide key dimensions for planning movement through industrial and logistics yards.
Heavy-Duty Working Configuration
With a listed service weight of 6,660 kg, the SCC50 provides a substantial working platform for high-capacity material handling.
Hydraulic Attachment Capability
The specification sheet lists 17.5 MPa operating pressure for attachments. Confirm hydraulic flow, attachment compatibility, residual capacity, and the final configuration before operation.
| Parameter | Specification |
|---|---|
| Model | SCC50 |
| Power Type | Diesel |
| Rated Capacity | 5,000 kg |
| Load Centre | 500 mm |
| Lift Height | 3,000 mm |
| Engine Power | 48 kW |
| Travel Speed, Unloaded | 18.5 km/h |
| Maximum Gradeability, Laden | 20% |
| Overall Width | 1,480 mm |
| Turning Radius | 3,050 mm |
| Service Weight | 6,660 kg |
| Fuel Tank Capacity | 90 L |
