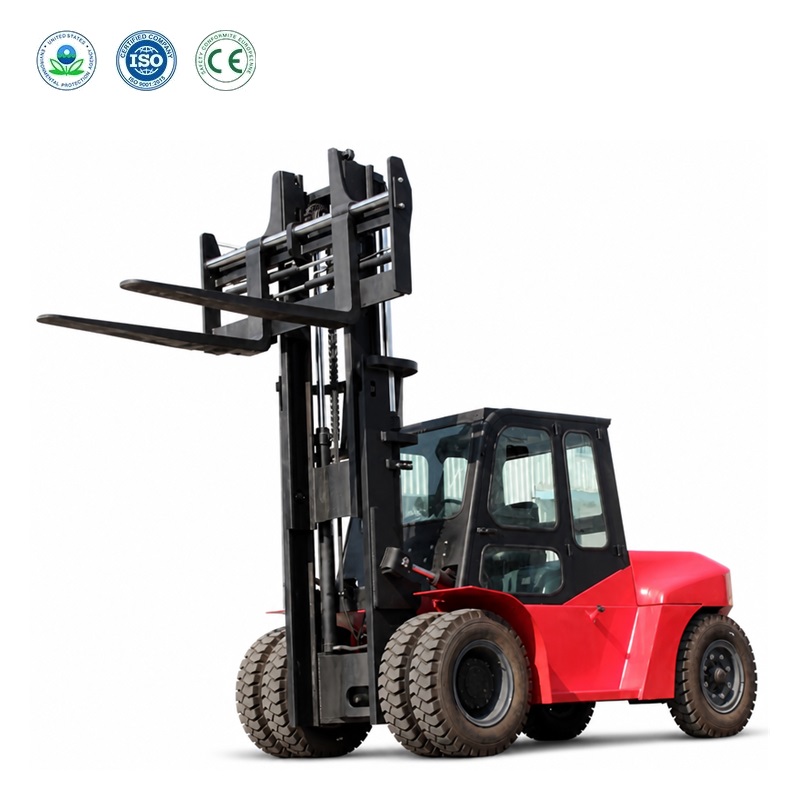

10 Ton Outdoor Diesel Forklift
10,000 kg High-Capacity Handling
Move heavy industrial loads, building materials, and large pallets with a 10,000 kg rated capacity at a 600 mm load centre.
85 kW Diesel Power
The Xichai 4DF3 engine delivers listed 85 kW power for demanding outdoor handling operations.
Heavy-Load Stability
A 2,800 mm wheelbase, 250 mm ground clearance, and 20% listed gradeability support controlled movement on suitable industrial sites.
Fast Yard Transfer
A 26 km/h maximum travel speed and 400 mm/s maximum lift speed support efficient loading, unloading, and material transfer.
The SCC100 is a high-capacity 10 ton outdoor diesel forklift positioned for heavy material handling in industrial and mining companies, logistics yards, large building-material storage sites, factories, and other demanding outdoor work areas. It is designed for buyers who need substantially more lifting capacity than standard 2.5 ton, 4.5 ton, or 5 ton forklifts for handling large, heavy, or concentrated industrial loads.
With a 10,000 kg rated capacity at a 600 mm load centre and a 3,000 mm lift height, the SCC100 is suited to appropriate applications involving heavy machinery components, steel products, packaged building materials, industrial equipment, large pallets, and general yard loads. The final application must be checked against the official load chart, attachment configuration, surface conditions, and operating procedures.
The SCC100 combines high-capacity lifting with a diesel powertrain and heavy-duty outdoor configuration. Its Xichai 4DF3 engine is listed with 85 kW power, while the 2,800 mm wheelbase, 250 mm ground clearance, 9.00-20-14PR front and rear tires, and 20% listed maximum gradeability provide a basis for site planning. A 26 km/h maximum travel speed supports movement between loading points, storage areas, and transfer zones where the operating surface and traffic plan are suitable.
Why Choose the SCC100 for High-Capacity Outdoor Material Handling?
10 Ton Industrial Load Capacity
The 10,000 kg rated capacity at a 600 mm load centre provides the lifting range required for large industrial loads and heavy building materials, subject to the load chart.
Designed for Industrial and Mining Sites
The diesel powertrain, 250 mm ground clearance, large pneumatic tires, and high service weight support suitable heavy-duty outdoor applications when site conditions are properly assessed.
Efficient Logistics-Yard Transfer
A maximum travel speed of 26 km/h and maximum lift speed of 400 mm/s support planned movement between trucks, loading points, storage lanes, and material-transfer areas.
Suitable for Large Building-Material Yards
The SCC100 provides high-capacity handling for suitable steel products, packaged building materials, industrial components, and heavy yard loads, subject to attachment and load-chart confirmation.
85 kW Diesel Power
The Xichai 4DF3 engine is listed with 85 kW power for demanding material-handling operations.
High-Lift Working Configuration
The standard 3,000 mm lift height and 220 mm full free lift height support suitable stacking and truck-loading tasks.
Heavy-Duty Site Dimensions
The 2,260 mm total width, 2,800 mm wheelbase, 3,950 mm minimum turning radius, and 12,500 kg service weight should be included in site-access, pavement, and transport planning.
Hydraulic Attachment Capability
The listed 20 MPa work pressure supports attachment-related planning. Confirm hydraulic flow, attachment compatibility, residual capacity, and the final configuration before use.
| Parameter | Specification |
|---|---|
| Model | SCC100 |
| Rated Capacity | 10,000 kg |
| Load Centre | 600 mm |
| Lift Height | 3,000 mm |
| Engine Power | 85 kW |
| Maximum Travel Speed | 26 km/h |
| Maximum Gradeability | 20% |
| Overall Dimensions | 5,565 × 2,260 × 4,450 mm |
| Service Weight | 12,500 kg |
