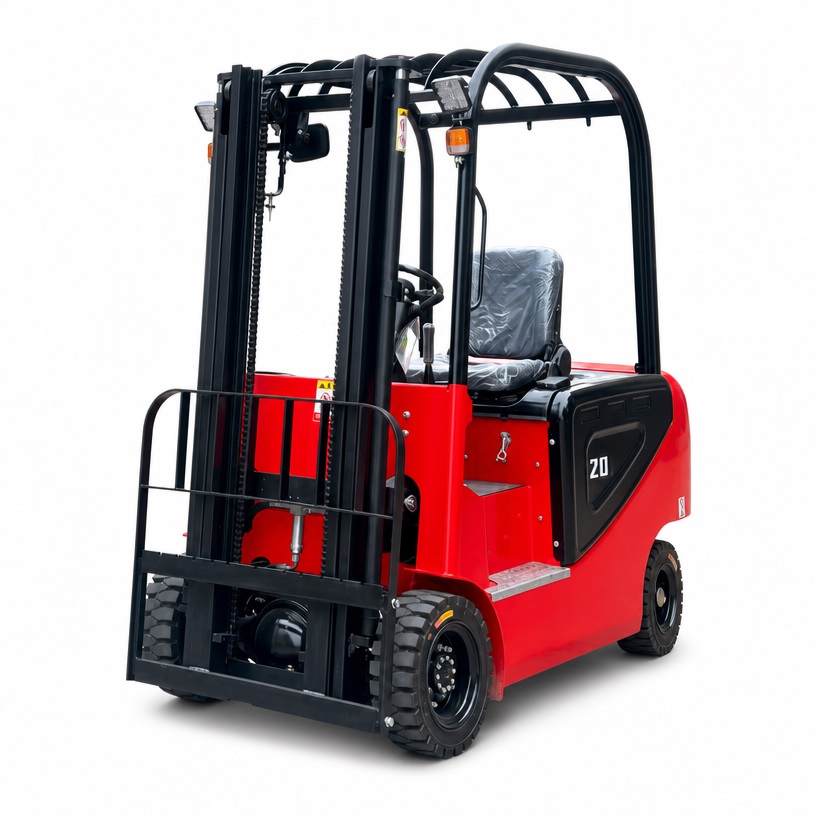

2 Ton Electric Forklift | 3 m Lift Height
2,000 kg Rated Capacity
The 500 mm load-centre rating establishes the handling condition for pallets and packaged goods up to 2,000 kg within the approved load chart.
60 V / 210 Ah Lead-Acid Battery
The battery supplies electrical energy to the drive and lifting systems, avoiding on-site fuel handling during normal warehouse operation.
3,000 mm Lift Height
The defined lift height supports standard pallet stacking and transfer work, with the 2,110 mm overhead guard height available for access planning.
PMSM/AC Electric Motors
The 5 kW drive motor and 4.5 kW lift motor use the listed PMSM/AC configuration for defined electric travel and lifting functions.
The CPD20-D is a 2 ton seated electric forklift for pallet and packaged-goods handling in warehouses, workshops, loading areas, and other planned material-handling zones. It is rated for 2,000 kg at a 500 mm load centre.
A 60 V / 210 Ah lead-acid battery powers the drive and lifting systems for routine material handling. Charging, ventilation, electrical protection, and local workplace requirements should be assessed before operation.
The forklift has a 3,000 mm maximum lift height, 1,096 mm overall width, 1,550 mm wheelbase, and 2,280 mm turning radius. Solid tires are specified, with listed travel speeds of 7.5 / 8.5 km/h laden/unladen and lifting speeds of 180 / 200 mm/s.
Why Choose the CPD20-D Electric Forklift?
Defined 2,000 kg Handling Class
The CPD20-D is rated for 2,000 kg at a 500 mm load centre. This enables buyers to compare the machine against pallet weights, packaging formats, attachment requirements, and the official load chart before commissioning.
Battery System for Planned Indoor Work
The 60 V / 210 Ah lead-acid battery defines the available electrical configuration for fleet and charging planning. The listed battery weight is 300 kg and should be considered together with the 2,550 kg service mass with battery.
3,000 mm Vertical Handling Range
The listed 3,000 mm maximum lift height supports standard pallet placement and stacking. The final working height and residual capacity must be checked against the load chart, mast configuration, rack geometry, and attachment.
Dimensions for Aisle Planning
The 1,096 mm overall width, 1,550 mm wheelbase, and 2,280 mm turning radius provide fixed references for route planning. The listed aisle widths are 3,750 mm for 1,000 × 1,000 mm pallets and 3,950 mm for 1,200 × 1,200 mm pallets; these values should be confirmed against the final layout and operating method.
PMSM/AC Electric Powertrain
The listed 5 kW drive motor and 4.5 kW lift motor use the PMSM/AC configuration. This defines the electric motor arrangement for travel and lifting; actual performance depends on load, battery condition, duty cycle, floor, and operating settings.
Solid-Tire Configuration
The solid-tire specification reduces dependence on pneumatic tire-pressure checks. Floor quality, debris levels, travel distance, and duty cycle should still be assessed before final selection.
| Parameter | Specification |
|---|---|
| Model | CPD20-D |
| Rated Capacity | 2,000 kg |
| Load Centre | 500 mm |
| Maximum Lift Height | 3,000 mm |
| Battery System | 60 V / 210 Ah Lead-Acid |
| Overall Width | 1,096 mm |
| Turning Radius | 2,280 mm |
| Service Mass with Battery | 2,550 kg |
| Drive / Lift Motor | 5 kW / 4.5 kW PMSM/AC |
