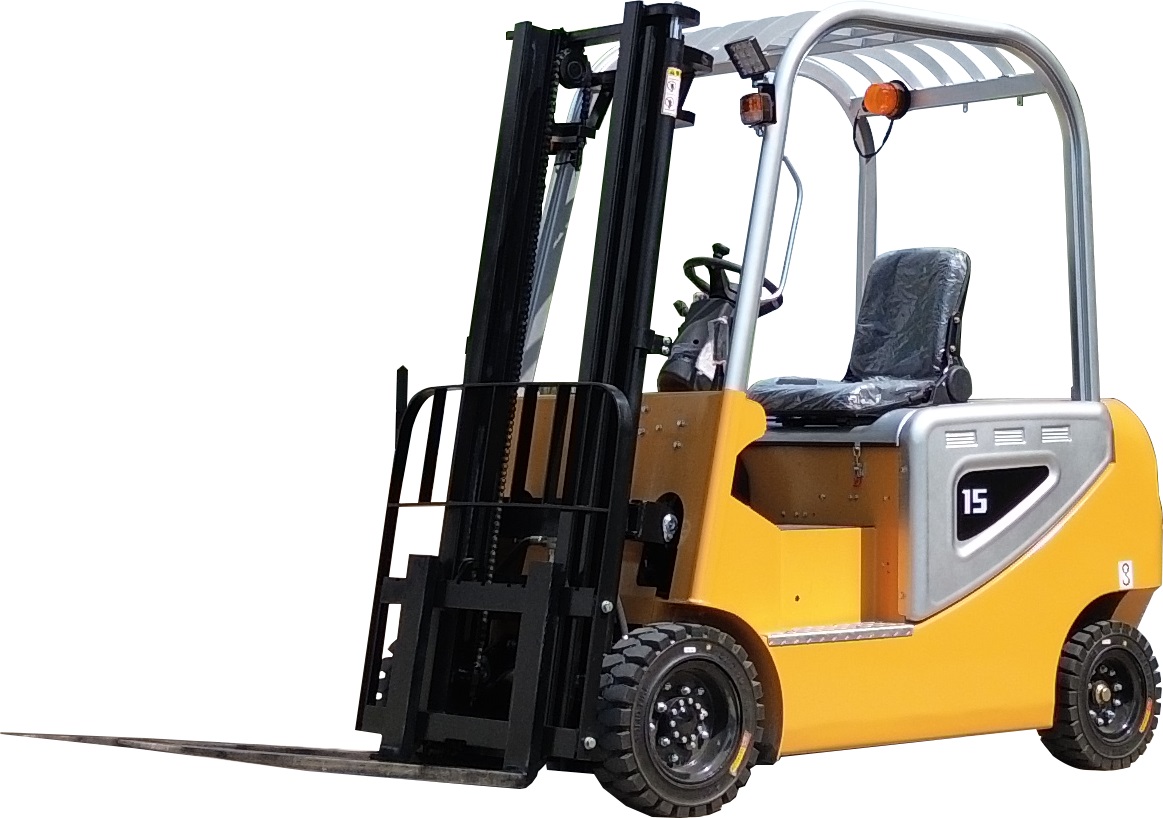

1.5 Ton Electric Forklift | 3 m Lift Height

The CPD15-D is a 1.5 ton seated electric forklift for pallet and packaged-goods handling in warehouses, workshops, loading areas, and other planned material-handling zones. It is rated for 1,500 kg at a 500 mm load centre.

A 60 V / 140 Ah lead-acid battery powers the drive and lifting systems, providing a battery-electric solution for routine material handling. Charging, ventilation, electrical protection, and local workplace requirements should be assessed before operation.

The forklift has a 3,000 mm maximum lift height, 1,096 mm overall width, 1,550 mm wheelbase, and 2,200 mm turning radius. Solid tires are specified, with listed travel speeds of 7.5 / 8.5 km/h laden/unladen and lifting speeds of 200 / 220 mm/s.

Why Choose the CPD15-D Electric Forklift?

Defined 1,500 kg Handling Class

The CPD15-D is rated for 1,500 kg at a 500 mm load centre. This enables buyers to compare the machine against pallet weights, packaging formats, attachment requirements, and the official load chart before commissioning.

Battery System for Planned Indoor Work

The 60 V / 140 Ah lead-acid battery defines the available electrical configuration for fleet and charging planning. The listed battery weight is 165 kg and should be considered together with the 2,150 kg service mass with battery.

3,000 mm Vertical Handling Range

The listed 3,000 mm maximum lift height supports standard pallet placement and stacking. The final working height and residual capacity must be checked against the load chart, mast configuration, rack geometry, and attachment.

Dimensions for Aisle Planning

The 1,096 mm overall width, 1,550 mm wheelbase, and 2,200 mm turning radius provide fixed references for route planning. The listed aisle widths are 3,750 mm for 1,000 × 1,000 mm pallets and 3,950 mm for 1,200 × 1,200 mm pallets; these values should be confirmed against the final layout and operating method.

PMSM Electric Powertrain

The listed 5 kW drive motor and 4.5 kW lift motor use PMSM technology. This defines the electric motor configuration for controlled travel and lifting; actual performance depends on load, battery condition, duty cycle, floor, and operating settings.

Solid-Tire Configuration

The solid-tire specification reduces dependence on pneumatic tire-pressure checks. Floor quality, debris levels, travel distance, and duty cycle should still be assessed before final selection.
