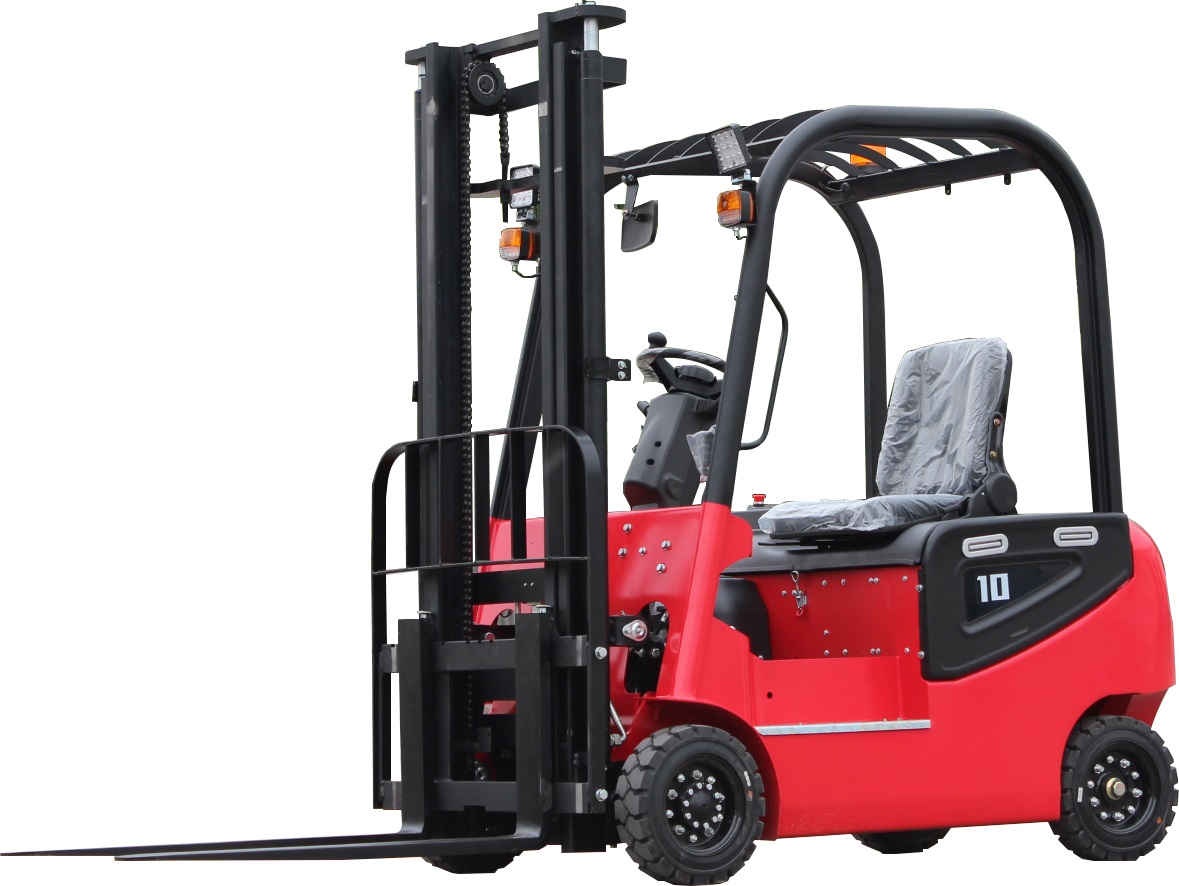

1 Ton Electric Forklift | 1,000 kg Seated Forklift
1,000 kg Rated Capacity
Rated for up to 1,000 kg at a 500 mm load centre, providing a clear reference for pallet and packaged-goods handling.
Battery-Electric Drive
A 60 V / 120 Ah lead-acid battery powers the drive and lifting systems for routine electric material handling.
3,000 mm Lift Height
The listed 3,000 mm maximum lift height supports pallet placement and stacking within the applicable load chart and mast configuration.
Defined Dimensions
With a 1,020 mm overall width and 2,050 mm turning radius, the CPD10-D provides practical dimensions for aisle and access planning.
The CPD10-D is a compact seated electric forklift designed for planned material handling in warehouses, workshops, loading areas, and production support zones. Its 1,000 kg rated capacity at a 500 mm load centre provides a clear starting point for matching the forklift to pallet weight and load dimensions.
The forklift uses a 60 V / 120 Ah lead-acid battery with a 5 kW PMSM drive motor and 4.5 kW PMSM lift motor. Solid tires are specified for the model, while actual suitability depends on floor conditions, duty cycle, load, and operating environment.
The listed maximum lift height is 3,000 mm. Key dimensions include a 1,020 mm overall width, 1,330 mm wheelbase, 2,050 mm turning radius, and 1,847 mm overhead guard height.
Key Features
Electric Power System
60 V / 120 Ah lead-acid battery with separate 5 kW drive and 4.5 kW lift motors.
1,000 kg Handling Class
1,000 kg rated capacity at a 500 mm load centre for defined pallet-handling applications.
3,000 mm Lift Height
Suitable for planned pallet placement and stacking within the applicable load chart.
Solid Tires
Non-pneumatic tire construction for the specified model, with suitability dependent on the working surface and duty cycle.
Compact Handling Dimensions
1,020 mm overall width and 2,050 mm turning radius provide clear references for site and aisle planning.
| Parameter | Specification |
|---|---|
| Model | CPD10-D |
| Rated Capacity | 1,000 kg |
| Load Centre | 500 mm |
| Maximum Lift Height | 3,000 mm |
| Battery | 60 V / 120 Ah Lead-Acid |
| Overall Width | 1,020 mm |
| Turning Radius | 2,050 mm |
| Tire Type | Solid Tires |
| Travel Speed | 10 / 11 km/h |
| Gradeability | 15 / 20% |
| Drive Motor | 5 kW PMSM |
| Lift Motor | 4.5 kW PMSM |
Application Scenarios
The CPD10-D can be evaluated for:
Warehouse pallet handling
Workshop material movement
Loading and unloading areas
Order staging and production support
Pallet stacking up to the listed lift height
Indoor and covered material-handling areas
