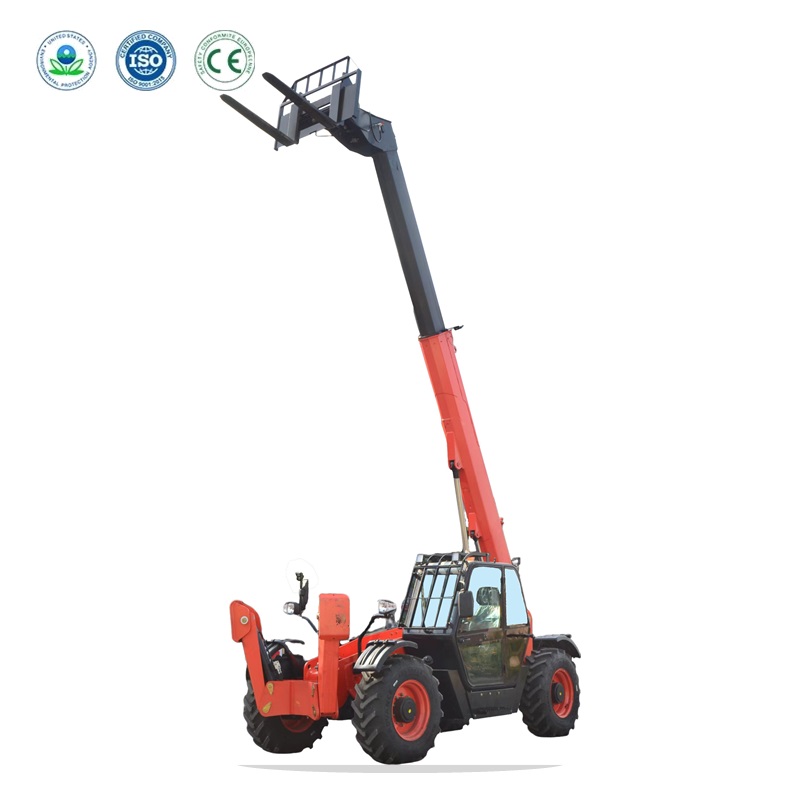

4 Ton Telehandler | 7 m Telescopic Forklift
4,000 kg Maximum Lift Capacity
Handles loads up to 4,000 kg for construction materials, palletized goods, agricultural supplies, and planned outdoor lifting tasks.
7,000 mm Lift Height
Reaches up to 7,000 mm for elevated stacking, truck loading, and high-level material placement.
4,000 mm Maximum Forward Reach
Extends the working envelope for placing loads beyond the machine’s immediate front position.
85 kW Diesel Power
The YUCHAI YCD4J22T-115 engine provides listed 85 kW rated power for regular telescopic handling operations.
The ST740 is a 4 ton telehandler, also called a telescopic forklift, developed for outdoor material handling where lifting height and forward reach are important. Its maximum lift capacity is 4,000 kg, making it suitable for planned handling tasks involving construction materials, palletized goods, agricultural supplies, equipment, and general yard loads, subject to the official load chart and operating conditions.
With a lift height of 7,000 mm and a maximum forward reach of 4,000 mm, the ST740 supports elevated stacking, truck-side loading, material placement, and reach-demanding handling tasks. Its listed reach at maximum lift height is 450 mm, which should be considered together with the official load chart, attachment configuration, load centre, and working conditions.
The ST740 combines a 4,650 mm overall length to the front carriage, 2,150 mm overall width, and 2,300 mm overall height. Its 7,800 kg unladen weight, 350 mm ground clearance, and 4,250 mm outside turning radius over tires provide key references for transport planning, access routes, site layout, and operating clearance.
The listed YUCHAI YCD4J22T-115 engine provides 85 kW rated power. The 16/70-24 semi-solid tires are specified for the model and should be evaluated together with ground conditions, load requirements, travel routes, and the intended application.
Why Choose the ST740 Telehandler?
4 Ton Maximum Lift Capacity
The ST740 lifts up to 4,000 kg, supporting planned handling of construction materials, palletized goods, farm supplies, equipment, and general outdoor loads within the official load chart.
7,000 mm Vertical Reach
The listed lift height supports elevated stacking, material placement, construction work, agricultural handling, and truck-loading tasks that require additional vertical reach.
4,000 mm Forward Reach
The maximum forward reach gives the ST740 an extended working envelope for placing materials farther from the machine, subject to the applicable load chart and operating conditions.
85 kW YUCHAI Diesel Power
The YUCHAI YCD4J22T-115 engine is listed with 85 kW rated power for regular telescopic forklift operations.
Semi-Solid Tire Configuration
The listed 16/70-24 semi-solid tires provide a defined equipment specification for application planning. Confirm suitability for the actual ground, surface, load, and travel conditions.
Outdoor Site and Transport Reference Data
The 4,650 mm length to the front carriage, 2,150 mm width, 2,300 mm height, 7,800 kg unladen weight, and 4,250 mm turning radius help buyers plan transport, access, storage, and working space.
| Parameter | Specification |
|---|---|
| Model | ST740 |
| Maximum Lift Capacity | 4,000 kg |
| Lift Height | 7,000 mm |
| Reach at Maximum Lift Height | 450 mm |
| Maximum Forward Reach | 4,000 mm |
| Unladen Weight | 7,800 kg |
| Tire Type | 16/70-24 Semi-Solid Tires |
| Outside Turning Radius over Tires | 4,250 mm |
| Overall Dimensions (L × W × H) | 4,650 × 2,150 × 2,300 mm |
| Ground Clearance | 350 mm |
| Engine Model | YUCHAI YCD4J22T-115 |
| Engine Rated Power | 85 kW |
| Pallet Fork Length | 1,220 mm |
