4.5 Ton Outdoor Diesel Forklift | Heavy-Duty Yard Handling
4,500 kg Heavy-Duty Capacity
Handle heavy pallets, building materials, and industrial loads with a 4,500 kg rated capacity at a 500 mm load centre.
Diesel Power for Outdoor Work
A four-cylinder 2,540 cc diesel engine, pneumatic tires, and a 90 L fuel tank support regular yard and site-handling operations.
3,000 mm Lift Height
The 3,000 mm lift height supports routine loading, unloading, stacking, and truck-side material handling.
Stable Yard Mobility
A 2,100 mm wheelbase, 3,050 mm turning radius, and 20% listed maximum gradeability provide a practical balance of stability and maneuverability.

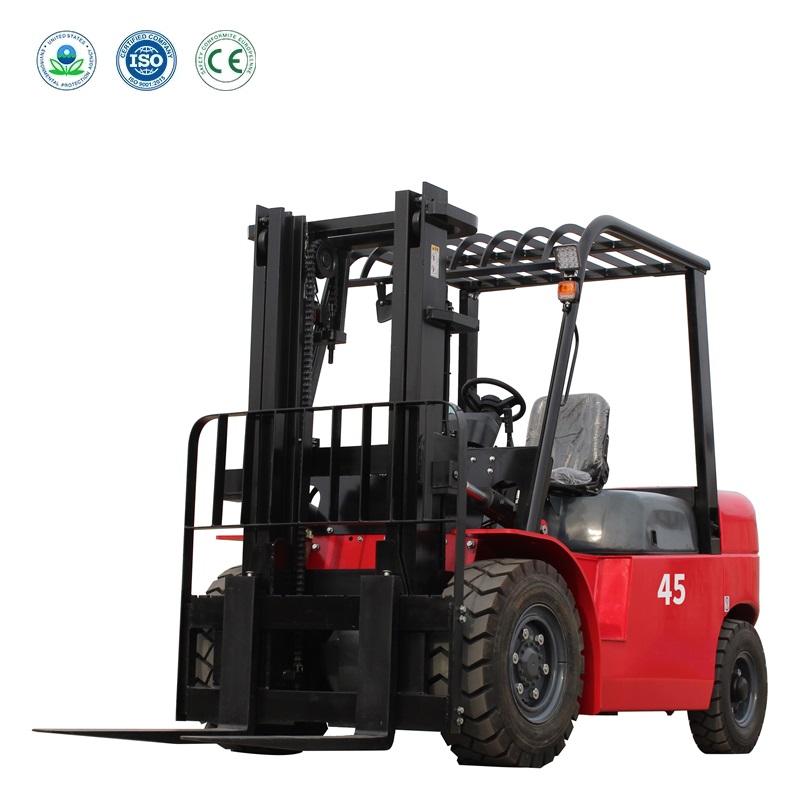

The SCC45 is a 4.5 ton outdoor diesel forklift built for companies that regularly move heavy loads across industrial yards, logistics sites, factories, mining-related work areas, and building-material storage yards. Its conventional diesel configuration provides a practical solution for loading, unloading, stacking, and transferring heavy materials.
With a 4,500 kg rated capacity at a 500 mm load centre and a 3,000 mm lift height, the SCC45 is suited to handling heavy pallets, packaged building products, industrial components, and general yard materials. A 2,540 cc four-cylinder diesel engine, 90 L fuel tank, and pneumatic tires support regular outdoor handling where strong load capacity and practical mobility are important.
Despite its higher lifting capacity, the SCC45 is designed for manageable yard operation. The 1,480 mm overall width, 2,100 mm wheelbase, and 3,050 mm turning radius provide practical maneuverability around trucks, storage areas, and loading points. With a listed 20% maximum gradeability when laden, it can handle suitable outdoor working conditions within the applicable load chart and site requirements.
Why Choose the SCC45 for Heavy Outdoor Material Handling?
4.5 Ton Mainstream Heavy-Duty Capacity
The 4,500 kg rated capacity gives industrial buyers a practical step up for heavier pallets, packaged materials, and general yard loads.
Built for Industrial and Mining Work Areas
The diesel powertrain, pneumatic tires, 175 mm minimum ground clearance at the bottom of the mast, and 20% listed maximum gradeability support suitable outdoor work conditions.
Efficient Logistics-Yard Handling
A 3,000 mm lift height, 19 km/h unloaded travel speed, and 420 mm/s laden lifting speed support regular truck loading, unloading, stacking, and short-distance transfer.
Suitable for Building-Material Storage Yards
The SCC45 provides the capacity and fork dimensions needed for suitable handling tasks involving heavy packaged building materials and industrial loads, subject to the final configuration and load chart.
Four-Cylinder Diesel Power
The 4D35G engine is listed with 2,540 cc displacement, 48 kW rated output at 2,300 rpm, and four cylinders.
Large Fuel Capacity for Regular Yard Schedules
The 90 L fuel tank supports planned outdoor work cycles; actual operating time depends on load, duty cycle, terrain, weather, and maintenance.
Practical Heavy-Forklift Dimensions
The 1,480 mm overall width, 2,100 mm wheelbase, 3,050 mm turning radius, and 6,490 kg service weight provide a clear basis for site planning and transport evaluation.
Attachment-Ready Hydraulic System
The specification sheet lists 17.5 MPa operating pressure for attachments. Confirm hydraulic flow, attachment compatibility, residual capacity, and the final operating configuration before use.
| Parameter | Specification |
|---|---|
| Model | SCC45 |
| Power Type | Diesel |
| Rated Capacity | 4,500 kg |
| Load Centre | 500 mm |
| Lift Height | 3,000 mm |
| Engine | 4D35G, 48 kW |
| Engine Displacement | 2,540 cc |
| Travel Speed | 19 km/h |
| Maximum Gradeability | 20% |
| Overall Width | 1,480 mm |
| Turning Radius | 3,050 mm |
| Service Weight | 6,490 kg |
