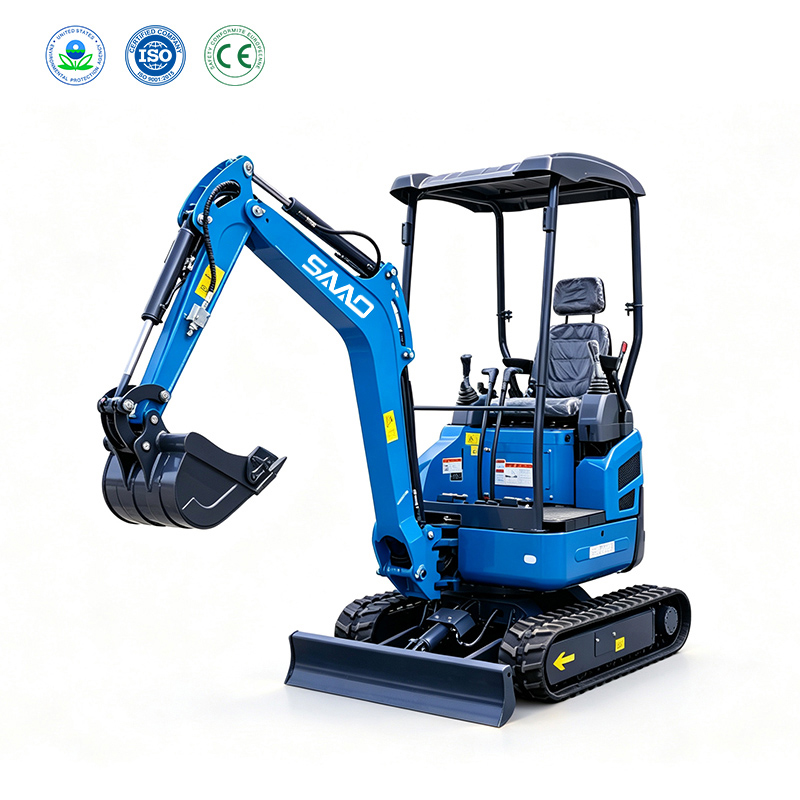

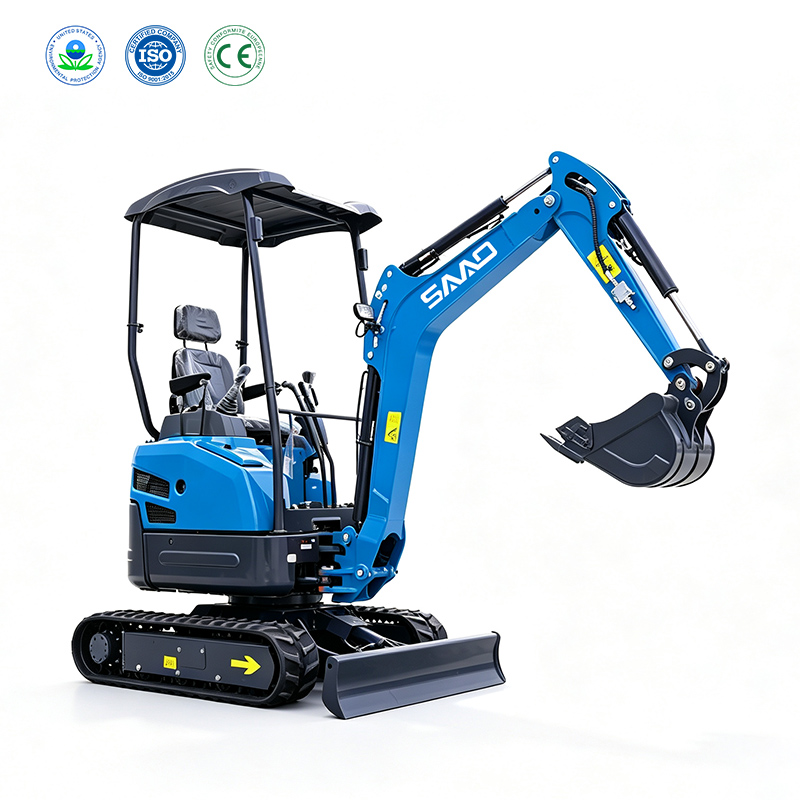

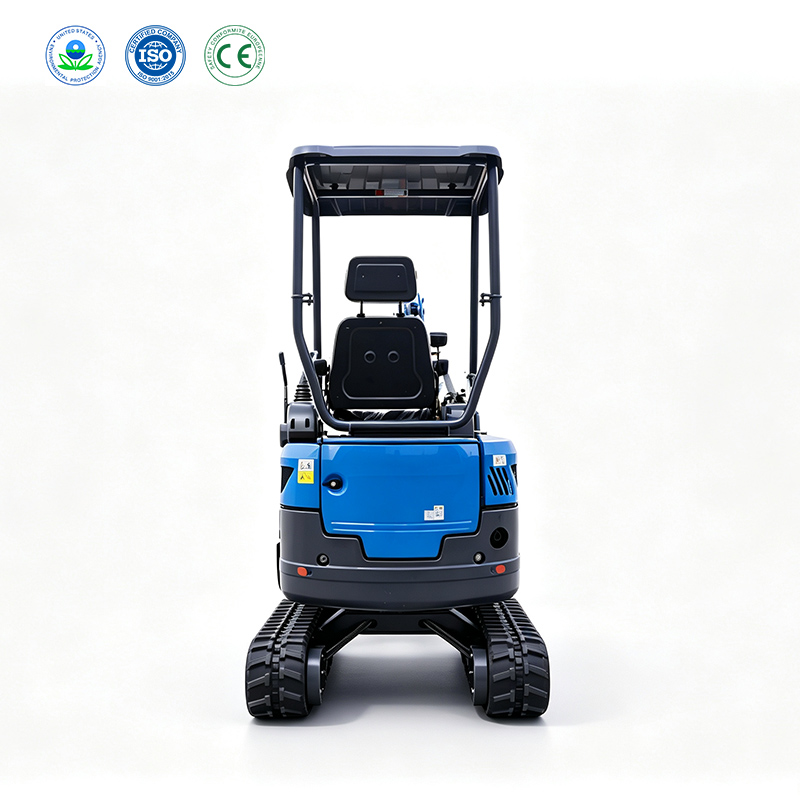

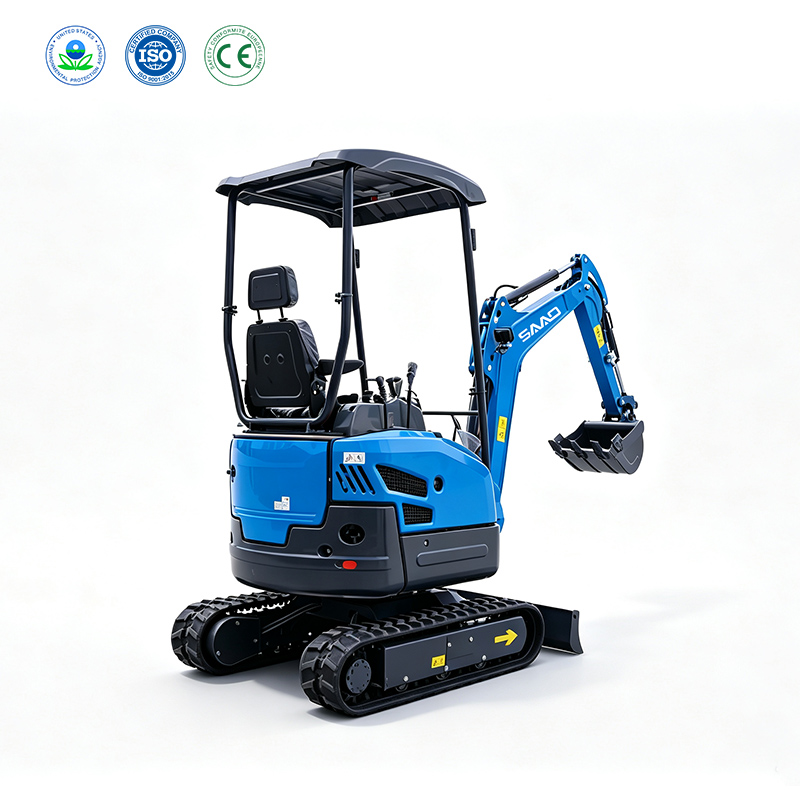

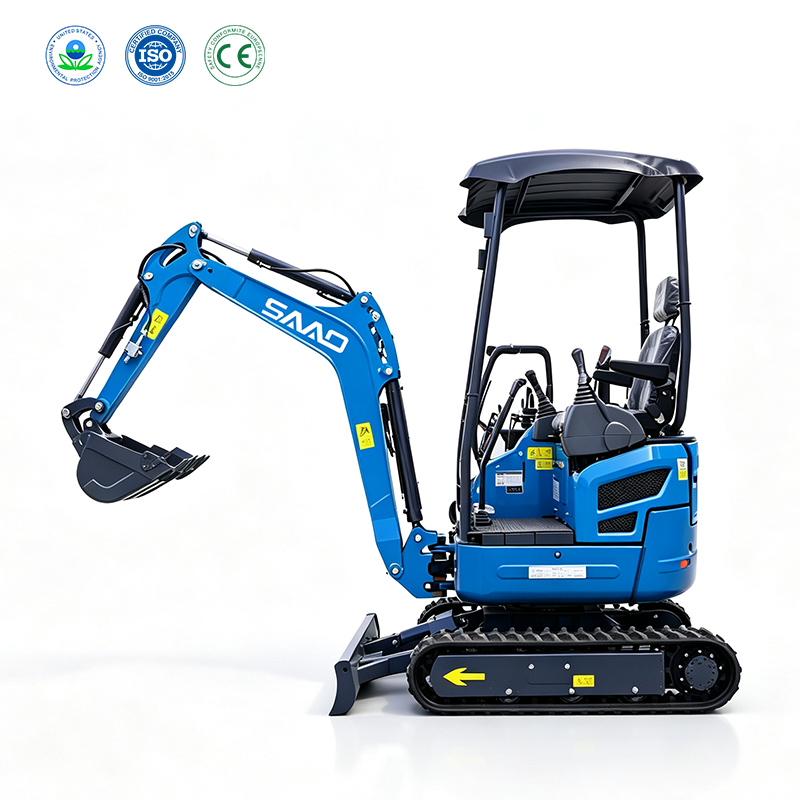

SE18
1. Exceptional Power-to-Weight Ratio
Weighing just 1,274 kg and powered by the reliable Kubota D722 engine (10.2 kW), the SAA0 delivers impressive digging force (10.8 kN) and smooth 2 km/h travel speed. Its compact 0.04 m³ bucket capacity ensures efficient work in tight spaces without sacrificing performance.
2. Superior Compact Agility
With overall dimensions of 3250×1150×2325 mm, this mini excavator navigates narrow job sites with ease. It climbs gradients up to 30° and achieves a maximum digging radius of 3,630 mm, offering outstanding maneuverability for landscaping, farming, and urban construction projects.
3. Extended Working Range & Stability
Reach a max digging depth of 2,200 mm, vertical depth of 1,900 mm, and unloading height of 1,990 mm. The 18 L fuel tank supports long operating hours, while the robust design ensures consistent performance, reducing downtime and boosting productivity on every job.

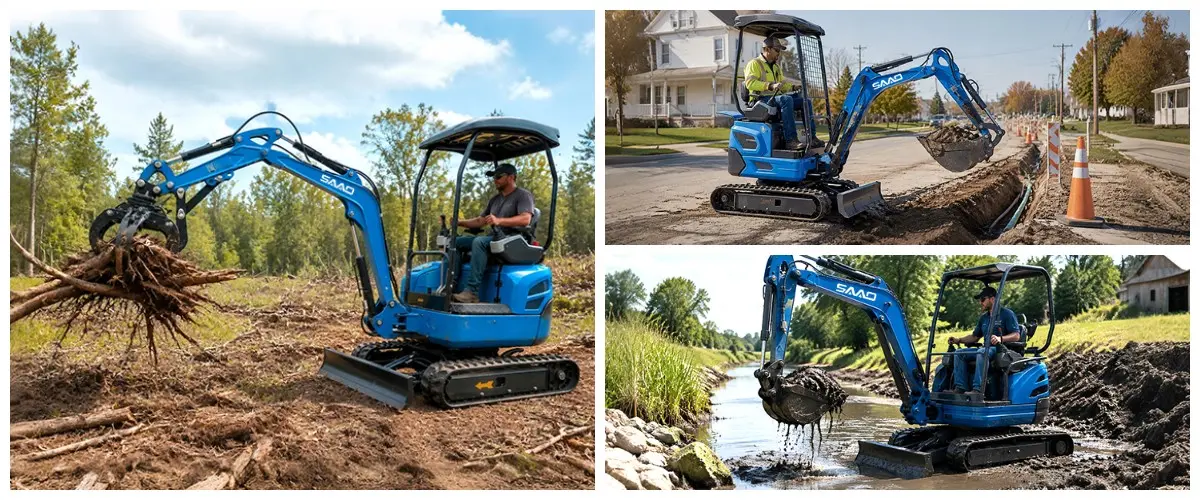

Built with a 0.04 m³ bucket as standard, the SE18 handles digging depths up to 2,200 mm and dump heights of 1,990 mm with ease—perfect for utility work, site restoration, and landscaping. Weighing just 1,274 kg, it maintains excellent balance and grip, and its fixed 2 km/h travel speed provides steady control in confined spaces. The machine comes ready with rubber tracks (steel tracks on request), a sunshade roof (enclosed cab optional), and a comprehensive tool kit. With a 2-year warranty included, its robust build and economical upkeep make it exceptionally suited for city maintenance, garden makeovers, agricultural tasks, and interior strip-out projects.
Product Specifications
| Model | SE18 |
|---|---|
| Overall Dimensions | 3250*1150*2325 |
| Machine Weight | 1274 |
| Bucket Capacity | 0.04 |
| Engine Model | Kubota |
| Engine Displacement | 0.719L |
| Engine Power | 10.2KW |
| Travel Speed | 2KM/h |
| Gradeability | 30° |
| Bucket Digging Force | 10.8KN |
| Maximum Digging Height | 2930 |
| Maximum Dumping Height | 1990 |
| Maximum Digging Depth | 2200 |
Premium Kubota Engine for Balanced Performance 1.Rated at 10.2 kW, it delivers consistent, robust power output. 2.Optimized fuel economy cuts daily operation costs significantly. 3.Low vibration and ultra-quiet operation let operators work all day without fatigue. 4.Advanced low-emission design meets environmental standards while maintaining high working efficiency. | |
Detailed Presentation
| |

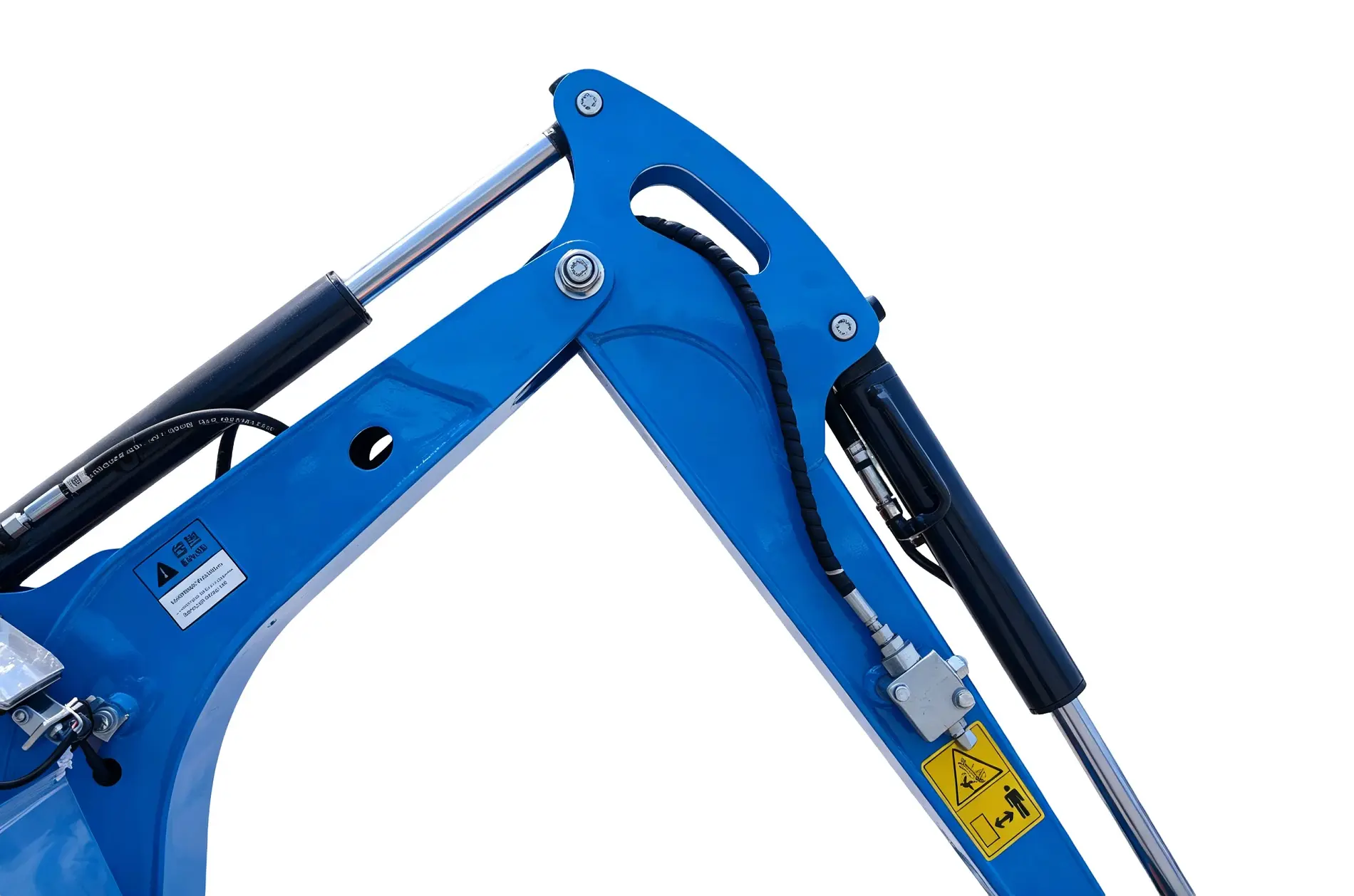

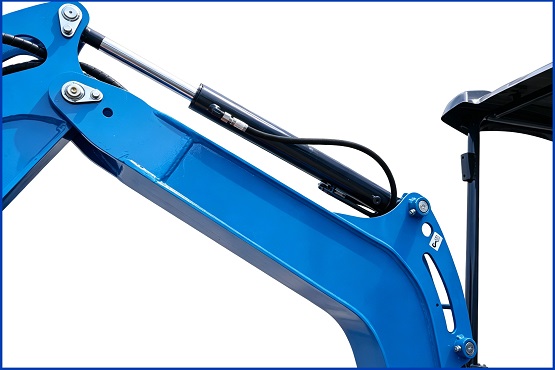

Heavy-Duty Hydraulic Boom System 1.Reinforced steel arm with anti-corrosion coating for rigid solid structure 2.Big-bore hydraulic cylinders create strong digging and lifting power 3.Wear-resistant braided hoses fixed by special brackets against rubbing damage 4.Accurate metal hydraulic connectors with tight sealing to avoid oil leaks 5.Strengthened hinge bolt design for stable linkage and low long-term failure rate | Comfortable Operator Seat 1.Cushioned seat and backrest dampen vibration for long-time comfortable operation 2.Spacious fixed armrests offer arm support and alleviate operating tiredness 3.Front-back adjustable seat base fits operators with different body figures 4.Scratch-resistant leather surface covered by protective film for brand-new shipment 5.Solid metal support bracket keeps the seat stable on rough terrains without shaking |
| |

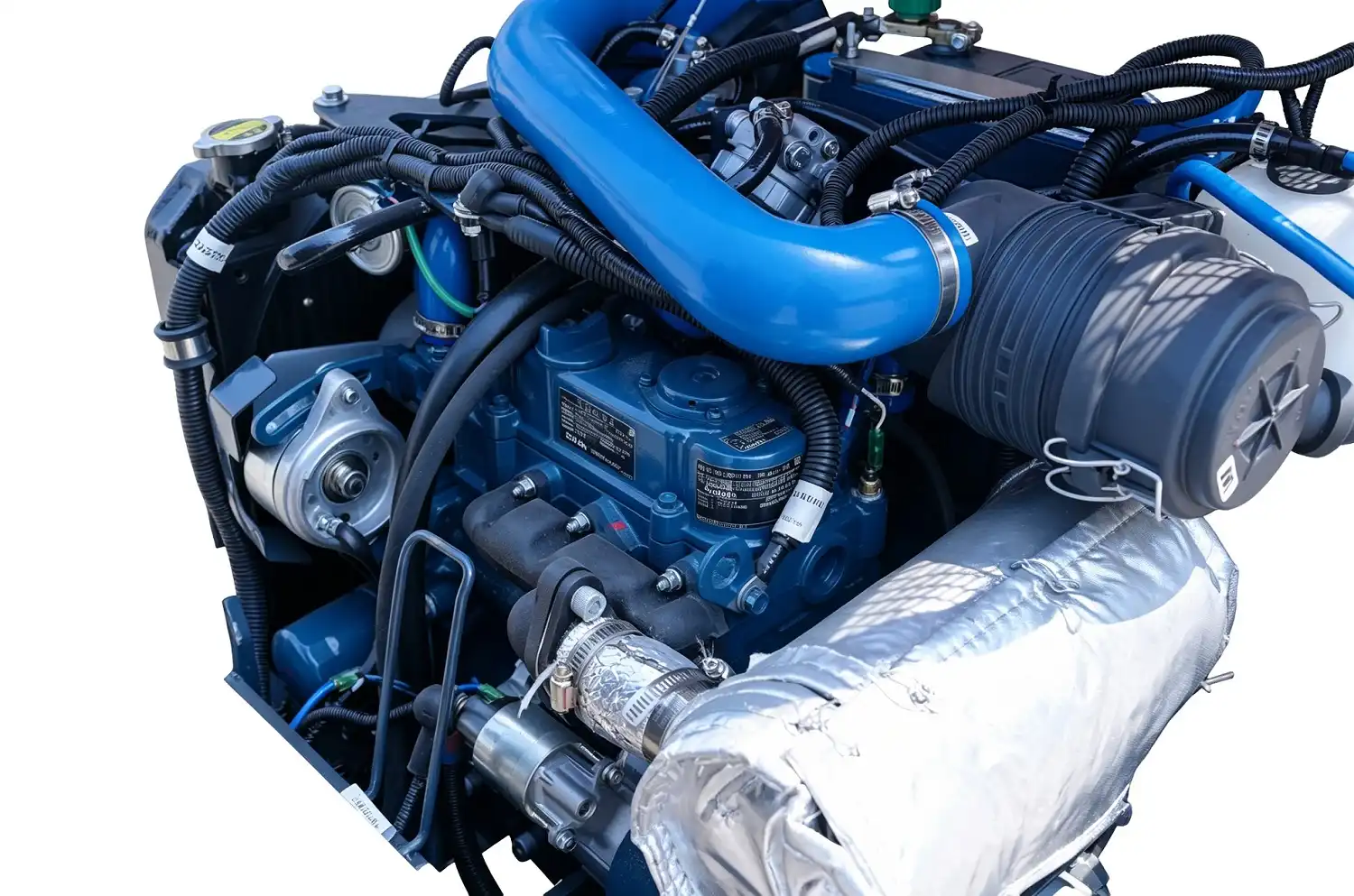

Premium Kubota Diesel Engine Assembly 1.Genuine Kubota integrated engine block with precision cast construction for outstanding structural rigidity 2.Large-caliber thick air intake pipe paired with heavy-duty air filter to intercept dust and prolong engine service lifespan 3.Tidily arranged wear-resistant braided wiring harness secured by fixing clips to prevent friction abrasion during operation 4.Thermal insulation wrapping on exhaust pipe isolates high temperature and cuts down heat radiation to surrounding parts 5.Full set of matched auxiliary parts including radiator, alternator and starter motor, pre-assembled for direct mounting on mini excavators | Heavy-Duty Swing Frame & Pivot Connection1.One-piece cast swing yoke, thickened structure to bear peak digging breakout force 2.Multi-axis kingpin hinge assembly with high-strength alloy bolts for rigid connection 3.Independent swing hydraulic cylinder delivers smooth 360° slewing movement of boom assembly 4.Precision machined friction mating surfaces to lower wear and cut maintenance frequency 5.Built-in hidden pipeline layout, effectively preventing external impact and pipe abrasion |
