Mini Excavator SE25
1. Heavy-Duty Power & Digging Force
Powered by the robust LaiDong 385 engine (18.1 kW) and weighing 2500 kg, the SE25 delivers a class-leading bucket digging force of 18.4 kN. This ensures superior penetration in hard soils, while the 28 L fuel tank supports extended operation cycles, reducing refueling stops.
2. Extended Operational Reach
Achieve a maximum digging depth of 2,500 mm, unloading height of 2,400 mm, and digging radius of 4,000 mm. These expanded parameters allow efficient work in deeper trenches and higher truck loading, making it ideal for infrastructure and drainage projects.
3. Stable Compact Design
With dimensions of 2910×1300×2250 mm and a 2 km/h travel speed, the SE25 maintains excellent stability on 30° slopes. Its 0.04 m³ bucket and vertical digging depth of 1,800 mm offer precise control in confined urban sites without compromising safety or performance.
Equipped with a 0.04m³ standard bucket, this SE25 mini excavator hits a 3300mm max digging height and 2400mm max dumping height for efficient digging, backfilling and landscaping. Weighing 2500kg, it offers reliable stability and 2KM/h travel speed with 30° climbing capacity to navigate uneven worksites. Standard features include rubber tracks (steel tracks optional), sunshade roof (enclosed cab optional upgrade) and full tool kits. With a 2-year warranty, durable body and low maintenance costs, it perfectly fits municipal works, garden remodelling, farm use and indoor demolition.
Product Specifications
| SAAO Model | SE25 |
|---|---|
| Overall Dimensions | 2910*1300*2250 |
| Machine Weight | 2500kg |
| Bucket Capacity | 0.04m³ |
| Engine Model | Kubota |
| Engine Displacement | 1.532L |
| Engine Power | 18.1KW |
| Travel Speed | 2KM/h |
| Gradeability | 30° |
| Bucket Digging Force | 18.4KN |
| Maximum Digging Height | 3300 |
| Maximum Dumping Height | 2400 |
Premium Kubota Engine for Balanced Performance 1.Constant powerful performance delivered by 18.1KW rated output 2.Optimized fuel efficiency effectively reduces daily operating expenses 3.Suppressed vibration and quiet running enable fatigue-free all-day operation 4.Advanced low-emission structure balances environmental compliance and premium working productivity | |
Detailed Presentation
|

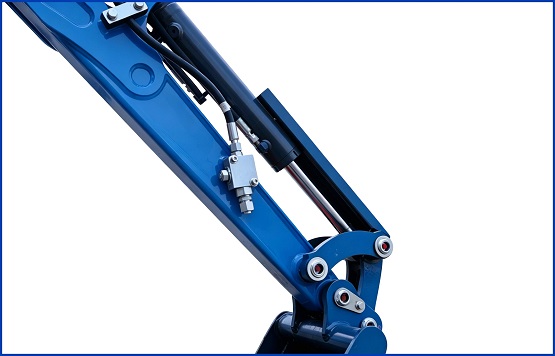

Heavy-Duty Hydraulic Boom System 1.Reinforced steel arm with anti-corrosion coating for rigid solid structure 2.Big-bore hydraulic cylinders create strong digging and lifting power 3.Wear-resistant braided hoses fixed by special brackets against rubbing damage 4.Accurate metal hydraulic connectors with tight sealing to avoid oil leaks 5.Strengthened hinge bolt design for stable linkage and low long-term failure rate |

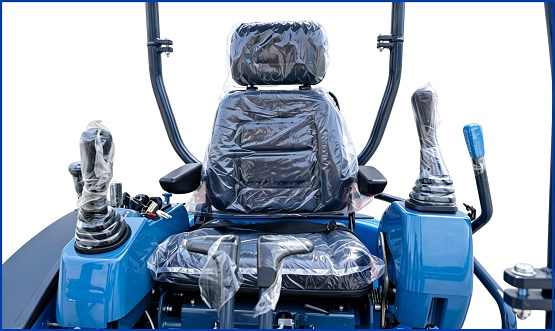

| Comfortable Operator Seat 1.Cushioned seat and backrest dampen vibration for long-time comfortable operation 2.Spacious fixed armrests offer arm support and alleviate operating tiredness 3.Front-back adjustable seat base fits operators with different body figures 4.Scratch-resistant leather surface covered by protective film for brand-new shipment 5.Solid metal support bracket keeps the seat stable on rough terrains without shaking |
|

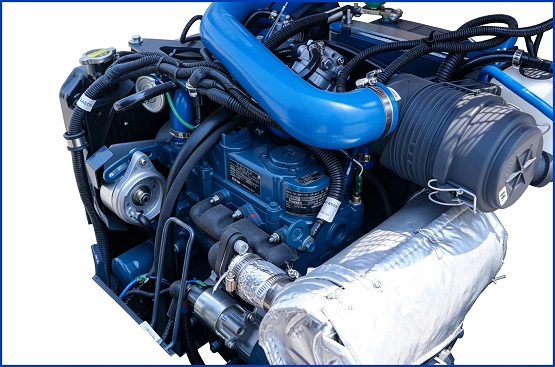

Premium Kubota Diesel Engine Assembly 1. Adopts genuine Kubota integrated engine block with precision casting, delivering high structural rigidity and stable operation. 2. Equipped with large-bore thick air intake pipe and heavy-duty air filter, effectively blocking dust and extending engine service life. 3. Neatly arranged wear-resistant braided wiring harness with fixed clips avoids friction wear during long-term operation. 4. Exhaust pipe thermal insulation layer isolates high temperature and reduces heat radiation to peripheral components. 5. Comes with full supporting accessories including radiator, alternator and starter motor, pre-assembled for direct installation on mini excavators. |

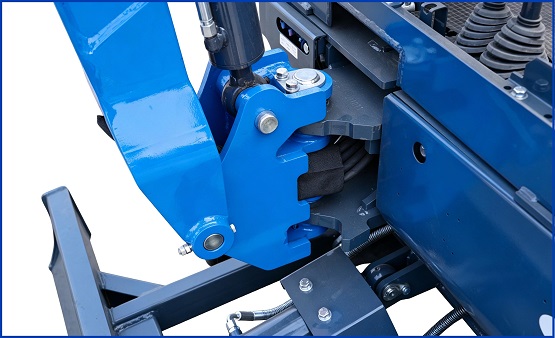

| Heavy-Duty Swing Frame & Pivot Connection 1. Features one-piece cast swing yoke with thickened structure, supporting peak digging breakout force for heavy-duty operation. 2. Adopts multi-axis kingpin hinge and high-strength alloy bolts to ensure firm, rigid overall connection. 3. Independent swing hydraulic cylinder enables smooth, full 360° boom slewing with stable performance. 4. Precisely machined mating surfaces reduce friction wear and lower daily maintenance frequency. 5. Hidden internal pipeline layout protects tubing from external impact and abrasion damage. |
