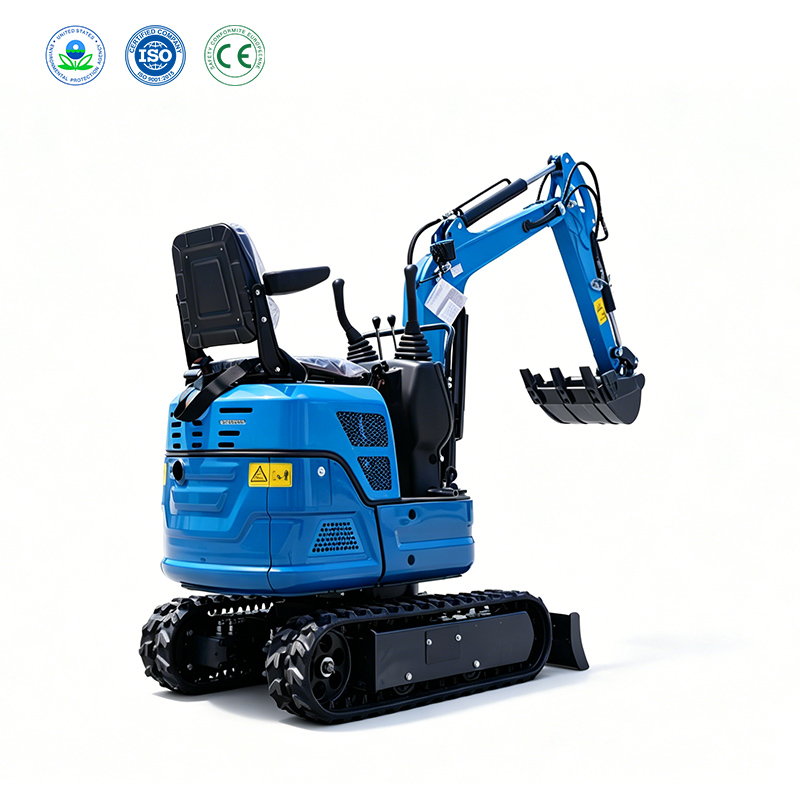

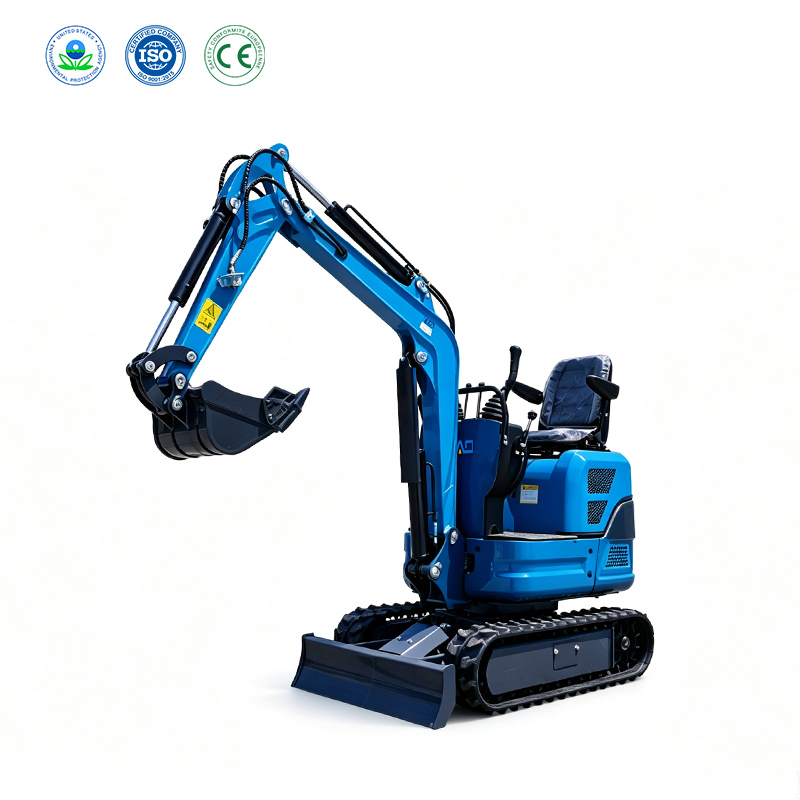

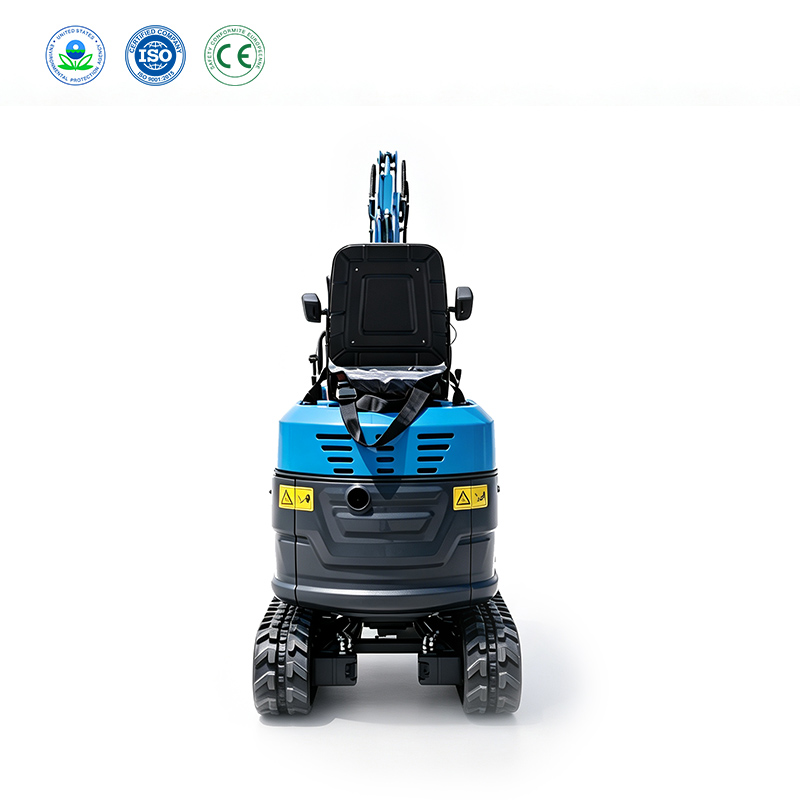

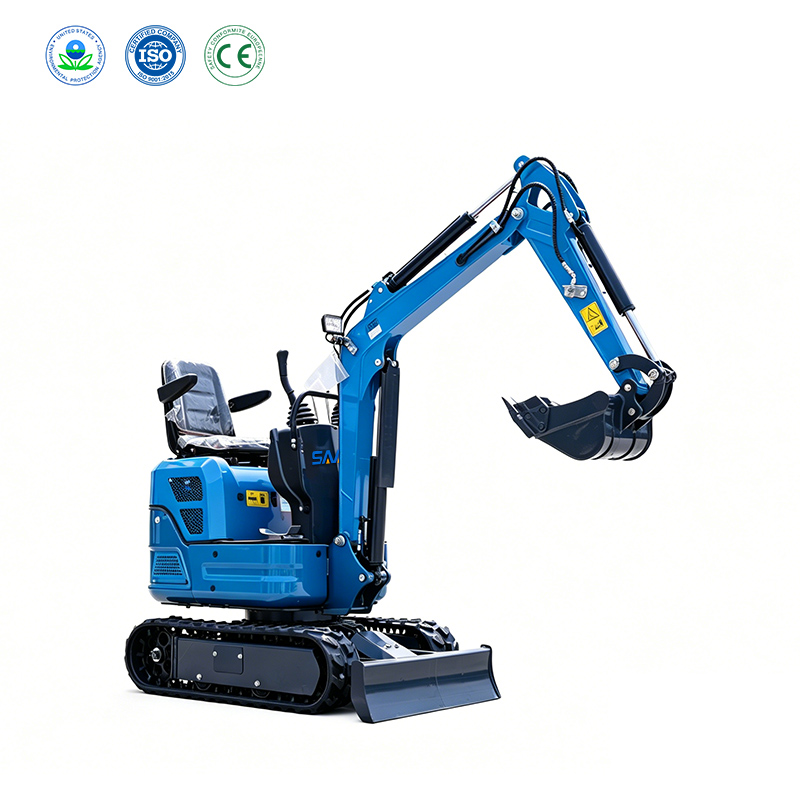

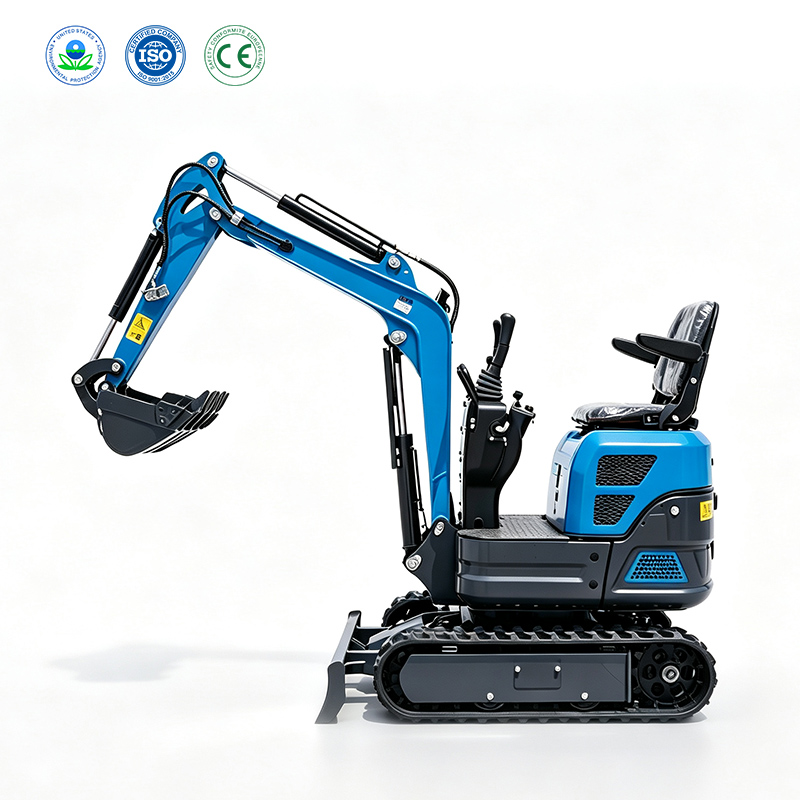

Mini Excavator SE10
Power & Reliable Performance
Powered by a Kubota 7 kW diesel engine, this compact mini excavator delivers stable power, easy maintenance, and efficient operation. The 780 kg lightweight design provides excellent stability, while the 5.5L fuel tank supports long working hours.
Compact Design, Strong Capability
Designed for narrow spaces and versatile applications, it features a 0.02 m³ bucket and 30° gradeability for excellent terrain adaptability. With a maximum digging depth of 1670mm and digging radius of 2850mm, it handles various excavation tasks with precision.
Complete Configuration & Easy Operation
Equipped with durable rubber tracks, standard tool kit, and a 2-year warranty for reliable ownership. The standard sunshade roof improves operator comfort, while an optional enclosed cab provides enhanced protection for demanding environments.
The SAAO SE10 mini excavator is compact and globally certified. Fitted with a 7 kW Kubota engine meeting CE, EPA and EURO5 standards, it works well in confined areas. It reaches a max digging depth of 1670 mm and dumping height of 1835 mm, with overall dimensions of 2600×860×1480 mm, ideal for indoor demolition, landscaping and pipeline works. Custom paint, engine and logo are available, supported by a 2-year warranty.
Compact mini excavator with small turning radius, adjustable dozer blade, detachable sunroof and full 360° rotation. Lightweight at 780 kg for easy transport, featuring low fuel consumption, stable performance and flexible operation for multiple scenarios.
Matched Kubota power and optimized hydraulics deliver efficient, cost-saving performance for heavy-duty tasks, lowering maintenance expenses and boosting mechanization efficiency.
Product Specifications
| Specification | Parameter |
|---|---|
| Model | SE10 |
| Overall Dimensions (L×W×H) | 2600×860×1480 mm |
| Operating Weight | 780 kg |
| Bucket Capacity | 0.02 m³ |
| Engine Brand | Kubota |
| Engine Displacement | 0.499 L |
| Rated Engine Power | 7 KW |
| Travel Speed | 1.8 KM/h |
| Gradeability | 30° |
| Bucket Digging Force | 6.2 KN |
| Max. Digging Height | 2580 mm |
| Max. Dumping Height | 1835 mm |
| Max. Digging Depth | 1670 mm |
Premium Kubota Engine for Balanced Performance 1.Rated power: 7kW stable strong output 2.Low fuel consumption to cut running costs 3.Low vibration & low noise for comfortable long-hour operation 4.Eco-friendly low emission design, high work efficiency guaranteed | |

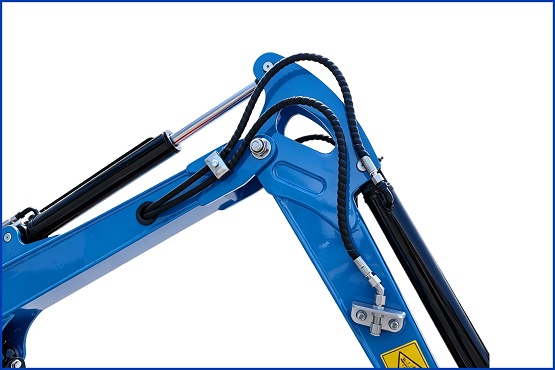

| Heavy-Duty Hydraulic Boom System 1.Thickened high-strength steel arm with anti-corrosion blue paint, high structural rigidity 2.Large-bore hydraulic cylinders for powerful digging & lifting capacity 3.Wear-resistant braided hydraulic hoses, fixed by dedicated pipe brackets to avoid abrasion 4.Precision metal hydraulic joints, good sealing performance, effectively preventing oil leakage 5.Reinforced hinged bolt structure, stable connection, low failure rate for long-hour operation |
| Comfortable Operator Seat 1.Thick padded seat cushion & backrest, effectively buffer vibration during long-hour construction work 2.Equipped with wide fixed armrests to support arms and relieve operating fatigue 3.Adjustable seat base structure, convenient to adjust the front-back position to fit different operators 4.Wear-resistant leather surface, wrapped with protective plastic film for brand-new delivery condition 5.Sturdy metal mounting bracket, firm installation without shaking under bumpy working environments |

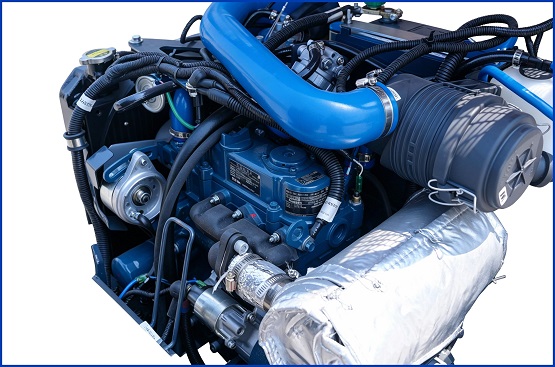

| Kubota Diesel Engine Advantages 1.Original Kubota Power – Reliable performance with strong durability and efficient operation. 2.Enhanced Dust Protection – Heavy-duty air filtration system extends engine service life. 3.Stable Electrical System – Protected wiring harness ensures safe and reliable performance. 4.Improved Heat Management – Exhaust insulation reduces heat impact on components. 5.Ready-to-Install Solution – Complete engine assembly for easy mini excavator integration. |
| Heavy-Duty Swing Frame Advantages 1.Strong Cast Structure – Thickened swing frame supports high breakout forces and heavy-duty work. 2.Stable Pivot Connection – High-strength bolts ensure secure and durable boom movement. 3.Smooth 360° Swing – Independent hydraulic cylinder delivers flexible operation. 4.Reduced Wear Design – Precision machining lowers friction and maintenance frequency. 5.Protected Pipeline System – Hidden hoses reduce impact and abrasion damage. |
