Mini Excavator SE12
Kubota Power & Reliable Operation
Powered by a Kubota 10.2 kW diesel engine, this mini excavator delivers strong power, low fuel consumption, and reliable performance for long-term operation.
Compact Design & Easy Mobility
With a 2700×750×1985 mm compact body, it easily works in narrow spaces. The 30° gradeability and dual travel speeds (2/3.5 km/h) ensure excellent terrain adaptability.
Efficient Digging Performance
Equipped with a 0.02 m³ bucket and 6.5 kN digging force, it provides efficient excavation with a 1670mm digging depth and 2775mm digging height for construction, landscaping, and various small projects.
Built for everyday excavation tasks,the mini excavator SE12 combines a 0.02 m³ bucket, 1670 mm digging depth, and 1835 mm dumping height to handle various projects with ease. The 1200 kg stable structure and dual-speed travel system ensure smooth operation on different job sites.
With rubber tracks, optional enclosed cab, complete accessories, and a 2-year warranty, it delivers a reliable and cost-effective solution for landscaping, agriculture, municipal maintenance, and indoor construction.
Product Specifications
| Specification | Parameter |
|---|---|
| Model | SE12 |
| Overall Dimensions (L×W×H) | 2700×750×1985 mm |
| Operating Weight | 1200 kg |
| Bucket Capacity | 0.02 m³ |
| Engine Brand | Kubota |
| Engine Displacement | 0.719 L |
| Rated Engine Power | 10.2 KW |
| Travel Speed (Low/High Gear) | 2/3.5 KM/h |
| Gradeability | 30° |
| Bucket Digging Force | 6.5 KN |
| Max. Digging Height | 2775 mm |
| Max. Dumping Height | 1835 mm |
| Max. Digging Depth | 1670 mm |
Premium Kubota Engine for Balanced Performance 1.Constant powerful performance delivered by 10.2 KW rated output 2.Optimized fuel efficiency effectively reduces daily operating expenses 3.Suppressed vibration and quiet running enable fatigue-free all-day operation 4.Advanced low-emission structure balances environmental compliance and premium working productivity | |
Detailed Presentation

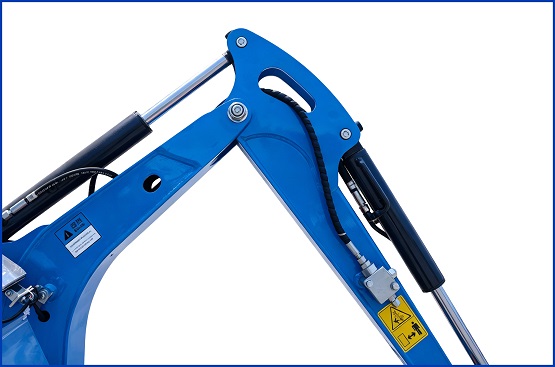

| Heavy-Duty Hydraulic Boom System 1.Reinforced steel arm with anti-corrosion coating for rigid solid structure 2.Big-bore hydraulic cylinders create strong digging and lifting power 3.Wear-resistant braided hoses fixed by special brackets against rubbing damage 4.Accurate metal hydraulic connectors with tight sealing to avoid oil leaks 5.Strengthened hinge bolt design for stable linkage and low long-term failure rate |
| Comfortable Operator Seat 1.Cushioned seat and backrest dampen vibration for long-time comfortable operation 2.Spacious fixed armrests offer arm support and alleviate operating tiredness 3.Front-back adjustable seat base fits operators with different body figures 4.Scratch-resistant leather surface covered by protective film for brand-new shipment 5.Solid metal support bracket keeps the seat stable on rough terrains without shaking |

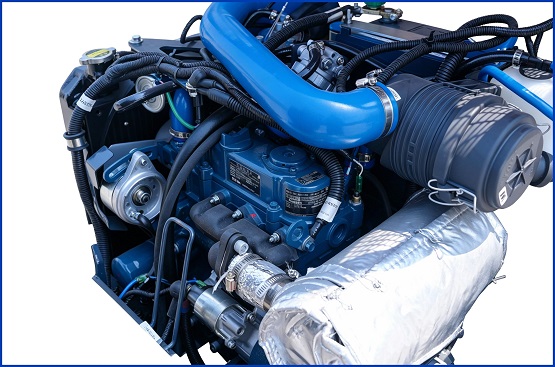

| Premium Kubota Diesel Engine Assembly 1.Genuine Kubota integrated engine block with precision cast construction for outstanding structural rigidity 2.Large intake pipe with heavy-duty air filter improves dust protection and extends engine life. 3.Wear-resistant braided wiring harness with secure clips ensures stable operation and prevents abrasion. 4.Insulated exhaust wrapping reduces heat transfer and protects surrounding components. |
| Heavy-Duty Swing Frame & Pivot Connection1.One-piece cast swing yoke, thickened structure to bear peak digging breakout force 2.Multi-axis kingpin hinge assembly with high-strength alloy bolts for rigid connection 3.Independent swing hydraulic cylinder delivers smooth 360° slewing movement of boom assembly 4.Precision machined friction mating surfaces to lower wear and cut maintenance frequency 5.Built-in hidden pipeline layout, effectively preventing external impact and pipe abrasion |
