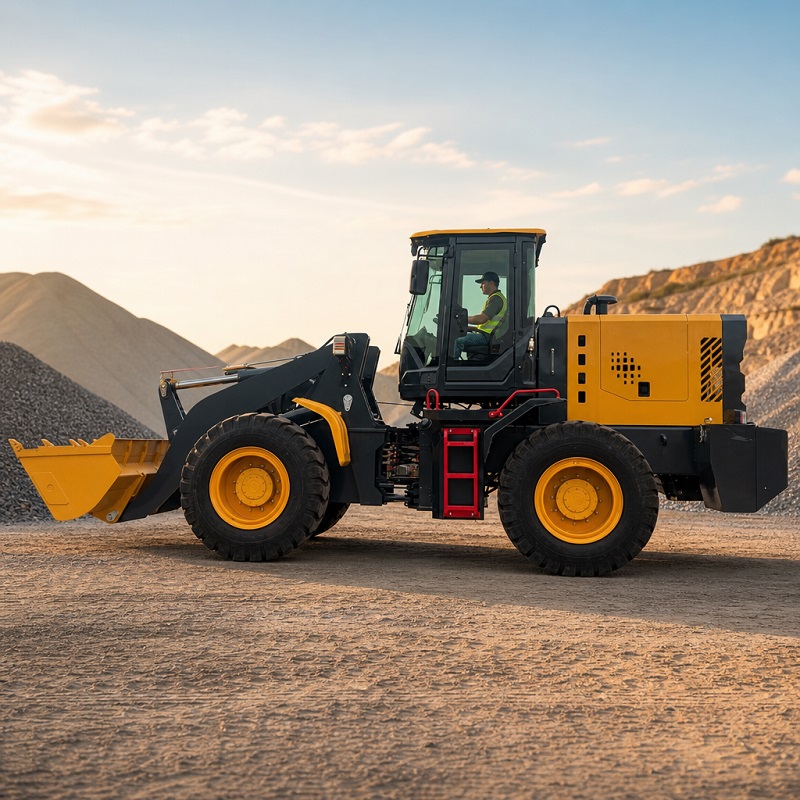

SZ930B 3 Ton Wheel Loader | 92kW 125hp High Dump Loader with 1.8m³ Bucket
3.8m Extreme Discharge Reach: The 3,800mm dump height leads the industry, allowing the SZ930B to load the tallest bulk trailers and industrial hoppers without effort.
Massive 1.8m³ High-Volume Bucket: Engineered for maximum throughput. The 1.8 cubic meter bucket allows you to move significantly more material in every pass compared to standard 3t models.
7.2-Ton Ultra-Stable Chassis: A heavy-duty 7,200kg operating weight provides the ultimate ballast for safe and stable high-reach lifting and aggressive digging.
125HP Professional Grade Power: The 92kW turbocharged engine ensures high breakout force and a rapid travel speed of up to 40km/h for elite logistical efficiency.
17.5-25 Heavy-Duty Tires: Oversized professional tires combined with articulated 4x4 drive deliver unmatched traction and stability on muddy or shifting terrain.
SZ930B: The Flagship 3-Ton Powerhouse for Extreme High-Reach Operations
Unleash the ultimate in high-volume efficiency with the SZ930B Wheel Loader—the flagship 3-ton machine engineered for professionals who need maximum reach and capacity. Standing on a massive 7.2-ton heavy-duty chassis, this loader delivers an unmatched 3,800mm dump height, making it the definitive tool for high-sided transport and industrial feeding.
Driven by a high-torque 92kW (125hp) engine, the SZ930B moves faster (40km/h) and carries more with its expansive 1.8m³ bucket. Whether you are managing large-scale recycling, heavy construction, or bulk agriculture, the SZ930B provides the stability and power to dominate the job site. Reach higher, carry more—Experience the SZ930B advantage.
Model | SZ930B |
Operating Weight | 7,200 kg |
Rated Load | 3,000 kg |
Bucket Capacity | 1.8 m³ |
Bucket Width | 2,300 mm |
Max. Dump Height | 3,800 mm |
Engine Power | 92KW(125hp) |
Wheel Drive | 4×4 |
Tire | 17.5‑25 |
Max. Travel Speed | 0‑40 km/h |
Gradeability | 30° |
Dimensions | 7,700×2,380×3,200 mm |
Application Scenarios
High-Volume Bulk Logistics: The perfect solution for coal yards, recycling centers, and wood chip handling. The 1.8m³ bucket maximizes each cycle, while the 3.8m reach clears the tallest industrial semi-trailers.
Large-Scale Industrial Agriculture: A favorite for large silage pits and grain storage facilities. The wide 2,300mm bucket ensures efficient sweeping and loading of organic bulk materials in high-volume barns.
Civil Infrastructure & Quarrying: The 7,200kg self-weight provides rock-solid stability when digging into heavy gravel or aggregate piles, making it a reliable partner for road building and quarry maintenance.
Municipal Services & Snow Management: With a top speed of 40km/h, the SZ930B can transit quickly between work zones, making it exceptionally effective for high-volume snow clearing and large-scale urban cleanup.
Technical Highlights
High-Reach Discharge System: Our specialized long-boom geometry achieves a 3,800mm dump height, providing compatibility with the largest commercial trucks used in global logistics.
Expansive 1.8m³ Capacity Bucket: Designed with reinforced base plates and a wide intake, the bucket is optimized to handle high volumes of low-to-medium density materials with zero spillage.
Heavy-Duty 7.2t Articulated Chassis: Built with high-tensile reinforced steel, the frame is designed to absorb high-impact loads while maintaining perfect balance during full-extension lifts.
125HP Performance Powerplant: The 92kW engine is tuned for a wide power band, providing immediate response for digging and high-speed travel for transit.
Elite Off-Road Package: Features oversized 17.5-25 tires for improved flotation and lower ground pressure, combined with a heavy-duty 4WD system for extreme gradeability (30°).
FAQ
Q: How does the SZ930B dump height compare to other 3-ton loaders?
A: The SZ930B offers a 3.8m (3800mm) dump height, which is significantly higher than the standard 3.2m-3.5m seen in other compact loaders. This allows it to load high-sided grain trailers and specialized recycling containers that other machines can't reach.
Q: What is the benefit of the 7.2-ton operating weight?
A: Weight is directly linked to stability. The 7,200kg chassis ensures that when you are lifting a full 3-ton load to the maximum 3.8m height, the machine remains balanced and safe, reducing the risk of tipping.
Q: Is the 1.8m³ bucket suitable for heavy construction materials?
A: While ideal for bulk materials like silage, coal, and wood chips, the 1.8m³ bucket is also reinforced for construction use. For extremely dense materials like wet clay or rock, we offer smaller, heavy-duty bucket options to maintain optimal cycle speeds.
Q: How fast can the SZ930B transit between work sites?
A: The SZ930B is one of the fastest loaders in its class, with a top travel speed of 40km/h (25mph). This makes it highly efficient for contractors who need to move the machine between different sections of a large job site or farm.
