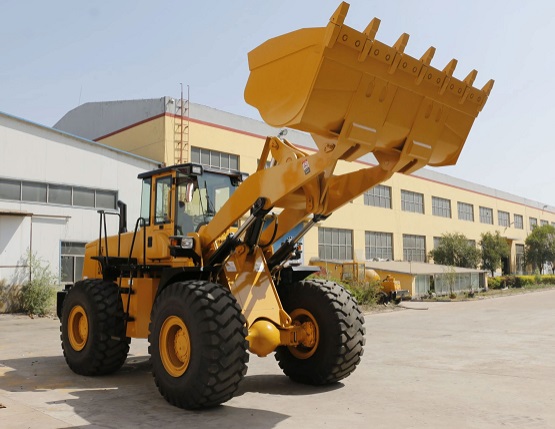

SZ960 6 Ton Heavy Duty Wheel Loader | 175kW Weichai Engine | 3.6m³ Mega Bucket
6,000kg Industrial Workhorse: A true 6-ton rated load supported by a massive 20,000kg (20t) operating weight for absolute stability in extreme conditions.
175kW Weichai WD10 Power: Driven by the legendary Weichai 238hp engine, delivering a massive 206kN breakout force and 187kN tractive force.
3.6m³ Mega-Efficiency Bucket: Optimized for high-volume handling. The 3.6 cubic meter bucket significantly cuts cycle times in bulk material logistics.
Full Hydraulic Pilot Precision: Lightweight and flexible pilot controls combined with an automatic bucket leveling function for fatigue-free, high-precision operation.
Reinforced Mining-Grade Chassis: Features a Z-type linkage and heavy-duty drive axles designed for high-intensity mining and quarrying environments.
SZ960: The 6-Ton Heavy-Duty Titan Engineered for Unstoppable Productivity
Take command of your most demanding job sites with the SZ960 Wheel Loader—a 20-ton industrial titan designed to redefine heavy-duty performance. Powered by the world-class 175kW (238hp) Weichai WD10 engine, the SZ960 delivers the raw breakout force (206kN) needed to penetrate the toughest aggregates with ease.
With a superior 6,000kg rated capacity and a massive 3.6m³ bucket, this machine is built to move more, faster. Its advanced full hydraulic pilot control and panoramic cabin with German-engineered suspension seating ensure that even the longest shifts are handled with precision and comfort. Stop compromising on power—Dominate with the SZ960.
| Model | SZ960 |
| Operating Weight | 20,000 kg |
| Rated Load | 6,000 kg |
| Bucket Capacity | 3.6 m³ |
| Bucket Width | 3,300 mm |
| Max. Dump Height | 3,150 mm |
| Engine Power | 175kw(238hp) |
| Wheel Drive | 4×4 |
| Tire | 26.5‑25 |
| Max. Travel Speed | 0‑38 km/h |
| Gradeability | 30° |
| Dimensions | 8,540×3,100×3,550 mm |
Application Scenarios
Heavy Mining & Large-Scale Quarrying: The SZ960 is at home in open-pit mines. Its 20-ton self-weight and reinforced Z-bar linkage provide the ballast and leverage required for aggressive rock excavation and primary crusher feeding.
Major Infrastructure & Earthmoving: Ideally suited for large-scale road construction and site leveling. The high-torque engine ensures peak performance while the double pump confluence system delivers remarkable fuel savings during continuous operation.
Port Logistics & Bulk Handling: The massive 3.6m³ bucket makes the SZ960 a specialist for coal, ore, and grain handling in ports. Fast cycle times and a 40km/h travel speed keep logistics chains moving at maximum throughput.
Steel Mills & Industrial Heavy Lifting: Built to handle heavy slag, scrap metal, and industrial waste. The reinforced drive axle with large gear modulus is specifically designed to endure high-load, continuous duty cycles without failure.
Technical Highlights
Legendary Weichai WD10 Powerplant: The 175kW (238hp) turbocharged engine provides massive low-end torque and high reliability, backed by a global service network.
Energy-Saving Hydraulic Innovation: The double pump confluence system and coaxial flow-amplified steering maximize energy efficiency while ensuring smooth, responsive hydraulic action.
Intelligent Operator Assistance: Features an automatic bucket leveling function and a single-dump cylinder Z-type mechanism, reducing operator workload and maximizing digging force (206kN).
German-Tech Panoramic Cabin: A vast, clear-view cabin equipped with German-engineered spring damping luxury seats, ensuring a safe, quiet, and vibration-free environment for the operator.
Heavy-Duty Drivetrain: Features a fixed-shaft power shift transmission with 4 forward/4 reverse gears and oversized 26.5-25 tires, offering unmatched traction and durability on unstable ground.
FAQ
Q: Why choose a 6-ton loader over the industry-standard 5-ton models?
A: The SZ960 provides a 20% increase in load capacity and a significantly larger 3.6m³ bucket. For large-scale operations, this translates to fewer cycles, lower fuel consumption per ton, and significantly higher daily output.
Q: How does the pilot control system improve productivity?
A: The full hydraulic pilot manipulation replaces traditional mechanical levers with light, responsive controls. This allows for "micro-movement" precision when handling delicate loads and reduces physical strain on the operator, maintaining high efficiency throughout the shift.
Q: Is the Weichai WD10 engine suitable for high-altitude or extreme heat?
A: Yes. The Weichai WD10 series is renowned for its robust cooling system and advanced fuel injection, making it highly reliable in diverse climates, from tropical ports to high-altitude mining sites.
Q: What makes the SZ960 "Heavy-Duty" compared to light-frame loaders?
A: It’s all about the chassis. The SZ960 features a reinforced long-wheelbase frame (3350mm) and an operating weight of 20,000kg. This massive steel structure ensures the machine doesn't "buck" or lose stability when lifting a full 6-ton load to its max height.
