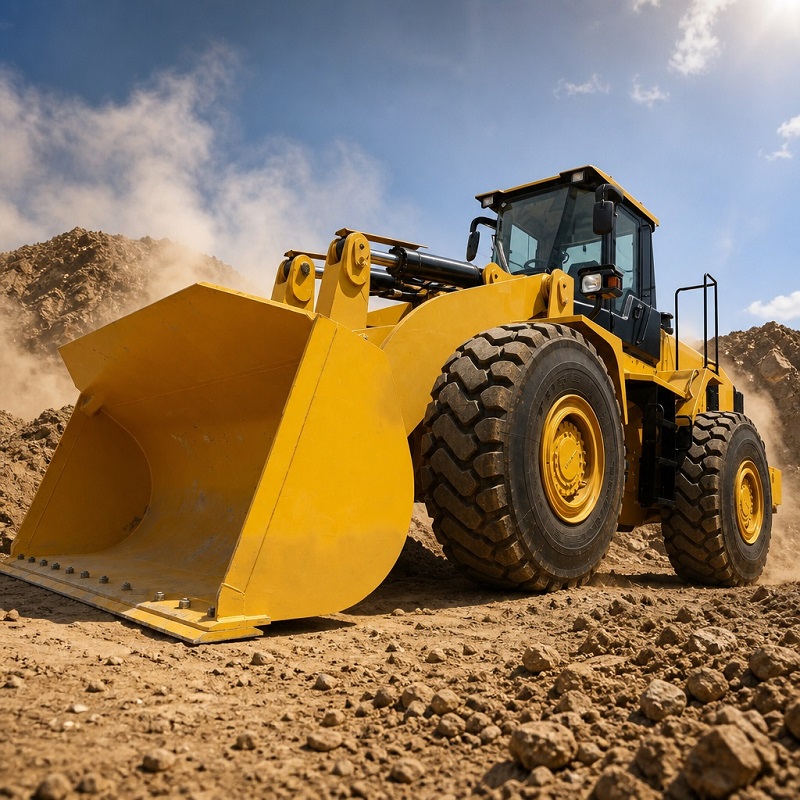

8 Ton Heavy-Duty Construction Wheel Loader SZ980: The Powerhouse for Mining & Infrastructure
Elite Powertrain: Driven by a high-output 220kW Cummins engine and a precision ZF transmission, delivering aggressive torque and rapid site relocation speeds up to 36km/h.
High-Volume Productivity: The 8,000kg rated load combined with a 260KN breakout force and a <13s total work cycle ensures maximum material handling throughput and ROI.
Superior Vertical Reach: A 3,350mm dumping height and 1,280mm reach allow for effortless loading into high-sided industrial trucks and large-capacity trailers.
Unmatched Stability: With a massive 26,000kg operating weight, the SZ980 provides an exceptionally low center of gravity for safe and steady heavy-lifting in extreme mining environments.
The SZ980 is a flagship heavy-duty wheel loader designed for large-scale industrial applications. With an 8,000 kg rated capacity and a powerful 220 kW Cummins engine, it bridges the gap between massive material handling requirements and high-speed operational efficiency, making it the premier choice for mining, quarrying, and major civil engineering projects.
High-Impact Performance Highlights
Massive Throughput Capacity: Equipped with a versatile 3.8 ~ 5.0 m³ bucket, the SZ980 moves high-density materials with fewer cycles. Combined with a 260 KN breakout force, it masters aggressive digging in high-resistance terrains where others stall.
Elite Cummins Power & ZF Transmission: Driven by the world-renowned DF CUMMINS 6LTAA8.9-C295 engine (1350 N.m torque) and a precision ZF4WG260 planetary power-shift transmission, this machine delivers consistent output and speeds up to 36 km/h for rapid site relocation.
Superior Vertical Reach: A 3,350 mm maximum dumping height and 1,280 mm dumping distance ensure effortless loading into high-sided industrial trucks and large-capacity trailers.
Heavy-Duty Stability: With a 26,000 kg (26 Ton) operating weight, the SZ980 offers an exceptionally low center of gravity and superior counterweight stability for safe and steady lifting of its full 8-ton capacity even at maximum reach.
Core Technical Specifications
| Key Parameter | Specification |
|---|---|
| Rated Operating Load | 8,000 kg (8 Ton) |
| Rated Engine Power | 220 kW (295 HP) |
| Operating Weight | 26,000 kg |
| Bucket Capacity | 3.8 ~ 5.0 m³ |
| Max. Breakout Force | 260 KN |
| Max. Dumping Height | 3,350 mm |
| Max. Travel Speed | 36 km/h |
| Tyre Size | 26.5‑25 |
Engineered for Maximum ROI & Uptime
Advanced Hydraulic System: Features a high-displacement 113 ml/r Bermke gear pump and 25 MPa system pressure, ensuring fluid, responsive attachment control and a total work cycle time of under 13 seconds.
Industrial Braking & Safety: Four-wheel air-assisted oil disc brakes provide dependable stopping power under full load, while the spiral bevel gear reduction drive axle handles extreme torque with ease.
Global OEM & Customization: Available with custom branding and technical modifications. We offer worldwide logistics to deliver your heavy-duty fleet to any major port globally.
Frequently Asked Questions (FAQ)
1. Is the engine compliant with international standards?
Yes, we provide engine configurations (including Cummins) that meet global emission requirements, ensuring legal and efficient operation in international markets.
2. Can this model handle heavy mining aggregates?
Absolutely. With its 260 KN breakout force and heavy-duty steel structure, the SZ980 is specifically engineered for high-resistance materials like rock and heavy soil.
3. What is the advantage of the ZF transmission system?
The ZF4WG260 transmission offers smoother gear shifts (4 forward/3 reverse) and higher reliability compared to standard systems, reducing maintenance costs and improving travel speed on-site.
4. How do the wet axles benefit my operation?
The Home-made Wet Axle provides superior heat dissipation and constant lubrication, extending the service life of the drive components in continuous, high-load industrial environments.
5. Do you support global shipping and local parts?
Yes. We offer secure global shipping solutions. Because we use Tier-1 components like Cummins and ZF, sourcing maintenance parts locally in most countries is simple and fast.
6. Do you support machine customization?
Yes. We offer full OEM/ODM services, allowing you to customize machine colors, technical specifications, and bucket types to fit your specific fleet requirements.
