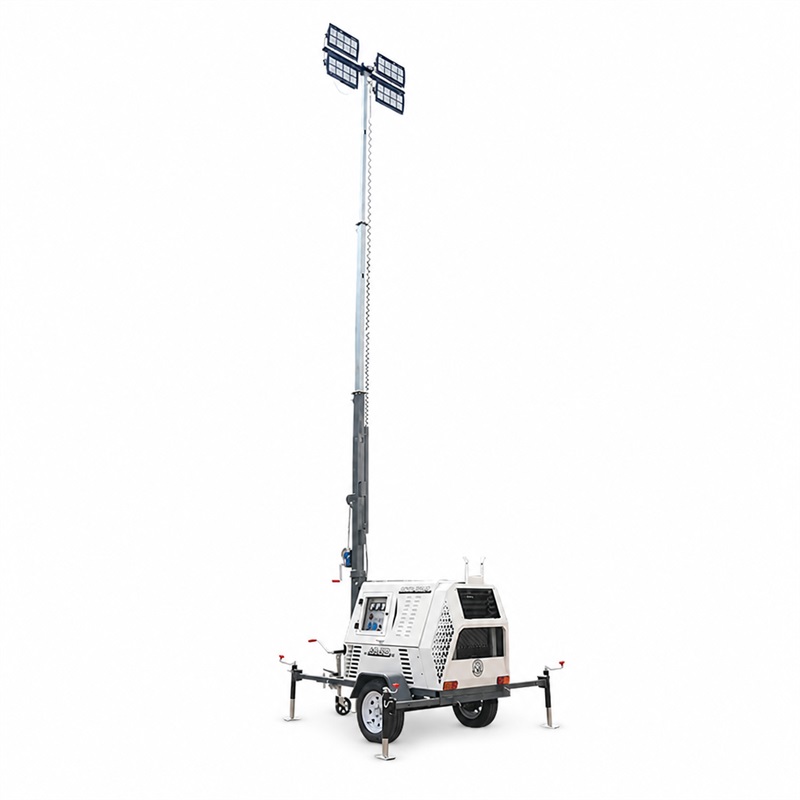

160,000 lm Diesel Mobile LED Light Tower
High-Output LED Lighting: Four 400 W LED lamps deliver a combined luminous output of 160,000 lm for mining, construction, roadwork, tunnels, emergencies, and outdoor events.
Adjustable 9m Mast: The three-section manual mast extends from approximately 4.6 m to 9 m, allowing flexible lighting-height adjustment.
Long Field Operation: A 100 L diesel fuel tank supports up to 36 hours of continuous operation under specified working conditions.
Towable and Stable Design: The retractable guide wheel, adjustable tow bar, enclosed generator cabinet, and four retractable support legs enable convenient relocation and stable outdoor setup.
This high-output diesel mobile LED light tower is designed for open-pit mining, highway and bridge construction, tunnel projects, municipal road maintenance, emergency response, large outdoor events, infrastructure projects, and equipment rental fleets.
Four 400 W LED lamps deliver a combined luminous output of 160,000 lm, providing broad-area illumination for demanding outdoor work. The three-section manual mast adjusts from approximately 4.6 m to 9 m, while the 100 L fuel tank supports up to 36 hours of continuous operation under specified operating conditions.
A retractable guide wheel, adjustable tow bar, and four retractable manual support legs support relocation and on-site setup. The enclosed generator cabinet and sealed design are intended for outdoor operations in dusty, rainy, and humid environments.
| Parameter | Specification |
|---|---|
| Product Type | Diesel Mobile LED Light Tower |
| Generator Power | 9/7.4 kW |
| Fuel Tank Capacity | 100 L |
| Rated Voltage / Frequency | 220 V / 50 Hz |
| Total Luminous Output | 160,000 lm |
| LED Lamp Configuration | 4 × 400 W |
| Mast Type | 3-Section Manual Mast |
| Mast Height | 4,600–9,000 mm |
| Operating Time | Up to 36 hours* |
| Lamp Adjustment | Manual Rotation |
| Tow System | Tow Bar with Retractable Guide Wheel |
| Support System | 4 Retractable Manual Support Legs |
| Protection Rating | IP67* |
| Overall Dimensions | 2,730 × 1,480 × 1,500 mm |
| Operating Weight | 1,000 kg |
Key Product Advantages
160,000 lm High-Output LED Lighting
Four 400 W LED lamps provide a combined luminous output of 160,000 lm for broad-area lighting on construction sites, mining areas, roads, tunnels, industrial yards, and emergency work zones.
Adjustable 9 m Manual Mast
The three-section lifting mast extends from approximately 4,600 mm to 9,000 mm. A manual winch allows the lighting height to be adjusted according to the worksite and lighting layout.
100 L Fuel Tank, Up to 36 Hours’ Operation
The large 100 L diesel fuel tank supports up to 36 hours of continuous operation under specified load and operating conditions, helping reduce refueling interruptions during long shifts and rental applications.
Sealed Outdoor Protection
The light tower uses a sealed protection design and is specified with IP67 water and dust protection. Final IP rating and test documentation should be confirmed for the complete delivered configuration.
Enclosed Low-Noise Generator Cabinet
The enclosed generator cabinet helps reduce operating noise and protect internal components. Confirm the measured noise level and applicable local noise requirements before use in urban projects.
Towable Frame with Four Support Legs
The trailer frame includes a retractable guide wheel, tow bar, and four retractable manual support legs for relocation and stable positioning at suitable worksites.
Manual Lamp-Head Adjustment
The four lamp holders can be rotated manually to direct illumination toward the required operation area.
Application Scenarios
Open-Pit Mining and Mineral Exploration
Illuminate haul roads, loading zones, maintenance areas, inspection points, and temporary mining support operations where reliable high-output lighting is required.
Highway, Bridge, and Tunnel Construction
Provide temporary lighting for night construction, bridge decks, tunnel approaches, excavation areas, and infrastructure work zones.
Municipal Road Maintenance and Urban Engineering
Support nighttime road repairs, utility maintenance, public works, and other temporary urban engineering operations. Local noise, transport, and equipment requirements should be confirmed before deployment.
Emergency Response and Disaster Recovery
The independent diesel power system and large fuel tank support temporary lighting during emergency repairs, disaster response, power interruptions, and recovery operations.
Outdoor Events and Infrastructure Projects
Provide portable lighting for large outdoor events, parking areas, temporary facilities, public-space maintenance, and infrastructure projects without relying on a fixed power supply.
Construction Equipment Rental Fleets
The towable frame, long operating time, high light output, and manual setup make the unit suitable for rental companies serving construction, roadwork, mining, and event customers.
