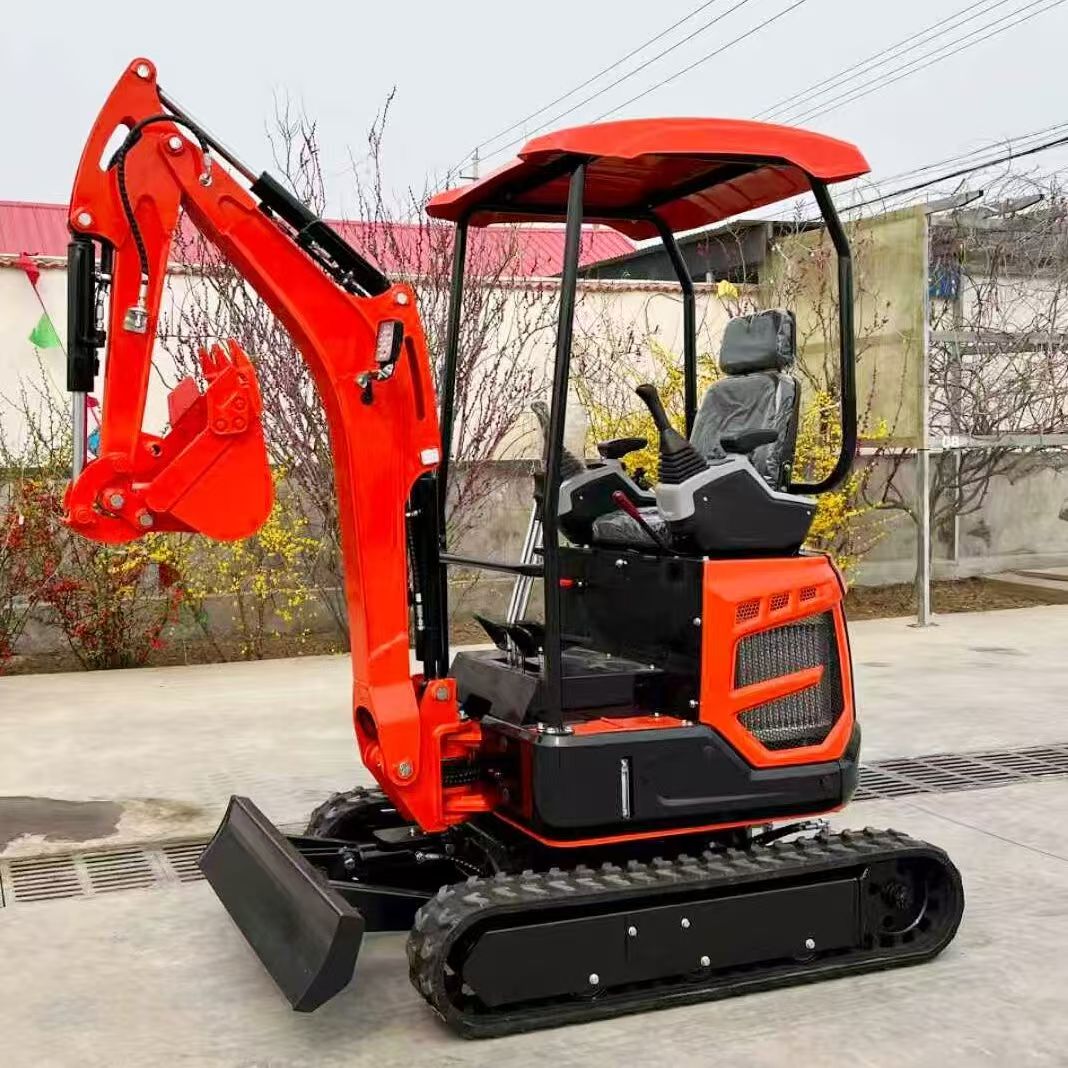

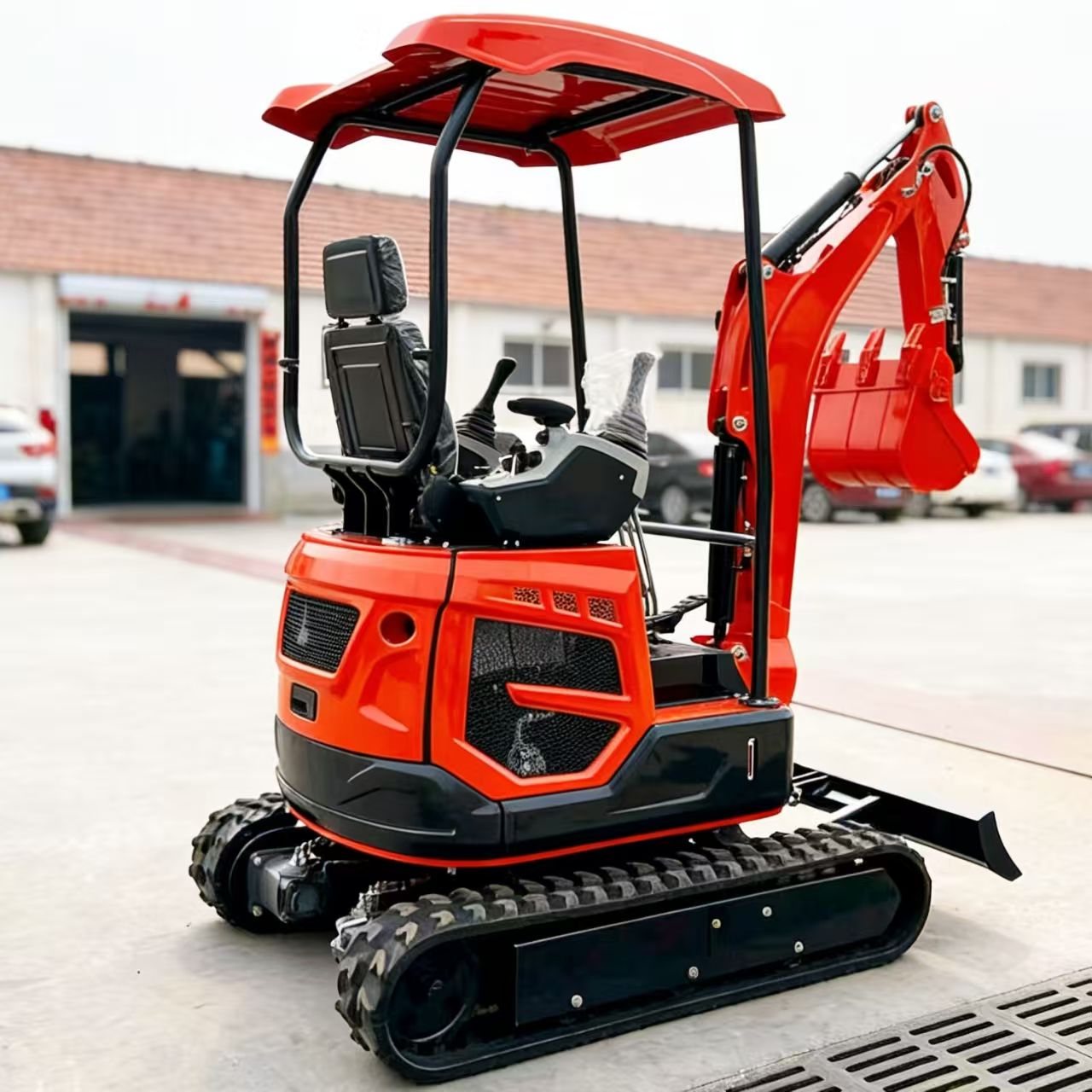

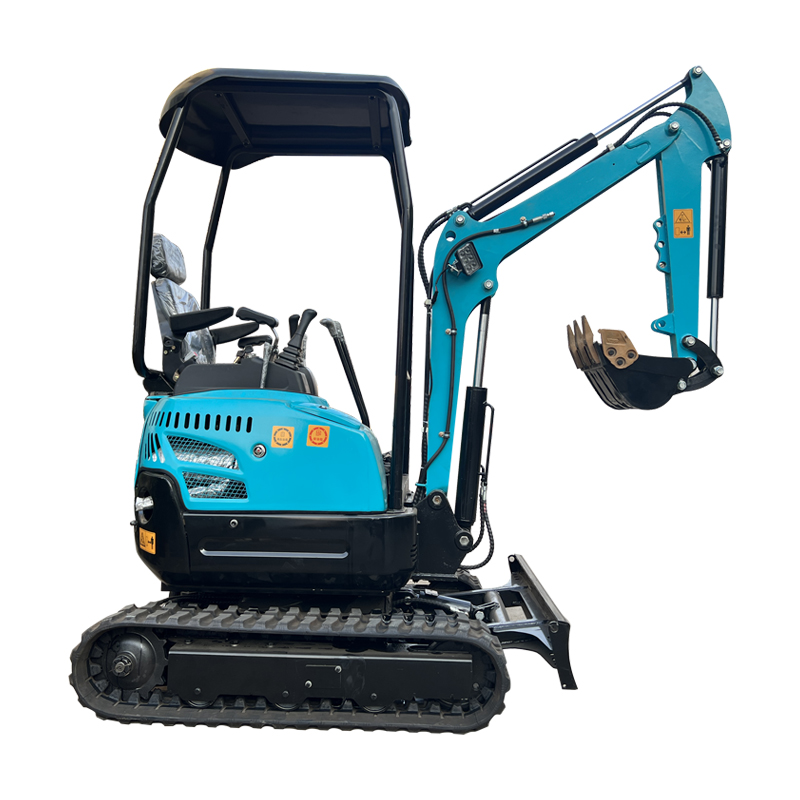

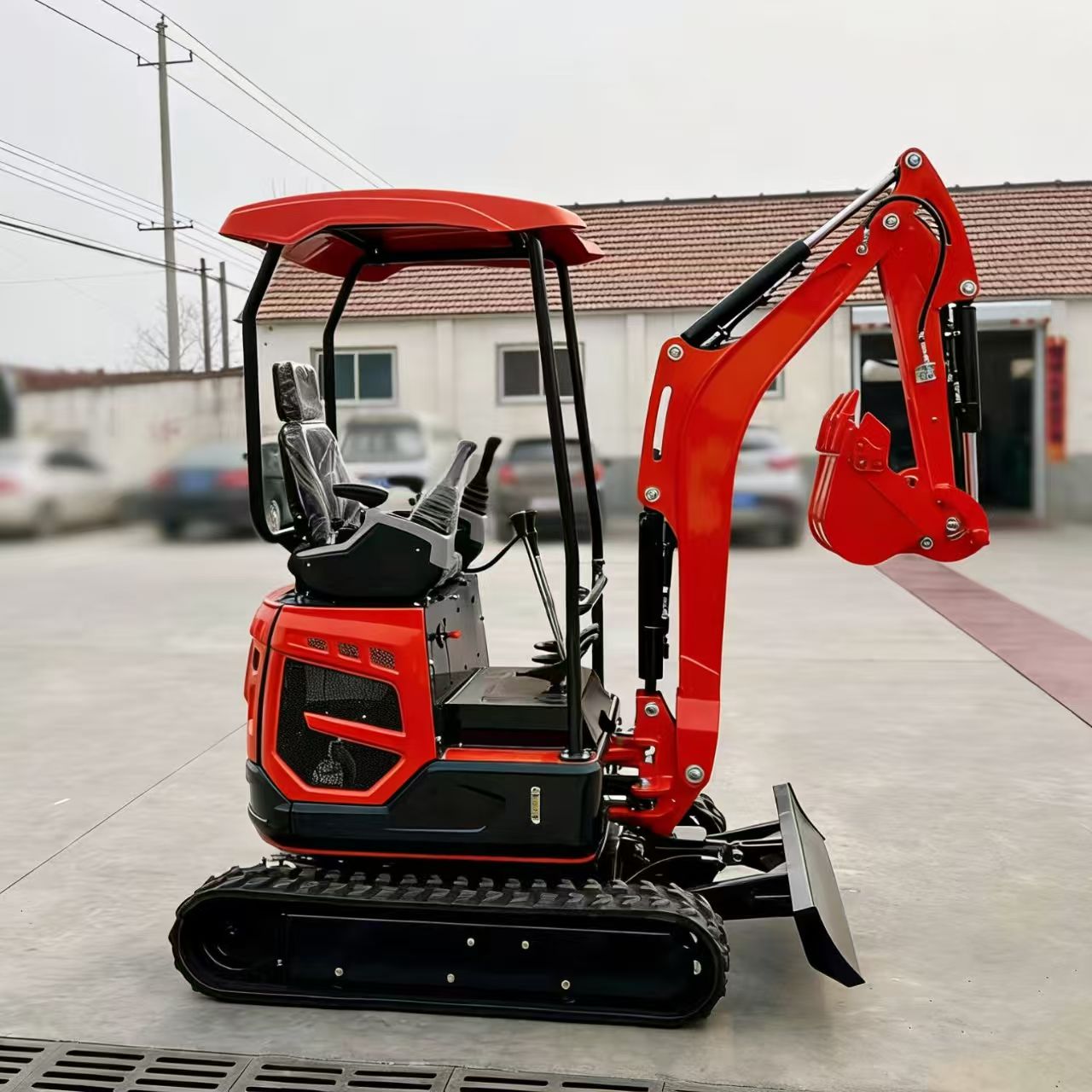

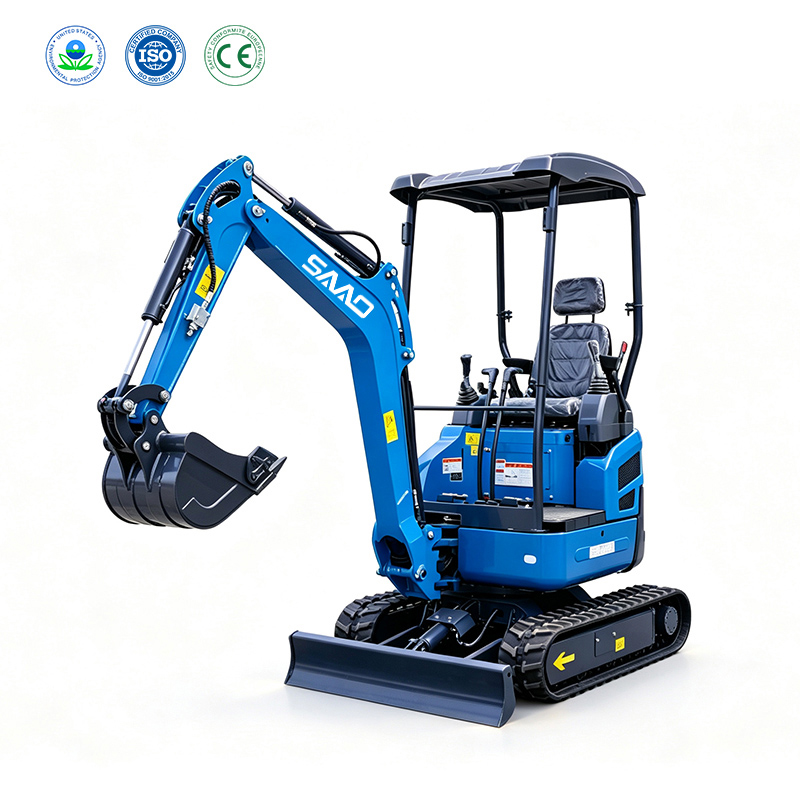

SE18N
Reliable Power: Trusted Kubota 10.2 kW water-cooled engine delivers stable, efficient performance with extended durability.
Strong Performance: 2,150 mm max digging depth and 0.045 m³ bucket enable efficient, high-capacity excavation.
Compact & Flexible: 1,050 mm width and 35° gradeability for easy access to confined spaces and uneven terrain.
Product Overview
This mini excavator is equipped with a high-performance Kubota 10.2 kW water-cooled engine, delivering stable power, low fuel consumption and outstanding durability, ensuring long-time reliable operation.
It provides excellent working performance with 2150mm maximum digging depth and 0.045m³ bucket capacity, greatly improving excavation efficiency and meeting various construction demands.
With a compact 1050mm body width, it easily works in narrow spaces. Strong 35° gradeability delivers stable performance on uneven terrain, making it flexible and adaptable for multiple working scenarios.
Model | SE18N |
Operating Weight | 1,800 kg |
Power | 10.2 kw (13.87 hp) |
Engine Brand | Kubota |
Engine Type | 3-Cylinder, Water-cooled |
Bucket Capacity | 0.045 m³ |
Bucket Width | 450 mm |
Max. Digging Depth | 2,150 mm |
Max. Vertical Digging De | 1,740 mm |
Max. Digging Height | 3,275 mm |
Max. Dumping Height | 2,310 mm |
Max. Digging Radius | 3,860 mm |
Overall Width | 1,050 mm |
Overall Dimension | 3160*1060*2380 mm |
Gradeability | 35° |
Roof / Cab | Roof (Cab Option) |
Track | Rubber (Steel Option) |
Tool Kit | Yes |
Warranty | 2 Year |
Configuration | Hydraulic Joystick, Load Sensitive System |
