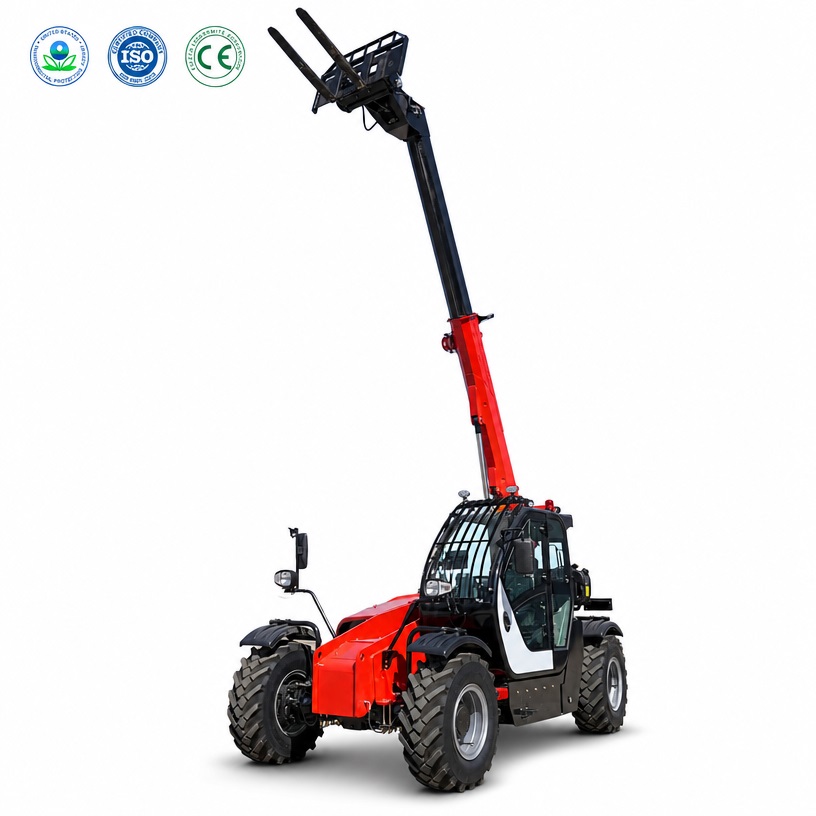

3.5 Ton Telehandler | 7 m Telescopic Forklift

The ST735 is a 3.5 ton telehandler, also known as a telescopic forklift, developed for outdoor material handling where conventional forklifts may not provide sufficient lift height, capacity, or forward reach. Its maximum lift capacity is 3,500 kg, making it suitable for planned handling tasks involving construction materials, palletized goods, agricultural supplies, equipment, and general yard loads, subject to the official load chart and operating conditions.

With a 7,000 mm lift height and a 3,600 mm maximum forward reach, the ST735 supports elevated stacking, truck-side loading, material placement, and reach-demanding work across suitable construction sites, farms, building-material yards, and logistics areas. The listed reach at maximum lift height is 450 mm; actual capacity varies with boom position, load centre, attachment, and working radius.

The ST735 combines increased lifting capacity with a long-reach telehandler configuration. Its 2,450 mm overall height, 2,150 mm overall width over the tires, 4,650 mm overall length to the front carriage, and 7,200 kg unladen weight should be considered when planning access routes, transport, storage areas, turning space, ground conditions, and attachment use. The 16/70-24 tire specification is listed for the ST735 configuration.

Why Choose the ST735 Telehandler?

3.5 Ton Maximum Lift Capacity

The ST735 lifts up to 3,500 kg for suitable construction, agricultural, logistics, and outdoor material-handling tasks.

7,000 mm Vertical Reach

The listed lift height supports elevated stacking, material placement, and truck-loading operations where additional height is required.

3,600 mm Maximum Forward Reach

The maximum forward reach helps operators position suitable loads farther from the machine, subject to the official load chart and working radius.

450 mm Reach at Maximum Lift Height

The listed reach at maximum lift height provides a reference for elevated placement planning; confirm the corresponding capacity before operation.

85 kW YUCHAI Diesel Engine

The YUCHAI YCD4J22T-115 engine is listed with 85 kW rated power for regular telescopic handling operations.

Heavy-Duty Tire Configuration

The 16/70-24 tire specification is listed for the ST735 and should be considered when evaluating traction, ground conditions, site access, and replacement planning.

Practical Site-Clearance Dimensions

The 2,450 mm overall height and 2,150 mm overall width over the tires provide key information for access, transport clearance, and operating-space planning.

Long-Reach Equipment Planning

The 4,650 mm overall length to the front carriage and 7,200 kg unladen weight should be considered when planning transport, storage, turning space, and ground-bearing requirements.
