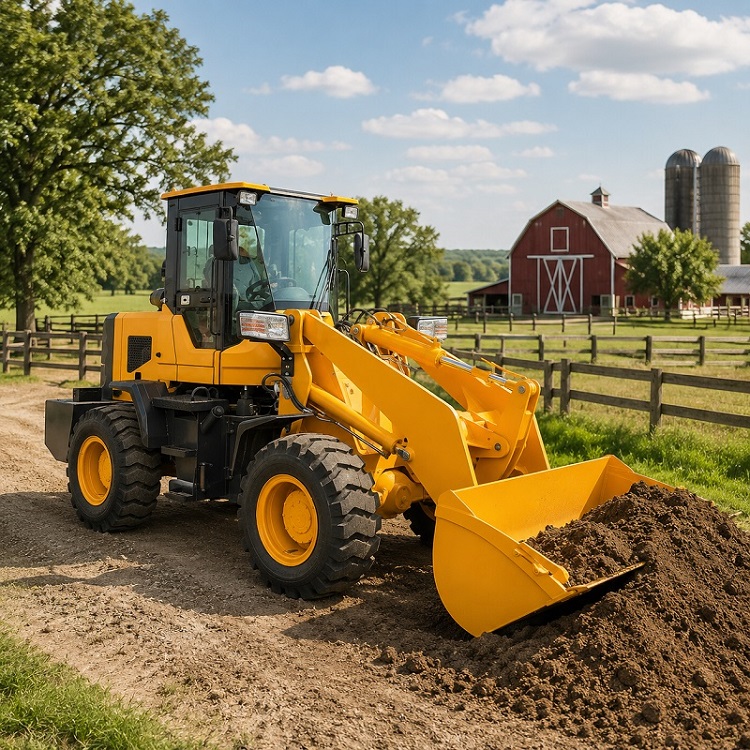

SZ925 2.5 Ton Wheel Loader | 78kW 106hp Articulated Front End Loader with 1.3m³ Bucket
2.5-Ton Heavy-Duty Payload: Engineered for high-load intensity with a massive 2,500kg rated capacity and 5.8-ton operating weight.
High-Volume 1.3m³ Bucket: Maximize throughput per cycle. The 1.3 cubic meter bucket is 30% larger than standard 1.8t models, drastically cutting loading time.
3.5m High-Lift Reach: A 3,500mm dump height ensures seamless loading into high-sided bulk trailers and industrial hoppers.
106HP Turbo Power: The 78kW engine provides superior breakout force and a top travel speed of 36km/h for fast site-to-site transit.
Industrial Articulated 4x4: Heavy-duty 16/70-20 tires combined with a reinforced articulated chassis for peak traction on soft or uneven ground.
SZ925: The Ultimate Efficiency Champion in 2.5-Ton Loading
Redefine your site productivity with the SZ925 Wheel Loader—a heavy-duty powerhouse designed to bridge the gap between compact agility and large-scale performance. With a 2,500kg rated load and a high-torque 106hp engine, the SZ925 is built to handle the most demanding material handling tasks with ease.
Featuring a massive 1.3m³ bucket and an extended 3.5m dump height, this 5.8-ton machine ensures fewer cycles and faster loading for high-sided trucks. Whether in construction, agriculture, or industrial logistics, the SZ925 delivers the speed (36km/h) and reliability you need to stay ahead of schedule. Step up to 2.5-ton precision—Step up to SZ925.
| Model | SZ925 |
| Operating Weight | 5,800 kg |
| Rated Load | 2,500 kg |
| Bucket Capacity | 1.3 m³ |
| Bucket Width | 2,000 mm |
| Max. Dump Height | 3,500 mm |
| Engine Power | 78kw (106hp) |
| Wheel Drive | 4×4 |
| Tire | 16/70-20 |
| Max. Travel Speed | 0-36 km/h |
| Gradeability | 30° |
| Dimensions | 5,650×2,000×2,750 mm |
Application Scenarios
Large-Scale Livestock & Farming: Perfect for feedlot management, large-scale silage handling, and bulk grain transport. The 1.3m³ bucket is optimized for high-volume organic materials, moving more in every pass.
Heavy Construction & Aggregates: Ideally suited for road building, quarry logistics, and moving heavy stone or gravel. The 5,800kg operating weight provides excellent stability when pushing into dense aggregate piles.
Industrial Waste & Recycling: The 3.5m dump height allows the SZ925 to discharge materials into tall industrial recycling bins and shredders without the need for additional ramps or high-lift kits.
Civil Infrastructure & Roadwork: With a top speed of 36km/h, the SZ925 can move quickly between work zones on large infrastructure projects, reducing downtime and increasing overall site ROI.
Technical Highlights
High-Output Turbocharged Engine: The 78kW (106hp) unit delivers consistent power and high torque at low RPMs, optimizing fuel efficiency during heavy digging.
Enhanced Volume Efficiency: The 1.3m³ bucket with optimized geometry reduces material spillage and increases the payload per cycle by nearly 30% compared to standard 2-ton machines.
3.5m Industry-Leading Dump Height: Engineered with a specialized boom lift system to reach 3,500mm, making it compatible with almost all commercial transport trailers.
High-Speed Transit System: A reinforced transmission allows for a 0-36km/h travel speed, making it one of the fastest loaders in the 2.5-ton class for improved logistical efficiency.
Heavy-Duty 4x4 Drivetrain: Features 16/70-20 wide-base tires for superior flotation and grip, ensuring the machine remains productive in muddy and challenging off-road conditions.
FAQ
Q: Why choose a 2.5-ton loader like the SZ925 over a standard 2-ton model?
A: The SZ925 offers a 25% increase in lift capacity and a 30% larger bucket (1.3m³). For high-volume operations, this means significant savings in fuel and time, as you can complete a 10-ton load in just 4 cycles instead of 5 or 6.
Q: Is the SZ925 stable when traveling at its top speed of 36km/h?
A: Yes. The SZ925 is built on a heavy-duty 5.8-ton chassis with a wide wheelbase and low center of gravity. This ensures stable handling and safety even when transiting between job sites at maximum speed.
Q: What truck types is the 3.5m dump height compatible with?
A: The 3,500mm discharge height is designed to clear the side walls of high-sided agricultural trailers, standard construction dump trucks, and most industrial hoppers used in recycling and manufacturing.
Q: Does the machine come with an international warranty and parts support?
A: We use globally recognized component standards for the engine and hydraulic systems. Spare parts are highly interchangeable and available through our extensive dealer network, ensuring minimal downtime for your project.
