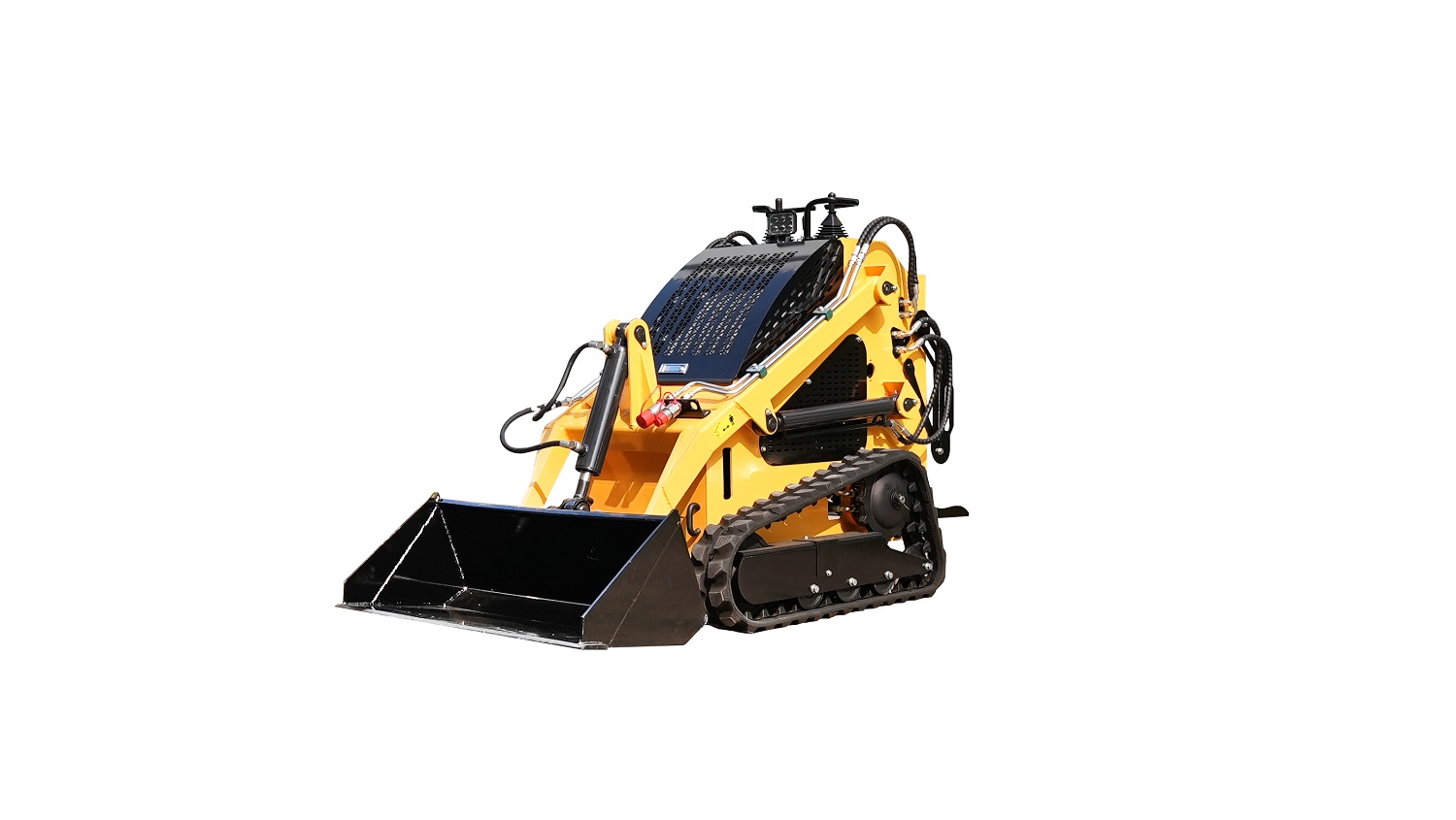

SMH-T360 Mini Track Loader | Low Ground Pressure Rubber Tracks
All-Terrain Track System
Industrial rubber tracks for ultra-low ground pressure. Dominate mud, sand, and delicate turf without leaving a trace.
Briggs & Stratton Engine
Legendary 1-cylinder power with a global service network. 17 Mpa hydraulics for high-torque attachment performance.
1,000mm Narrow Access
Slim-profile engineering to pass through standard garden gates. The ideal solution for tight-access landscaping and interior construction.
Professional Lift Reach
200kg load capacity with a 1,510mm dumping height. Perfectly sized for loading trailers and stacking materials over site walls.
Stability & Safety
A heavy-duty 800kg operating weight and 30° gradeability provide a stable platform for high-precision work on uneven ground.
The SMH-T360 is the ultimate all-terrain compact powerhouse. Featuring high-traction rubber tracks and a slim 1,000mm profile, it brings industrial strength to soft ground and narrow residential sites.
Powered by a globally supported Briggs & Stratton engine, it delivers a 200kg rated load and 17 Mpa of hydraulic pressure within a stable 800kg frame. With a 1,510mm dumping height and 30° gradeability, the T360 replaces high-intensity manual labor with precision automated performance. It is the professional choice for low-impact, high-output operations.
| Parameter | Specification |
|---|---|
| Model | SMH‑T360 |
| Walking Type | Rubber Track |
| Rated Load | 200 KG |
| Bucket Capacity | 0.12 m³ |
| Travel Speed | 0‑6 km/h |
| Hydraulic Pressure | 17 Mpa |
| Gradeability | 30 ° |
| Operating Weight | 800 KG |
| Brand | RATO/KOOP/Briggs & Stratton |
| Type | 1‑cylinder, 4‑stroke |
| Fuel | Gasoline/Diesel/Gasoline |
| Max. Working Height | 2450 mm |
| Max. Dumping Height | 1510 mm |
| Max. Dumping Distance | 450 mm |
| Length With Bucket | 2100 mm |
| Machine Width | 1000 mm |
【Traction: The Rubber Track Advantage】
Superior Flotation: The industrial rubber track system distributes the 800kg weight evenly, allowing for operation on wet turf, mud, and sand without leaving deep ruts.
30° Slope Mastery: The low center of gravity combined with track-grip allows the T360 to handle steep inclines and uneven terrain with rock-solid stability.
Zero-Turn Agility: Navigate tight 1,000mm wide spaces with high-precision track steering, perfect for indoor demolition or backyard landscaping.
【Power: Globally Proven Engine Reliability】
Briggs & Stratton Muscle: Equipped with the legendary 1-cylinder gasoline engine, ensuring easy maintenance and parts availability in over 100 countries.
17 Mpa Hydraulic Force: Optimized hydraulic pressure enables the use of various professional attachments, from augers to trenchers.
Rapid Cold Start: Professional-grade ignition systems ensure the T360 is ready to work in sub-zero winter mornings or high-heat summer afternoons.
【Efficiency: Professional-Grade Loading】
1,510mm Dump Height: Engineered for real-world utility, easily clearing garden walls or loading waste into standard 1-ton pickup trucks and trailers.
200kg Rated Capacity: Precision-balanced to handle dense materials like gravel, mulch, or stone while maintaining a 0-6 km/h travel speed.
0.12m³ High-Volume Bucket: Optimized bucket geometry ensures full loads every time, reducing cycle times and increasing job site ROI.
FAQ
Q: Can the SMH-T360 work on wet or delicate turf? A: Yes. The SMH-T360 is engineered with industrial rubber tracks that provide superior flotation and ultra-low ground pressure. This allows the 800kg machine to dominate mud and sand without damaging expensive landscaping or pavers.
Q: What is the maximum slope the SMH-T360 can handle? A: Thanks to its low center of gravity and high-traction tracks, the SMH-T360 boasts a 30° gradeability, making it one of the most stable mini track loaders for sloped terrain and uneven job sites.
Q: What is the dumping capability of the SMH-T360 for loading trucks? A: The SMH-T360 features a 1,510mm maximum dumping height, precision-engineered for real-world utility. This lift reach allows the 200kg rated load capacity to easily clear garden walls and load waste or materials directly into standard 1-ton pickup trucks and high-sided trailers, significantly reducing manual handling time.
Q: Does the SMH-T360 offer reliable power for heavy-duty attachments? A: Yes. Powered by a globally supported Briggs & Stratton engine, the T360 delivers an elite 17 Mpa of hydraulic pressure. This high-torque output ensures the machine can efficiently drive industrial attachments—such as augers, trenchers, and hydraulic breakers—providing the mechanical muscle required for complex landscaping and trenching projects.
