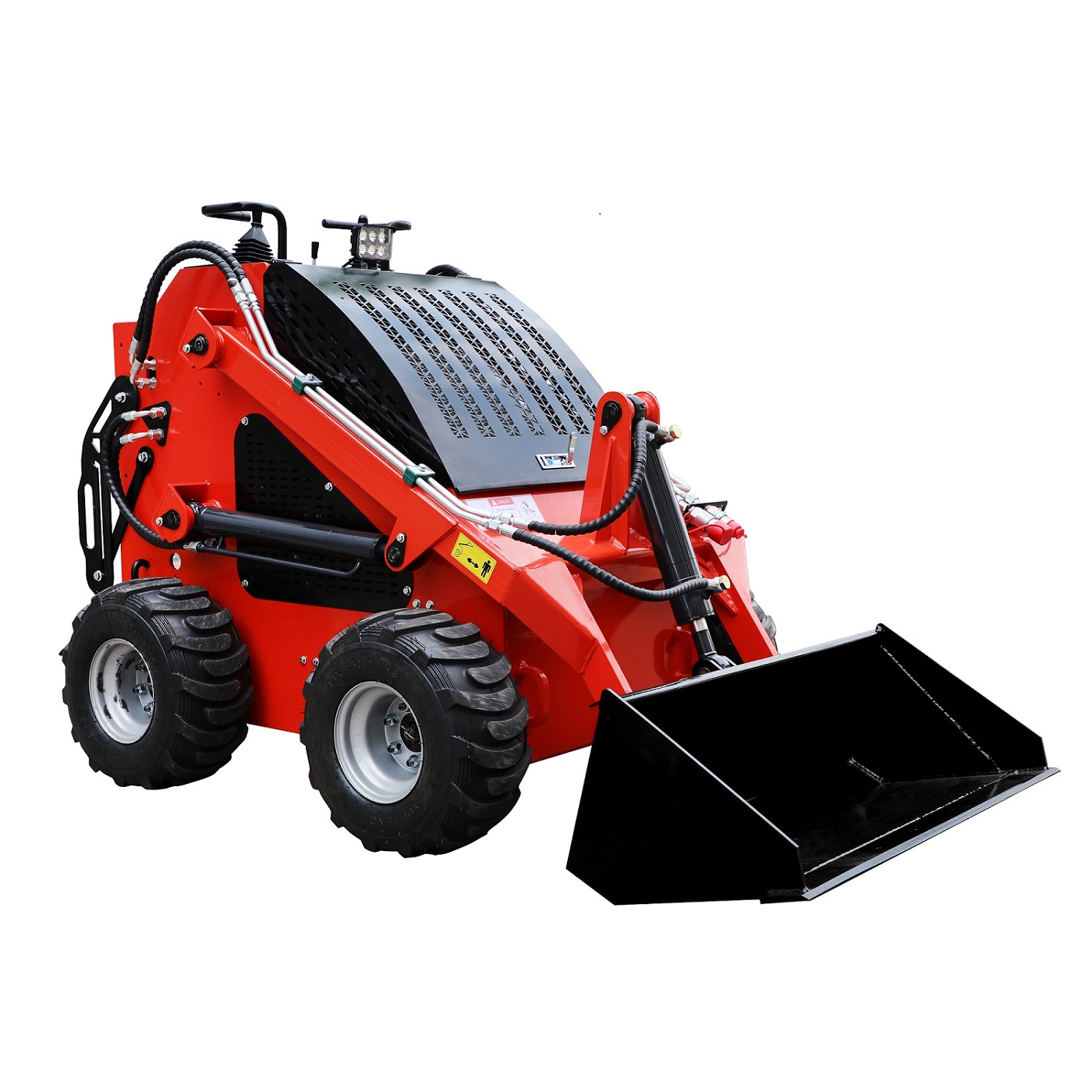

SMH-S460 300kg Mini Skid Steer Loader | 21 Mpa High-Pressure Hydraulics
Legendary V-Twin Power: Built with a 2-cylinder Briggs & Stratton engine for maximum torque and a global service backup.
Industrial Breakout Force: Professional 21 Mpa hydraulic pressure handles tough digging and 300kg heavy lifting with ease.
Narrow-Access Productivity: At 1,100mm wide, it delivers high-capacity performance in spaces where full-sized loaders cannot operate.
Stable Multi-Terrain 4x4: An 900kg operating weight and wide-base tires provide elite flotation and stability on 30° gradients.
Superior ROI: Combines "Smart" ergonomic controls with high drawbar power to replace manual labor and accelerate project timelines.
The SMH-S460 is an industrial-strength mini skid steer delivering heavy-duty power in a slim 1,100mm profile. Precision-engineered for narrow commercial and residential sites, it replaces grueling manual labor with high-torque automated performance.
Driven by a legendary 2-cylinder Briggs & Stratton engine, it boasts a massive 300kg rated load and an elite 21 Mpa hydraulic pressure within a reinforced 900kg frame. Featuring a 1,510mm dumping height and all-terrain 4x4 agility, the S460 masters everything from industrial site prep to large-scale landscaping. It is the ultimate productivity multiplier—combining V-Twin muscle, professional breakout force, and superior accessibility.
| Parameter | Specification |
|---|---|
| Model | SMH-S460 |
| Walking Type | Wheel Tires |
| Rated Load | 300 kg |
| Bucket Capacity | 0.12 m³ |
| Travel Speed | 0–6 km/h |
| Hydraulic Pressure | 21 MPa |
| Gradeability | 30° |
| Operating Weight | 900 kg |
| Engine Brand | RATO / KOOP / Briggs & Stratton |
| Engine Type | 2-Cylinder, 4-Stroke |
| Fuel | Gasoline / Diesel |
| Max. Working Height | 2450 mm |
| Max. Dumping Height | 1510 mm |
| Max. Dumping Distance | 450 mm |
| Length with Bucket | 2206 mm |
| Machine Width | 1100 mm |
Industrial Strength, Compact Precision
Elite V-Twin Performance
Driven by a 2-cylinder Briggs & Stratton engine and high-pressure 21 Mpa hydraulics. Experience 20% more breakout force and stable torque for heavy digging in any climate.
Massive 300kg Payload
Industrial-grade muscle delivering a 300kg rated load and 1,510mm dumping height. Optimized for loading high-sided trailers and handling heavy-duty debris.
Professional Radial Lift
Engineered with a radial lift path for superior mid-lift reach. Perfect for stacking pallets and moving materials over garden walls with surgical precision.
Stable "Wide-Track" Design
At 1,100mm wide with a 900kg operating weight, it offers rock-solid balance and superior flotation, protecting turf while dominating 30° slopes.
Intuitive Smart Controls
Ergonomic design ensures high-precision maneuverability in confined indoor sites, significantly reducing operator fatigue and project timelines.
FAQ
Q: What is the main difference between the SMH-S460 and standard micro loaders?
A: The SMH-S460 features a 2-cylinder Briggs & Stratton engine and a high-performance 21 Mpa hydraulic system. It offers a 300kg rated load, providing industrial-level muscle in a frame just 1.1 meters wide.
Q: Is the 21 Mpa hydraulic pressure safe for attachments?
A: Yes. The system is designed to provide high-flow, high-pressure output compatible with professional-grade augers, trenchers, and high-volume buckets, maximizing the machine's versatility.
Q: Can it be serviced in my country?
A: By choosing the Briggs & Stratton engine option, you have access to a global authorized service network across North America, Europe, and Australia for both parts and maintenance.
Q: How does the "radial lift" benefit my project?
A: Radial lift provides an excellent lift arc for digging and mid-range loading. Combined with a 1,510mm dump height, it makes the S460 ideal for residential landscaping and interior demolition tasks.
