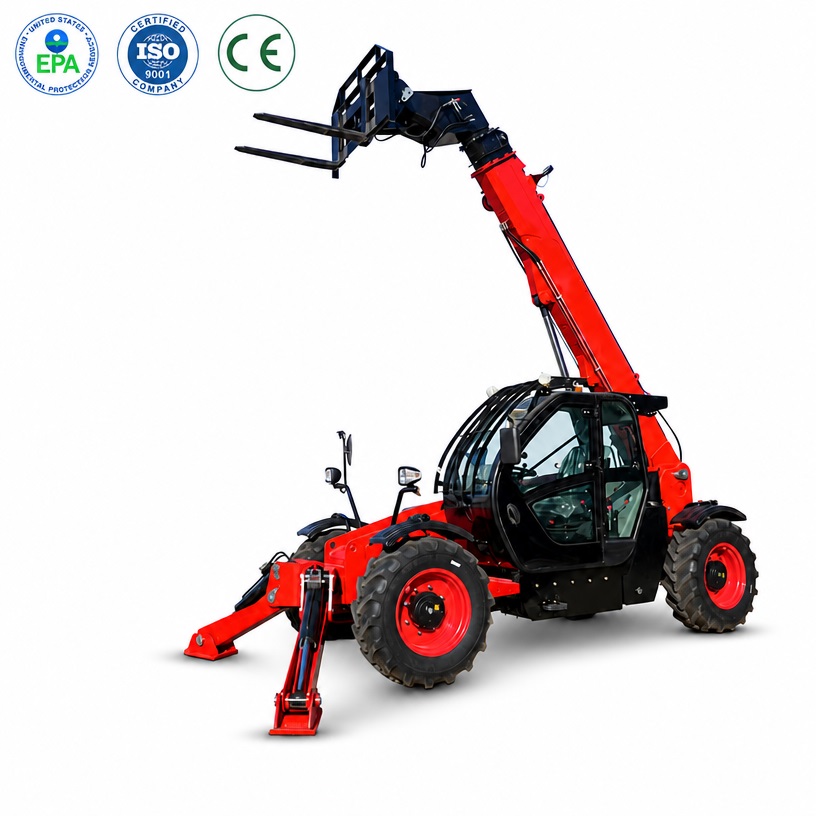

3.5 Ton Telehandler | 10 m Telescopic Forklift

The ST1035 is a 3.5 ton high-reach telehandler, also known as a telescopic forklift, developed for outdoor material handling where conventional forklifts may not provide enough lift height. Its maximum lift capacity is 3,500 kg, making it suitable for planned handling tasks involving construction materials, palletized goods, agricultural supplies, equipment, and general yard loads, subject to the official load chart and operating conditions.

With a 10,000 mm lift height, the ST1035 supports high-level stacking, truck loading, elevated material placement, and other reach-demanding operations across suitable construction sites, farms, building-material yards, logistics areas, and industrial work zones. The supplied specification lists a 4,600 mm overall length to the front tires and 16/70-24 semi-solid tires; actual capacity varies with boom position, load centre, attachment, and working radius.

The ST1035 combines high lifting reach with practical site-planning dimensions. Its 2,300 mm overall height, 2,150 mm overall width over the tires, 4,600 mm overall length to the front tires, 2,850 mm wheelbase, and 8,375 kg unladen weight should be considered when planning access routes, transport, storage areas, turning space, ground conditions, and attachment use. The listed outside turning radius over the tires is 4,250 mm.

Why Choose the ST1035 Telehandler?

3.5 Ton Maximum Lift Capacity

The ST1035 lifts up to 3,500 kg for suitable construction, agricultural, logistics, and outdoor material-handling tasks.

10,000 mm Vertical Reach

The listed 10 m lift height supports high-level stacking, elevated material placement, and truck-loading work where extra height is required.

91 kW YUCHAI Diesel Engine

The YUCHAI YCD4J22T-125 engine is listed with 91 kW rated power for regular high-reach telehandler operations.

Semi-Solid Tire Working Configuration

The supplied specification lists 16/70-24 semi-solid tires, which should be considered when evaluating puncture resistance, surface conditions, traction, and site suitability.

350 mm Ground Clearance

The listed ground clearance provides a reference for assessing suitable outdoor surfaces, access conditions, and site transitions.

Practical Access Dimensions

The 2,300 mm overall height and 2,150 mm overall width over the tires provide key information for access, transport clearance, and operating-space planning.

Stable High-Reach Platform

The 2,850 mm wheelbase, 4,250 mm outside turning radius over the tires, and 8,375 kg unladen weight should be included in site layout, transport, and ground-bearing evaluations.

Extended Front-Fork Configuration

The 4,600 mm overall length to the front tires and 1,220 mm pallet fork length support equipment planning for high-reach material-handling applications.
