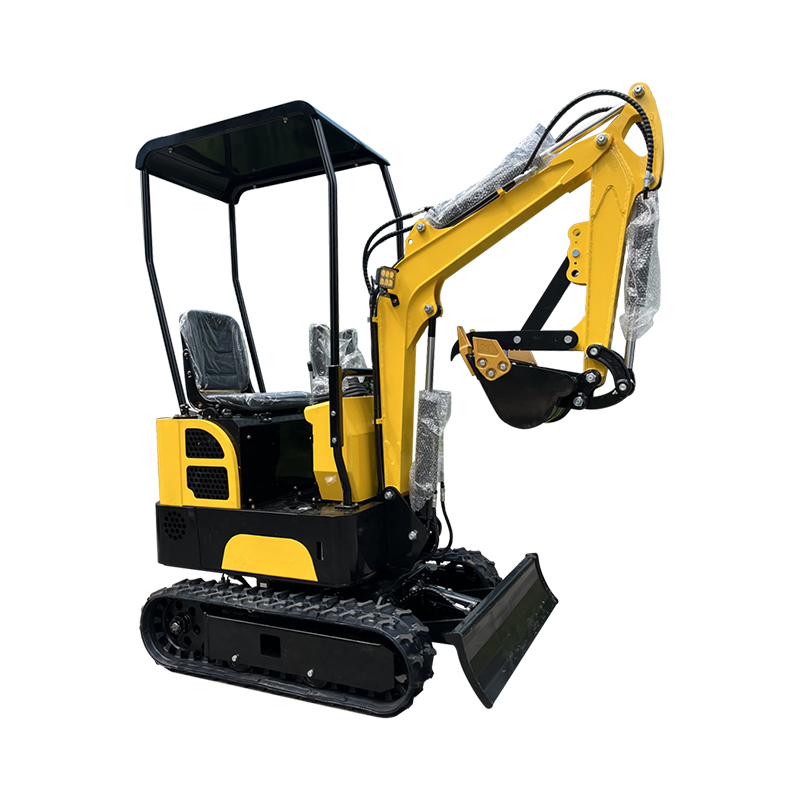

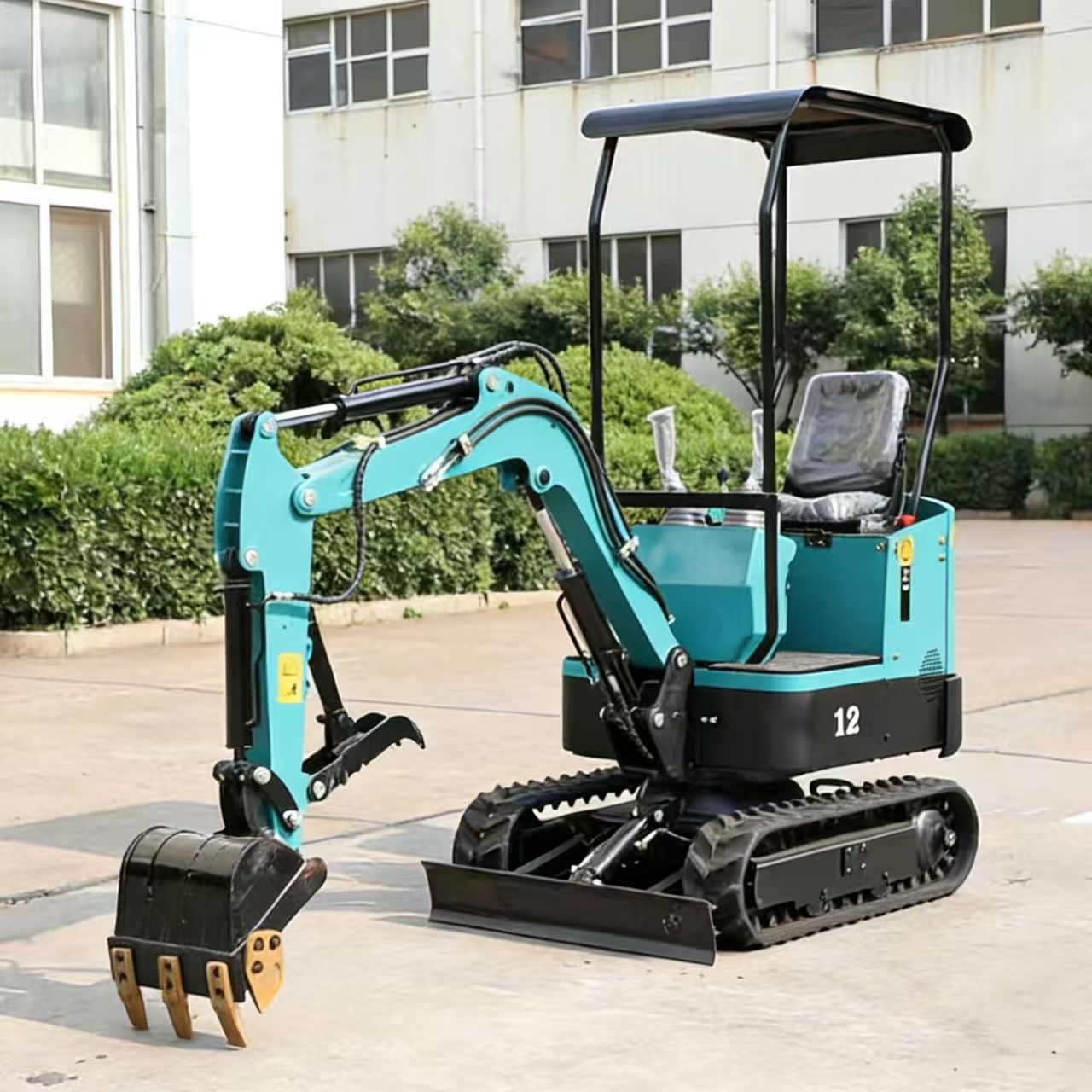

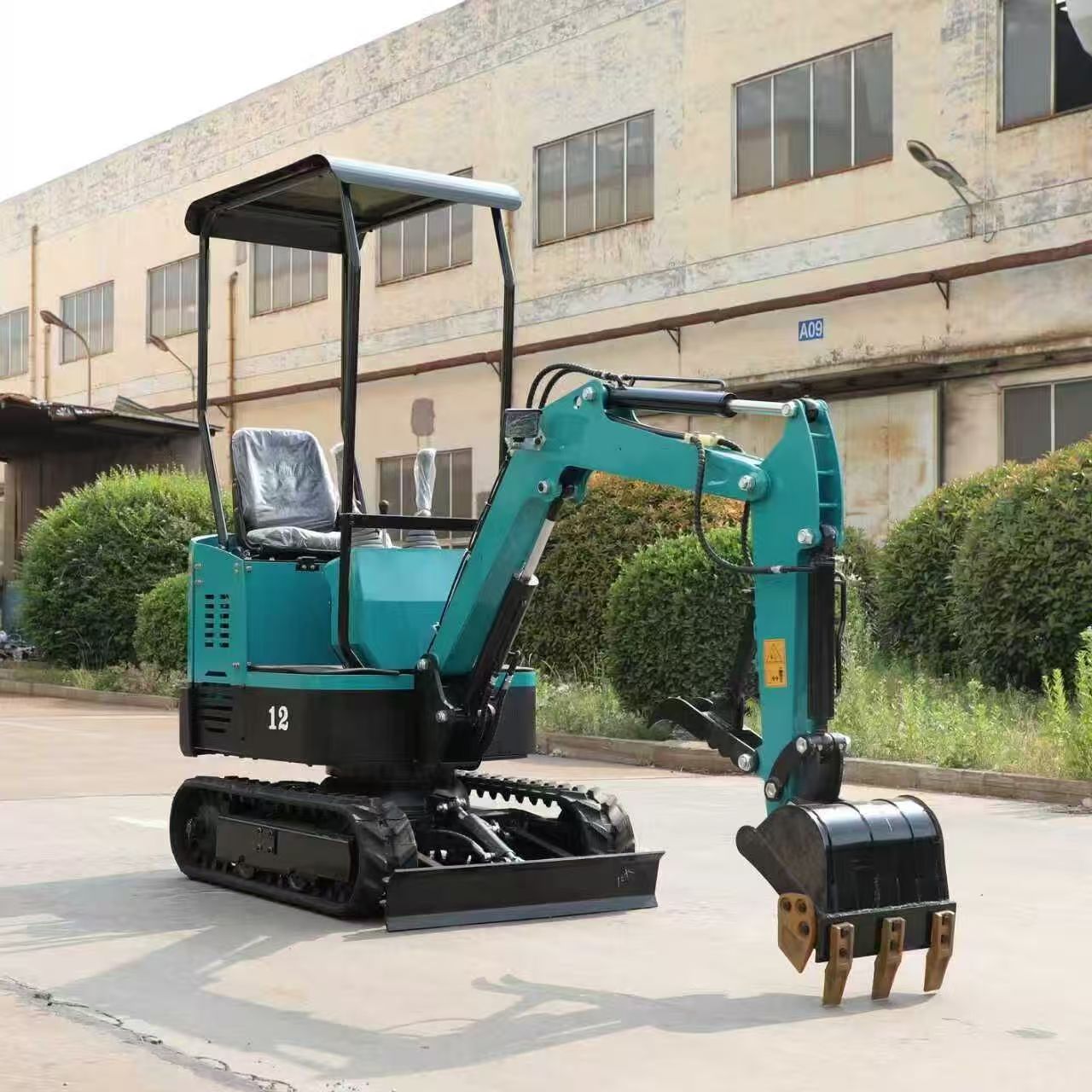

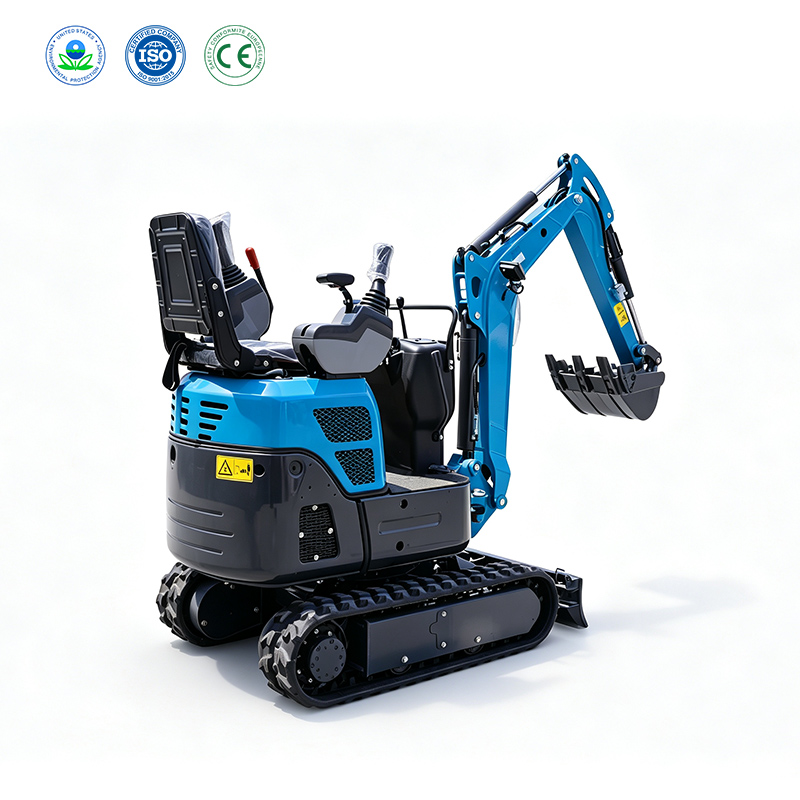

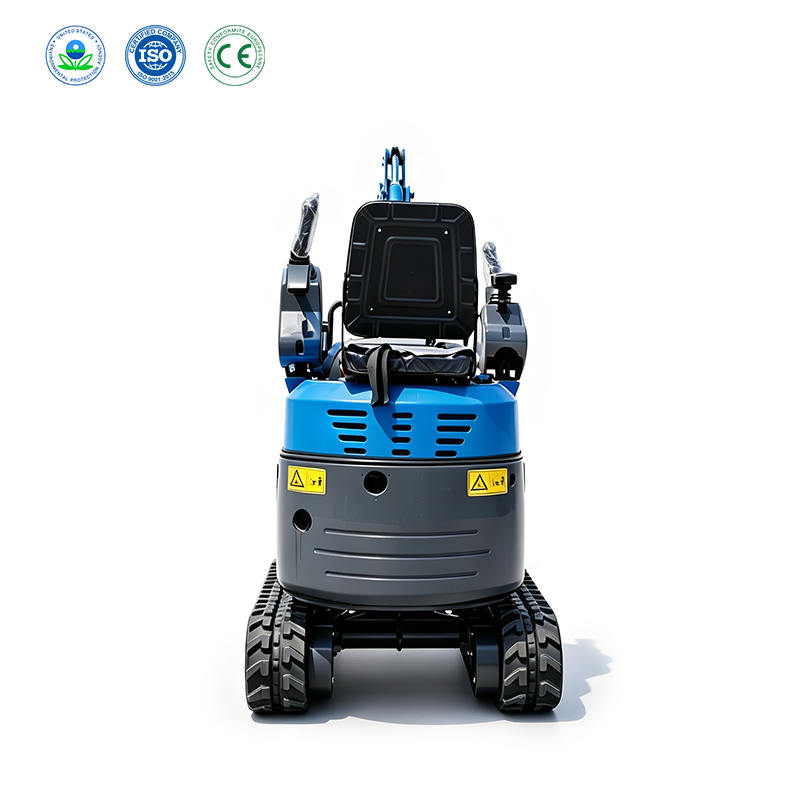

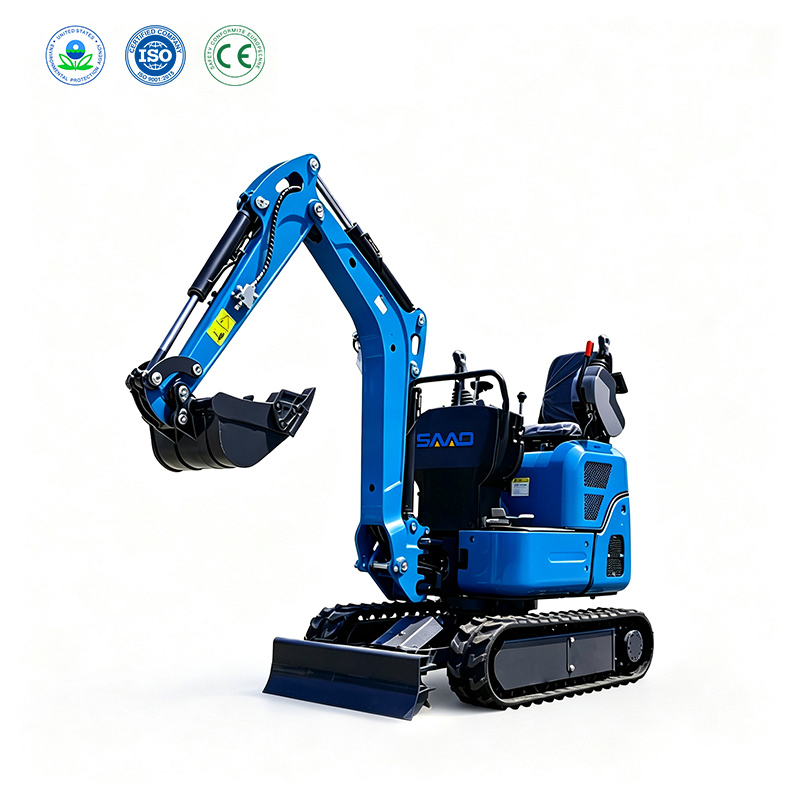

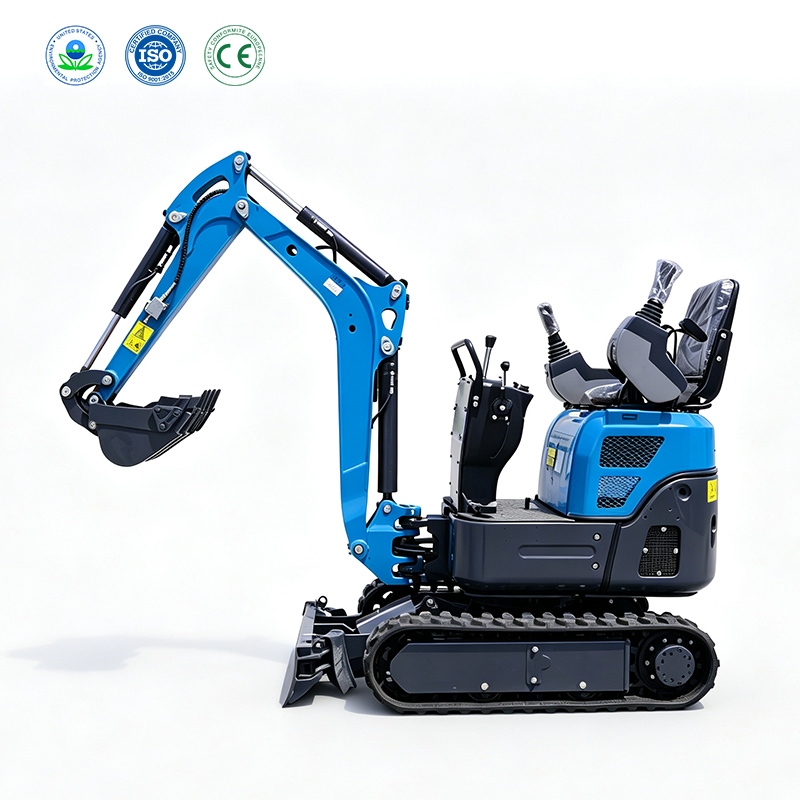

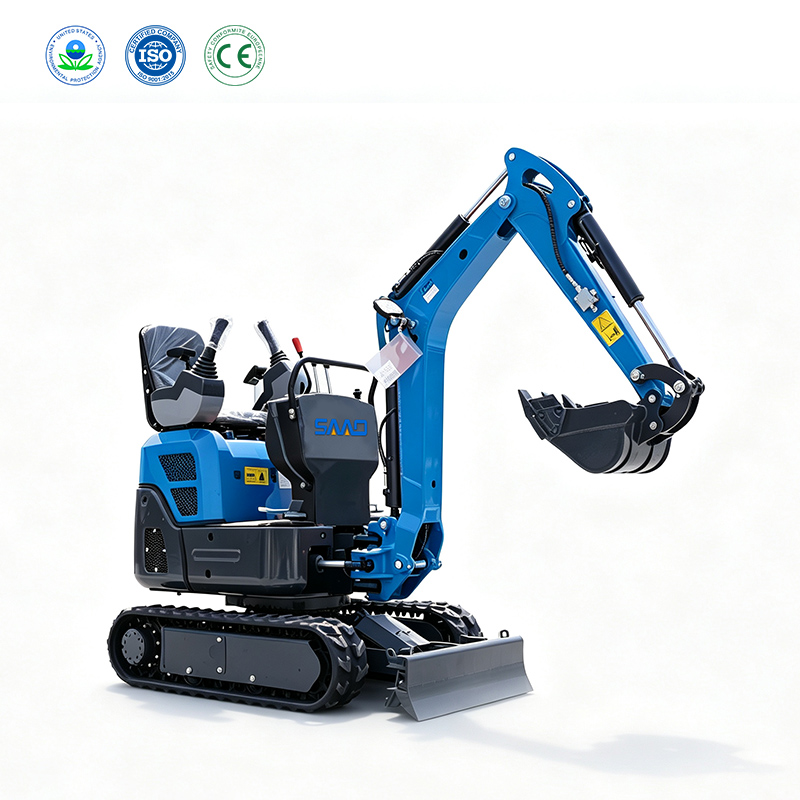

SE12
Power & Reliability: Kubota 10.2 kW diesel engine with 0.719L displacement, stable performance, low fuel consumption, suitable for long-time operation.
Compact & Flexible: 2700×750×1985 mm overall dimension, compact body structure, easy access to narrow/indoor spaces; 30° gradeability for diverse terrains, dual travel speeds of 2/3.5 KM/h for flexible movement.
Efficient Working Performance: 0.02 m³ bucket, 1670mm max digging depth, 2775mm max digging height, 1835mm max dumping height, 6.5 KN bucket digging force, ideal for digging, loading, landscaping and small construction tasks.

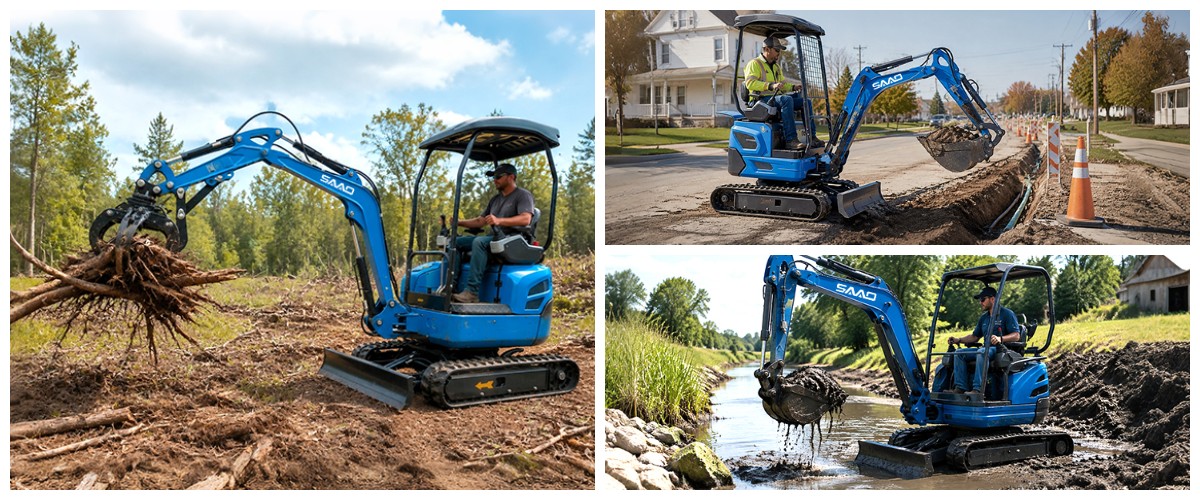

Fitted with a 0.02 m³ standard bucket, it reaches a maximum digging depth of 1670 mm and max dumping height of 1835 mm to handle digging, backfilling and landscaping efficiently. The 1100 kg operating weight provides solid working stability, paired with dual travel speeds of 2/3.5 KM/h for flexible site movement. It comes with practical standard configurations: rubber tracks (steel tracks optional), sunshade roof with enclosed cab as an upgrade, and a complete tool kit. Covered by a 2-year warranty, its rugged build and low upkeep expenses make it perfectly suited for municipal maintenance, garden renovation, agricultural farming and indoor demolition projects.
Product Specifications
| Specification | Parameter |
|---|---|
| Model | SE12 |
| Overall Dimensions (L×W×H) | 2700×750×1985 mm |
| Operating Weight | 1100 kg |
| Bucket Capacity | 0.02 m³ |
| Engine Brand | Kubota |
| Engine Displacement | 0.719 L |
| Rated Engine Power | 10.2 KW |
| Travel Speed (Low/High Gear) | 2/3.5 KM/h |
| Gradeability | 30° |
| Bucket Digging Force | 6.5 KN |
| Max. Digging Height | 2775 mm |
| Max. Dumping Height | 1835 mm |
| Max. Digging Depth | 1670 mm |

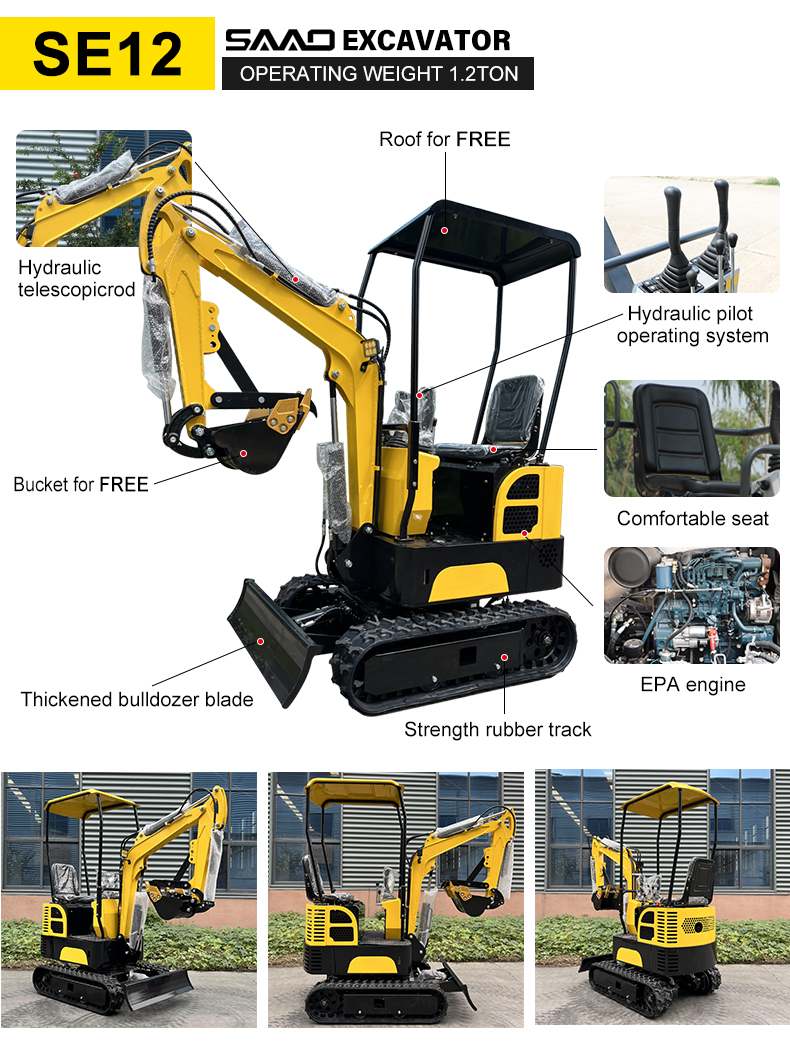

Premium Kubota Engine for Balanced Performance 1.Constant powerful performance delivered by 10.2 KW rated output 2.Optimized fuel efficiency effectively reduces daily operating expenses 3.Suppressed vibration and quiet running enable fatigue-free all-day operation 4.Advanced low-emission structure balances environmental compliance and premium working productivity | |
Detailed Presentation
| |

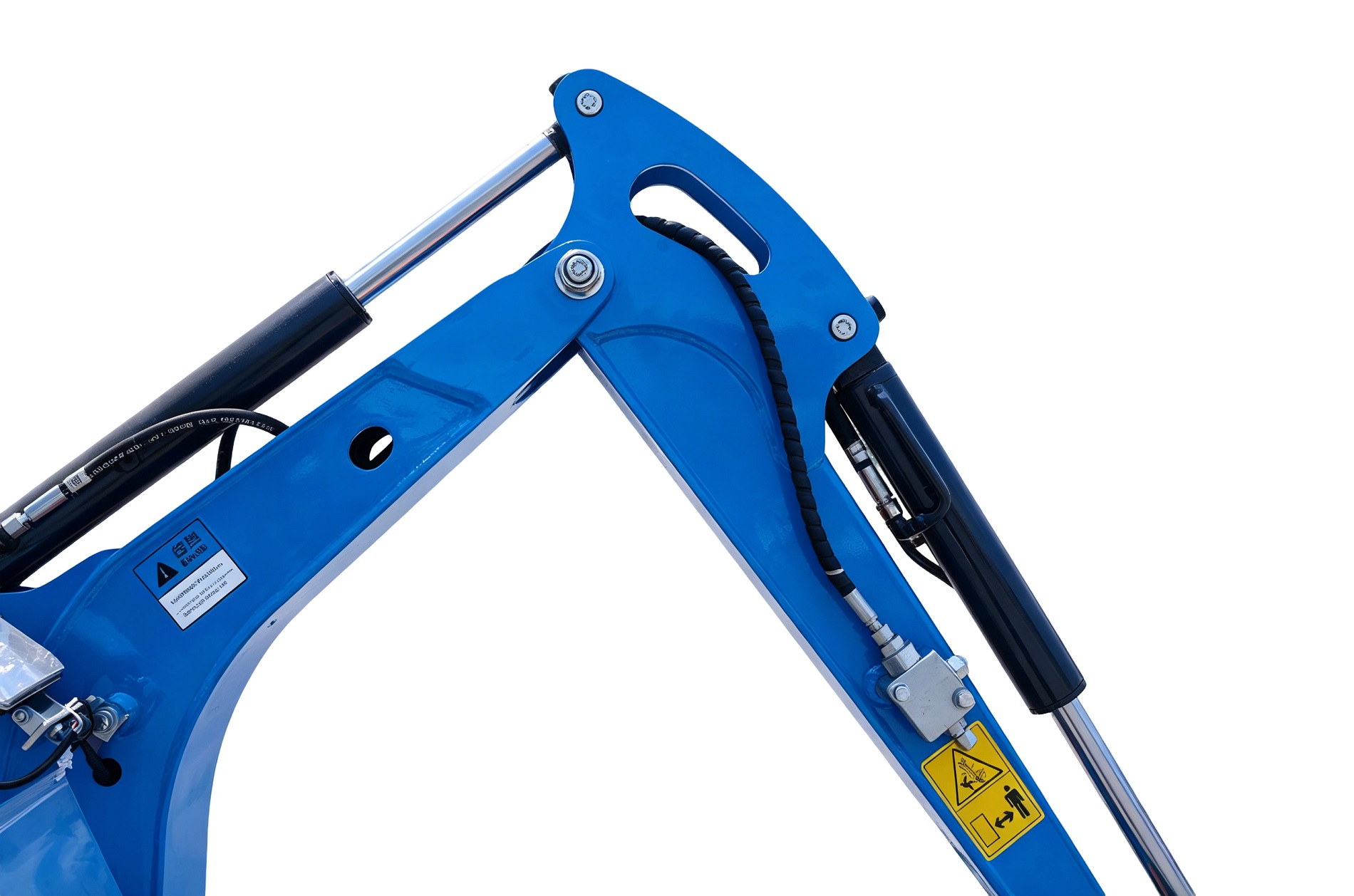

Heavy-Duty Hydraulic Boom System 1.Reinforced steel arm with anti-corrosion coating for rigid solid structure 2.Big-bore hydraulic cylinders create strong digging and lifting power 3.Wear-resistant braided hoses fixed by special brackets against rubbing damage 4.Accurate metal hydraulic connectors with tight sealing to avoid oil leaks 5.Strengthened hinge bolt design for stable linkage and low long-term failure rate | Comfortable Operator Seat 1.Cushioned seat and backrest dampen vibration for long-time comfortable operation 2.Spacious fixed armrests offer arm support and alleviate operating tiredness 3.Front-back adjustable seat base fits operators with different body figures 4.Scratch-resistant leather surface covered by protective film for brand-new shipment 5.Solid metal support bracket keeps the seat stable on rough terrains without shaking |
| |

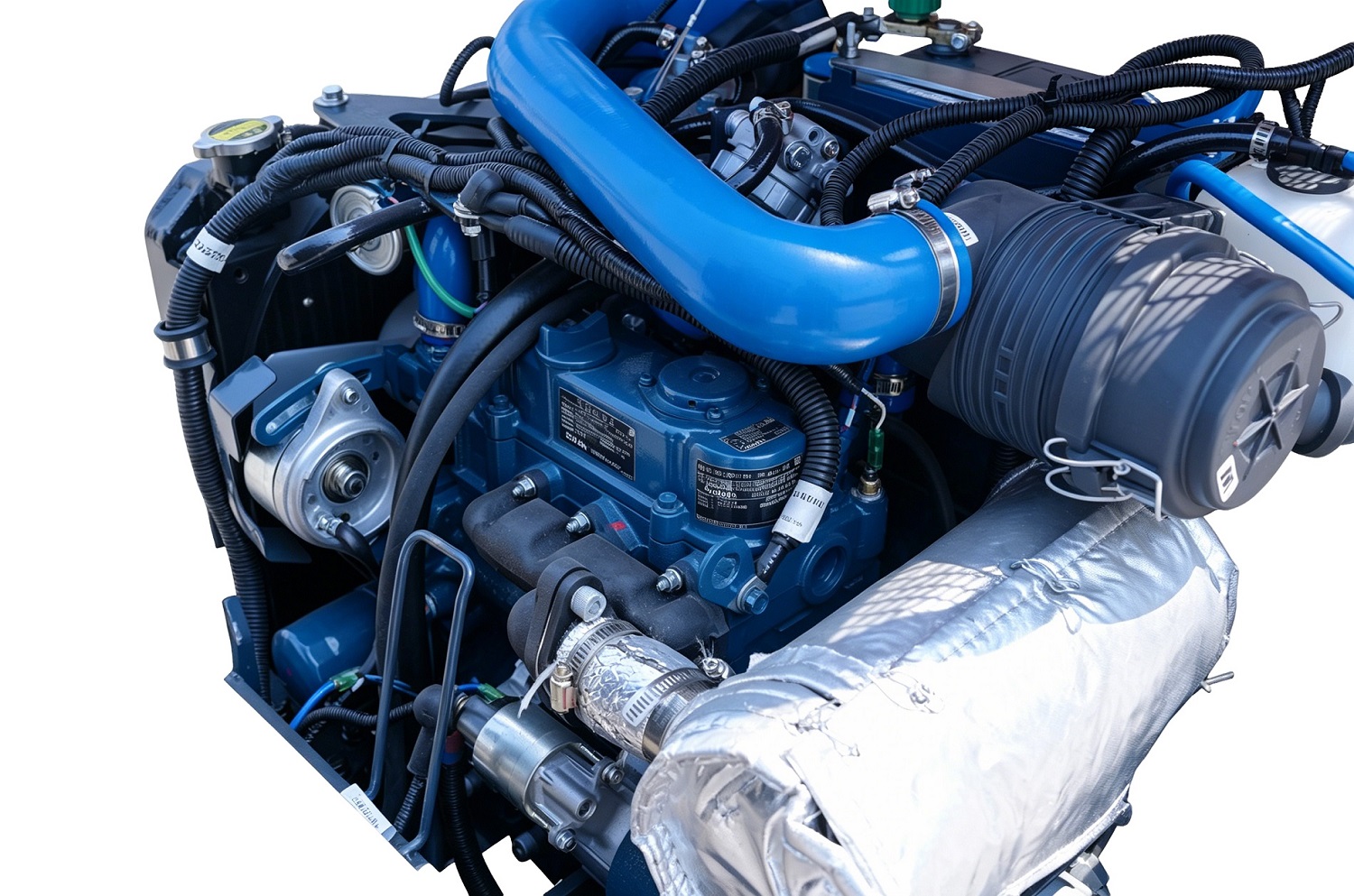

Premium Kubota Diesel Engine Assembly 1.Genuine Kubota integrated engine block with precision cast construction for outstanding structural rigidity 2.Large-caliber thick air intake pipe paired with heavy-duty air filter to intercept dust and prolong engine service lifespan 3.Tidily arranged wear-resistant braided wiring harness secured by fixing clips to prevent friction abrasion during operation 4.Thermal insulation wrapping on exhaust pipe isolates high temperature and cuts down heat radiation to surrounding parts 5.Full set of matched auxiliary parts including radiator, alternator and starter motor, pre-assembled for direct mounting on mini excavators | Heavy-Duty Swing Frame & Pivot Connection1.One-piece cast swing yoke, thickened structure to bear peak digging breakout force 2.Multi-axis kingpin hinge assembly with high-strength alloy bolts for rigid connection 3.Independent swing hydraulic cylinder delivers smooth 360° slewing movement of boom assembly 4.Precision machined friction mating surfaces to lower wear and cut maintenance frequency 5.Built-in hidden pipeline layout, effectively preventing external impact and pipe abrasion |
