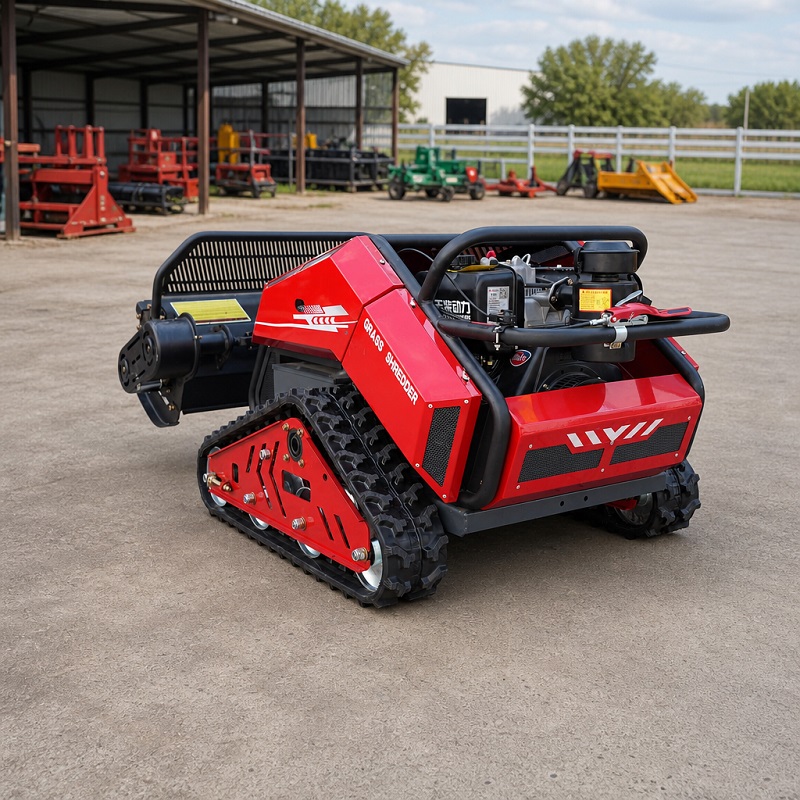

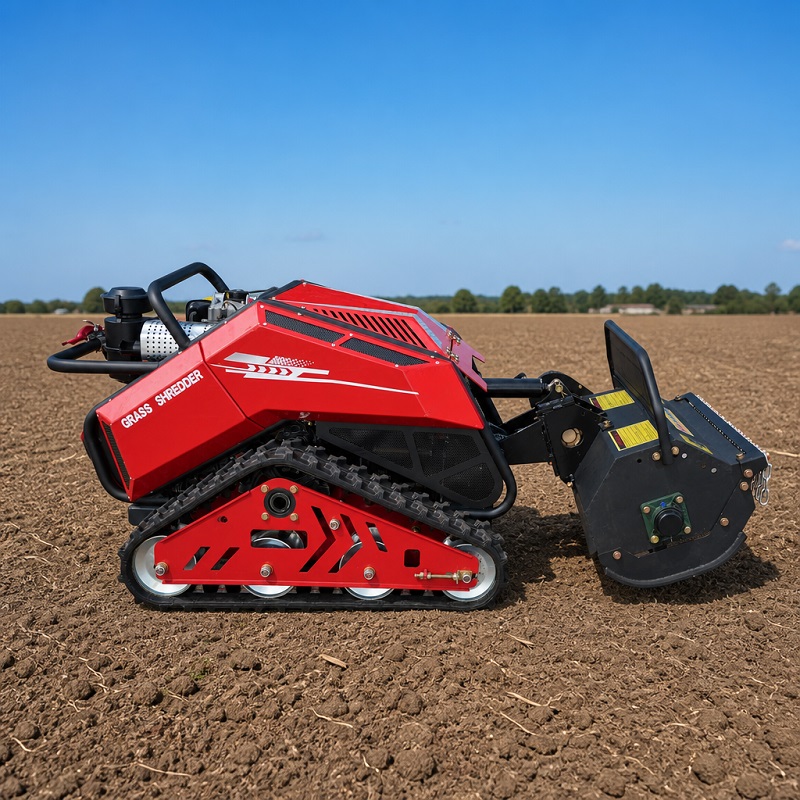

Multifunctional Tracked Remote Control Tiller
1. One Machine, Multiple Agricultural Operations
The machine supports rotary tilling, trenching, weeding, backfilling, and grass cutting with interchangeable agricultural attachments, enabling multiple field operations with a single power platform.
2. 13kW Diesel Working Power
Powered by a 13kW YUCHAI 1100F Euro 5 diesel engine, the machine delivers the main mechanical power for demanding agricultural operations, while the electric drive system handles machine travel.
3. Tracked Mobility for Complex Ground
The 150mm thickened tracks and independent left- and right-side drive provide enhanced traction and maneuverability on soft soil, uneven farmland, orchards, and other challenging terrain.
4. Remote-Controlled Operation
Remote control keeps the operator separated from the machine, reducing the physical demands of continuous follow-behind operation in orchards, hillsides, and other hard-to-access agricultural areas.
The SAAO Multifunctional Tracked Remote Control Tiller is a versatile remote-controlled agricultural machine with interchangeable attachments for rotary tilling, trenching, weeding, backfilling, and grass cutting.
Designed for orchards, vineyards, nurseries, small farms, and hilly or irregular terrain, it combines a 13kW diesel engine, dual 1000W travel motors, 48V tracked drive, and hydraulic attachment lifting to handle multiple agricultural operations with one multifunctional platform.
| Item | Specification |
|---|---|
| Engine | YUCHAI 1100F, 13 kW, Euro 5 |
| Drive Motor | 2 × 1000 W |
| Drive System | 48V Independent Tracks |
| Track Width | 150 mm |
| Battery | 48V 23Ah Lead‑Acid |
| Travel Speed | 35‑50 m/min |
| Rotary Tilling Width | 900 mm |
| Rotary Tilling Depth | 130‑250 mm |
| Trenching Width | 260 mm |
| Trenching Depth | 200‑300 mm |
| Grass Cutting Width | 800 mm |
| Machine Weight | Approx. 500 kg |
| Control | Remote Control |
| Functions | Tilling, Trenching, Weeding, Backfilling, Grass Cutting |
Detailed Presentation
13kW Diesel Power
Powered by a 13kW YUCHAI 1100F Euro 5 diesel engine, the machine delivers the main power for rotary tilling, trenching, and other agricultural operations. Two independent 1000W motors drive the left and right tracks for remote-controlled movement.
Independent Tracked Drive
The 48V tracked drive system with 150mm thickened tracks provides flexible maneuverability on soft soil, uneven ground, orchards, and small plots. Independent left and right track drive also supports operation in narrow working areas.
Multifunctional Attachments
One power platform supports multiple agricultural tasks with interchangeable attachments:

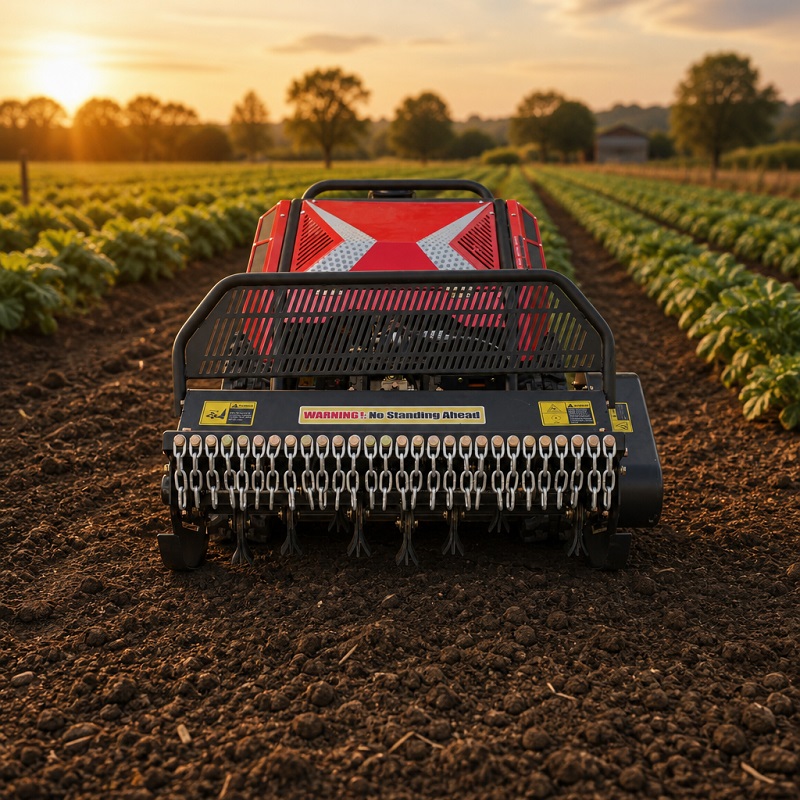

· Rotary Tilling: 900mm width, 130–250mm depth
· Trenching: 260mm width, 200–300mm depth
· Weeding: Shallow weeding between orchard rows
· Backfilling: Covering trenches after trenching
· Grass Cutting: 800mm width for tall grass and rough vegetation
Hydraulic Attachment Lifting
An integrated hydraulic power unit provides attachment lifting. Combined with the diesel working system and electric tracked drive, it enables the machine to perform multiple agricultural operations on one power platform.
Application Scenarios

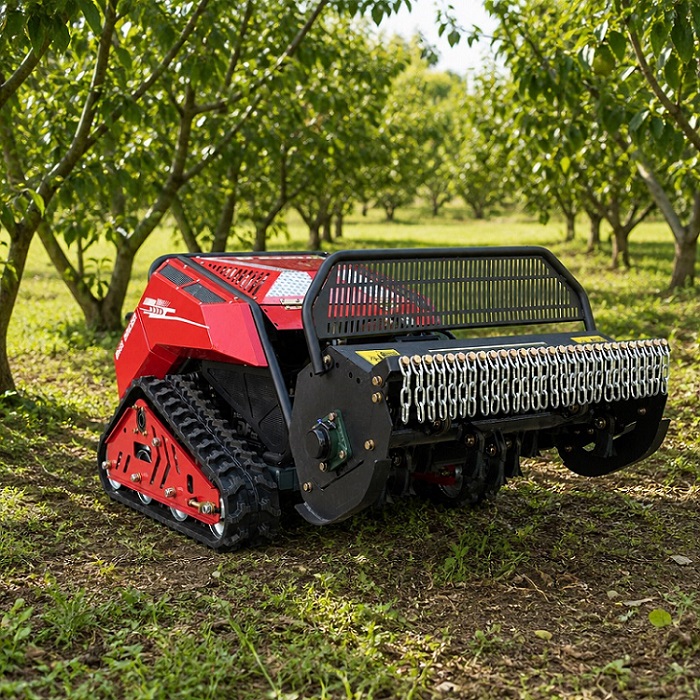

Orchard Management
Ideal for rotary tilling, row weeding, trenching, and backfilling in orchards.
Vineyard & Narrow-Row Farming
Independent tracked drive enables flexible movement through narrow rows and limited working spaces.

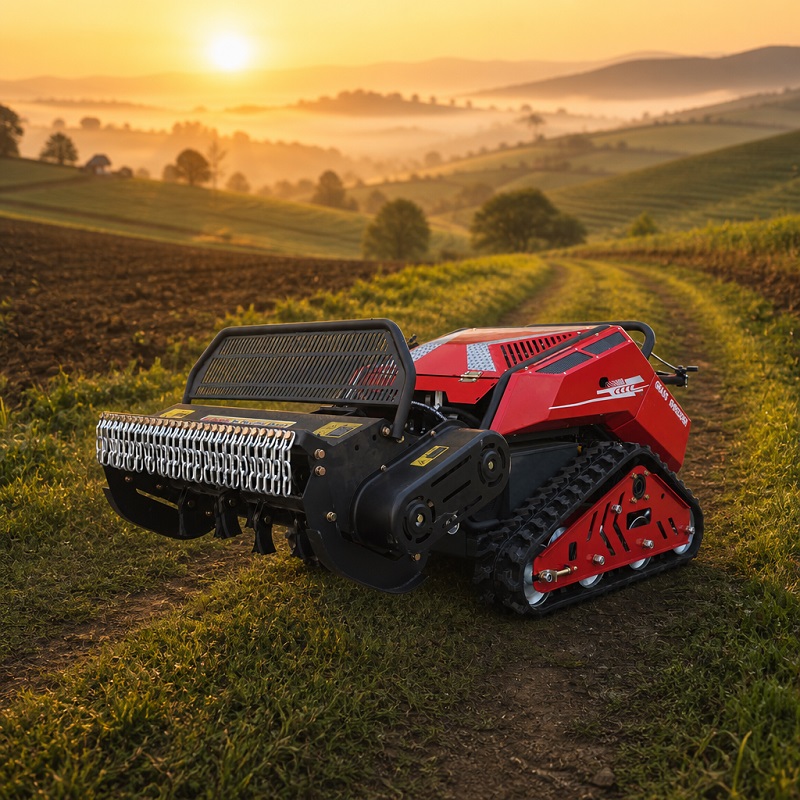

Hilly & Mountainous Farmland
Remote operation and tracked travel help reduce the need for continuous follow-behind operation in complex agricultural environments.
Nurseries
The compact tracked platform and interchangeable attachments support various cultivation and vegetation-management tasks.
Small Farms & Irregular Plots
A practical solution for smaller agricultural areas where large machinery has limited access or maneuverability.
Agricultural Service Operations
Multiple attachments allow service providers to handle different agricultural tasks with a single multifunctional power platform.
Frequently Asked Questions
1. What is a remote control tracked agricultural machine?
It is a multifunctional tracked agricultural power platform designed for rotary tilling, trenching, weeding, backfilling, and grass cutting.
2. What is this remote control tiller used for?
It is designed for orchards, vineyards, nurseries, hilly farmland, small farms, and irregular plots.
3. What engine does the machine use?
It uses a 13kW YUCHAI 1100F Euro 5 diesel engine to power the main agricultural working system.
4. What do the two 1000W motors do?
The two 1000W motors independently drive the left and right tracks for machine travel and maneuvering.
5. What attachments are available?
The machine supports rotary tilling, trenching, weeding, backfilling, and grass cutting attachments.
6. Can it be used in orchards?
Yes. It can be configured for orchard tilling, row weeding, trenching, and backfilling.
7. Can it work on hilly farmland?
It is designed for hilly and mountainous agricultural applications. Actual suitability depends on terrain, soil conditions, and operating requirements.
8. What is the rotary tilling width?
The rotary tilling width is 900mm, with a working depth of 130–250mm.
9. What is the trenching width and depth?
The trenching width is 260mm, with a working depth of 200–300mm.
10. Can one machine handle different agricultural operations?
Yes. Different attachments can be installed according to the required task, allowing one power platform to support multiple agricultural operations.
