SE25N
Genuine Yanmar Diesel Power
Powered by a 15kW Yanmar 3-cylinder water-cooled engine, it delivers stable output, high fuel efficiency, and complies with global emission standards for long-lasting, reliable operation.
Flexible Telescopic Chassis
Adjustable track width (1300mm–1500mm) and boom swing enable easy passage through 1.3m narrow gates and precise wall-side or confined-corner operation.
Precision Load-Sensing Hydraulics
Advanced load-sensitive system and ergonomic joysticks ensure smooth compound movements, minimal power loss, and enhanced operator comfort.
Versatile Terrain Adaptability
Rubber tracks (steel optional) and dual-speed travel protect finished surfaces while delivering strong mobility across diverse job sites.

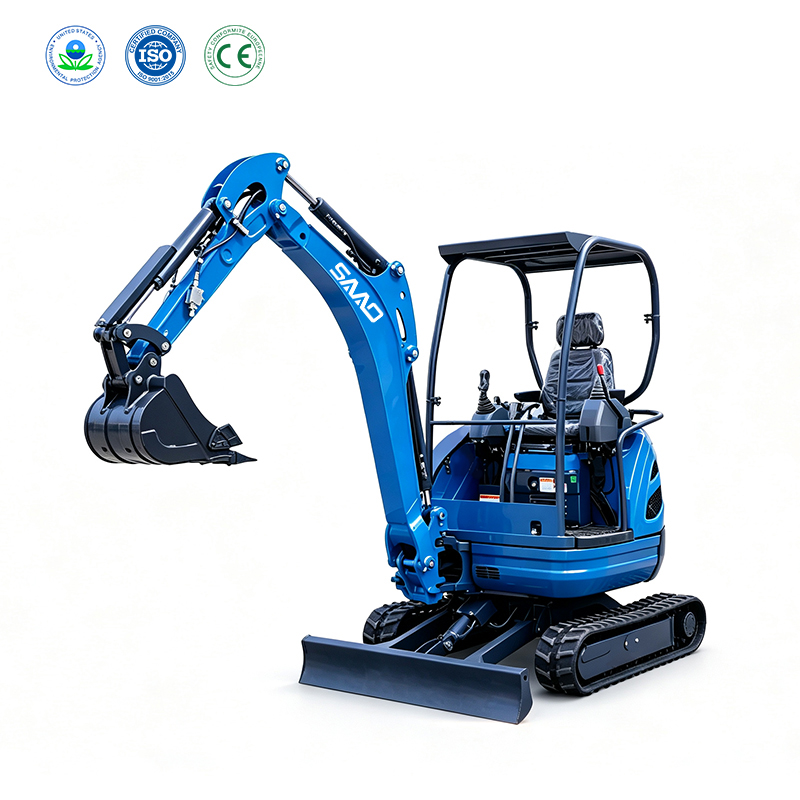

The SE25N is a versatile 2.5-ton compact mini excavator engineered for confined-space operations, widely used in landscaping, municipal refurbishment, farm development and utility pipeline projects. Fitted with a proven Yanmar 3-cylinder water-cooled engine and load-sensitive hydraulic system, this machine delivers powerful digging capacity, outstanding maneuverability and affordable running costs. Thanks to the telescopic chassis and boom swing design, it adapts to diverse complex working conditions, making it a perfect choice for professional contractors and individual operators.
Model | SE25N |
Operating Weight | 2,500 kg |
Power | 15 kw (20.4 hp) |
Engine Brand | Yanmar |
Engine Type | 3-Cylinder, Water-cooled |
Bucket Capacity | 0.066 m³ |
Bucket Width | 460 mm |
Max. Digging Depth | 2,320 mm |
Max. Vertical Digging De | 2,170 mm |
Max. Digging Height | 3,880 mm |
Max. Dumping Height | 2,550 mm |
Max. Digging Radius | 4,140 mm |
Overall Width | 1300-1500 mm |
Overall Dimension | 3850*1500*2380 mm |
Gradeability | 35° |
Roof / Cab | Roof (Cab Option) |
Track | Rubber (Steel Option) |
Tool Kit | Yes |
Warranty | 2 Year |
Configuration | Hydraulic Joystick, Load Sensitive System, High-low Speed Travel, Telescopic Chassis, Boom Swing |
Core Advantages
Genuine Yanmar Engine
Powered by a Yanmar 3-cylinder water-cooled diesel engine with rated power of 15 kW (20.4 hp). It features steady power output, low vibration, reduced fuel consumption and extended service life, capable of enduring long-hour heavy-duty outdoor work.
Load-Sensitive Hydraulics & Pilot Joystick Control
The advanced load-sensitive hydraulic system intelligently allocates power to cut energy loss. Hydraulic pilot joysticks offer smooth, precise and responsive handling with coordinated composite movements, enabling quick learning even for novice operators.
Telescopic Chassis with Boom Swing
The track width is adjustable between 1300 mm and 1500 mm. Narrow width mode allows easy passing through narrow doorways and passages; extended width enhances operational stability. The boom swing function enables digging alongside walls and barriers without frequent machine relocation.
Strong Mobility & Optional Tracks
Boasting a 35° gradeability, the excavator effortlessly navigates slopes and uneven ground. Rubber tracks come as standard to safeguard paved surfaces, while steel tracks are available as an option for rugged, stony terrain. High/low travel speed switch supports flexible speed adjustment for different tasks.
Customizable Configuration
A safety roof is fitted as standard; an enclosed operator cab is offered as an upgrade. A full tool kit is included. With compact overall dimensions of 3850*1500*2380 mm, the machine can be conveniently transported by small trailers.
Trustworthy After-Sales Support
Backed by a 2-year warranty to protect your long-term investment.
