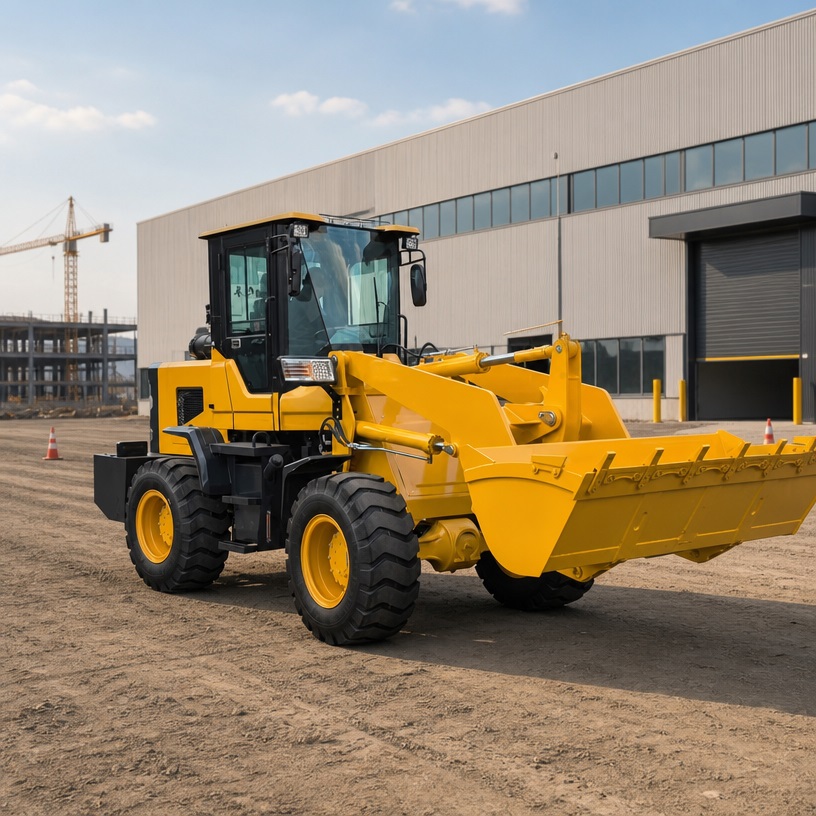

SZ920 2 Ton Wheel Loader | 78kW 106hp 4x4 Compact Front End Loader
106HP Turbocharged Power: Powered by a robust 78kW engine, providing the highest torque in its class for effortless digging in hard soils.
2,000kg Flagship Payload: A massive 2-ton rated load combined with a 5-ton operating weight ensures rock-solid stability during heavy lifting.
3.5m Ultra-High Reach: The extended 3,500mm dump height allows the SZ920 to load heavy-duty high-sided trucks and industrial mixers easily.
1.0m³ High-Capacity Bucket: Move more material in fewer cycles. The 1.0m³ standard bucket increases operational efficiency by 25% compared to 1.5t models.
Superior 4x4 Traction: Equipped with 16/70-20 heavy-duty tires and articulated 4WD, ensuring peak performance on muddy or inclined terrains.
SZ920: The New Benchmark for 2-Ton High-Performance Loaders
Upgrade your operational capacity with the SZ920 Wheel Loader—the ultimate fusion of raw power and high-reach precision. Engineered for professionals who demand more, this 5-ton machine features a high-performance 78kW (106hp) engine that delivers unmatched breakout force.
With a 2,000kg rated load and a category-leading 3,500mm dump height, the SZ920 eliminates the limitations of compact equipment. Whether you are loading bulk trailers or navigating complex job sites, its articulated 4x4 agility and 1.0m³ bucket ensure you finish the job faster and with lower fuel consumption. Power, Reach, and Reliability—SZ920 is built to lead.
Application Scenarios
Heavy Construction & Infrastructure: The perfect partner for road building, site grading, and moving heavy aggregates. The SZ920’s 5,000kg operating weight provides the ballast needed for pushing through dense piles of gravel or clay.
Industrial Material Handling: Optimized for recycling centers, coal yards, and logistics hubs. The 3.5m dump height is a critical advantage, allowing the loader to reach over tall container walls and industrial hoppers without extra ramps.
Large-Scale Agriculture: Ideal for silage management, large-scale manure handling, and grain transport. The 2,000mm bucket width matches the machine’s footprint, ensuring clean passes in feedlots and storage barns.
Municipal & Emergency Services: Highly effective for high-volume snow removal and disaster clearing. The 78kW turbocharged engine ensures the machine maintains speed (up to 30km/h) even when pushing heavy, wet snow.
| Model | SZ920 |
| Operating Weight | 5,000 kg |
| Rated Load | 2,000 kg |
| Bucket Capacity | 1.0 m³ |
| Bucket Width | 2,000 mm |
| Max. Dump Height | 3,500 mm |
| Engine Power | 78kw (106hp) |
| Wheel Drive | 4×4 |
| Tire | 16/70-20 |
| Max. Travel Speed | 0-30 km/h |
| Gradeability | 30° |
| Dimensions | 5,650×2,000×2,750 mm |
Technical Highlights
High-Torque Flagship Engine: The 106hp (78kW) engine is designed for endurance, offering superior fuel efficiency and reliable starts in extreme temperatures.
Industrial-Grade Hydraulics: Featuring high-flow pumps and reinforced lift cylinders, the SZ920 delivers smooth, synchronized movements for the boom and bucket, cutting cycle times drastically.
Reinforced Heavy-Duty Chassis: The articulated frame is built with high-tensile steel, providing the structural integrity needed to handle 2-ton loads day in and day out.
3.5m Extended Reach: Our unique boom geometry provides a 3,500mm discharge height, making the SZ920 compatible with a wider range of commercial transport vehicles than standard 2t loaders.
Operator-Centric Cabin: Designed for 360° visibility and ergonomic control, ensuring safety and comfort during 8+ hour shifts in confined or busy sites.
FAQ
Q: How does the SZ920 handle high-sided commercial trucks?
A: Unlike most compact loaders, the SZ910 features a 3.5m (3500mm) maximum dump height. This allows it to easily clear the sides of standard dump trucks and large agricultural mixers, eliminating the need for specialized high-lift equipment.
Q: Is a 78kW engine overpowered for a 2-ton loader?
A: Not at all. The 106hp engine ensures that the machine maintains peak hydraulic pressure and travel speed even under full load. This "reserve power" means the engine works less hard, leading to a longer lifespan and better fuel economy during heavy-duty tasks.
Q: What is the maintenance advantage of the SZ920?
A: The SZ920 uses standardized heavy-duty components and features a large, swing-out engine hood. This provides ground-level access to all filters and service points, significantly reducing your Total Cost of Ownership (TCO) and downtime.
Q: Can it be fitted with a quick-hitch for multiple attachments?
A: Yes. The SZ920 is fully compatible with our hydraulic quick-hitch system, allowing the operator to switch between the 1.0m³ bucket, pallet forks, or grapples in under 30 seconds without leaving the cab.
