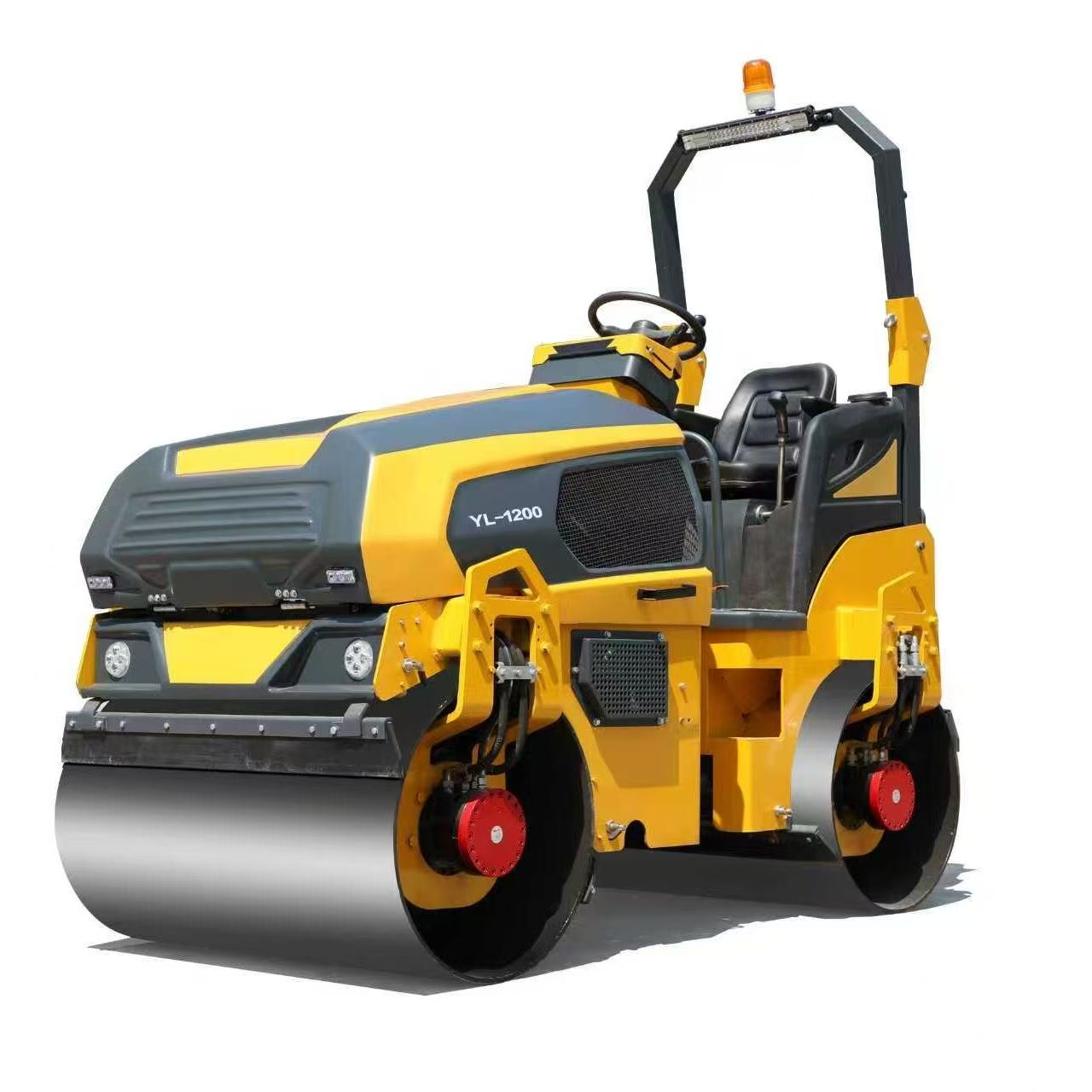

SY-1200

The SAAO SY-1200 ride-on vibratory roller is a 35HP double-drum tandem compactor featuring 30kN centrifugal force and hydraulic drive, designed for large-scale road base compaction, asphalt paving, and site preparation on highways, parking lots, and industrial projects . Powered by a reliable Changfa 3B35T diesel engine with front and rear drum vibration, 40° gradeability, and 0-12 km/h variable speed control, this tandem roller delivers professional compaction results with up to 50% fewer passes than single-drum alternatives . Backed by SAAO's 20 years of manufacturing expertise and 2-year warranty, every unit ships ready to work from our Shandong facility to job sites worldwide.

Detailed Advantage Breakdown

Superior Compaction Performance for Heavy-Duty Applications
The SY-1200 tandem vibratory roller is engineered for professional-grade compaction on large-scale projects. Its 30kN centrifugal force, generated at 60Hz vibration frequency with 0.5mm nominal amplitude, delivers the impact energy needed to achieve specified densities in asphalt, granular base, and subgrade materials with fewer passes . The 125 N/cm front drum and 115 N/cm rear drum static linear forces ensure uniform compaction across the full 1200mm drum width, eliminating soft spots and achieving smooth, professional finishes. This performance rivals much larger machines while maintaining excellent maneuverability.

Dual-Drum Vibration for Maximum Productivity
Unlike single-drum rollers that require multiple passes, the SY-1200's front and rear drums both deliver vibration simultaneously. This doubles compaction efficiency, reducing pass counts by up to 50% on many applications . The independent vibration control allows operators to engage front, rear, or both drums as needed—single-drum mode for shoulder work, dual-drum mode for mainline compaction. The hydraulic drive system with infinitely variable 0-12 km/h travel speed provides precise control for both high-speed passes and low-speed finish work.

Reliable Changfa Diesel Powertrain
At the heart of this roller is a Changfa 3B35T 35HP three-cylinder diesel engine, renowned across global markets for exceptional fuel efficiency, easy cold-starting, and simple field maintenance—critical advantages for contractors working in remote areas where specialized service is unavailable . The fully hydraulic drive and vibration systems eliminate belts and mechanical clutches found on competitive machines, dramatically reducing maintenance requirements and improving reliability in dusty construction environments .

Extended Operation with Large-Capacity Systems
The 200L corrosion-resistant water tank, equipped with dual spray bars and replaceable filters, feeds a reliable sprinkler system that prevents asphalt from caking on drums—essential for clean matte finishes on paving jobs . Dual scrapers on each drum ensure continuous cleaning during operation. The separate 48L hydraulic oil tank maintains optimal system temperature during extended use, while the 35HP diesel's fuel efficiency provides all-day runtime on a single fill. All daily maintenance points are easily accessible without special tools .

Superior Gradeability and Maneuverability
With 40° gradeability, the SY-1200 climbs steep ramps and works confidently on sloped sites where lesser rollers struggle. The articulated steering with center-pivot design provides a tight turning radius for maneuvering in confined urban sites. The 2,800×1,515×2,050mm compact dimensions and 3,000kg operating weight deliver excellent stability while remaining transportable on standard trailers .

Operator-Focused Comfort and Control
The spacious, vibration-dampened platform with ergonomic controls reduces operator fatigue during long shifts. Dual operator positions (swiveling seat with dual controls) provide excellent visibility to both drum edges and the job site. The overhead canopy protects against sun and light rain, while all instruments are positioned for easy monitoring. The dead-man safety system immediately stops vibration and travel when controls are released, meeting international safety standards .

Built for Diverse Applications
The SY-1200 excels across multiple applications: highway base compaction, asphalt paving for roads and parking lots, airport runway construction, port and industrial yard preparation, and large-area site work . Its ability to work within tight clearances and maintain consistent compaction on slopes makes it indispensable for infrastructure contractors. Backed by SAAO's 20 years of manufacturing expertise and 2-year warranty, the SY-1200 delivers the dependability contractors worldwide require for heavy-duty compaction projects .

Application Scenarios & Performance Highlights

1. Highway & Road Construction

• Performance: 30kN centrifugal force and 0.5mm amplitude achieve rapid compaction of granular base courses and asphalt wearing courses. The 125/115 N/cm static linear force ensures uniform density across the full 1200mm drum width, eliminating soft spots and achieving smooth, professional finishes that meet strict highway specifications .

• Advantage: Dual-drum vibration reduces pass counts by up to 50% compared to single-drum rollers, accelerating project timelines and reducing fuel consumption. The 200L water tank with dual spray bars prevents asphalt pick-up, ensuring clean matte finishes on every pass .

2. Parking Lots & Large Commercial Sites

• Performance: 0-12 km/h variable speed control allows operators to match pace to site conditions—fast breakdown passes for subgrade compaction, slower speeds for asphalt finish work. The 3,000kg operating weight provides excellent stability while remaining light enough to prevent over-compaction on thinner lifts .

• Advantage: Compact 2,800×1,515×2,050mm dimensions and tight turning radius allow maneuverability around light poles, curbs, and building perimeters where larger rollers cannot operate. The articulated steering with center-pivot design enables precise positioning in confined spaces .

3. Airport Runways & Heavy-Duty Infrastructure

• Performance: 30kN centrifugal force at 60Hz frequency delivers the deep compaction required for airport runway bases and heavy-duty industrial pavements. The 40° gradeability allows operation on graded embankments and sloped taxiways without loss of traction or stability .

• Advantage: Dual-drum vibration with independent control lets operators engage front, rear, or both drums as needed—single-drum mode for shoulder work, dual-drum mode for mainline compaction. The 48L hydraulic system maintains consistent performance during extended high-demand operations .

4. Ports & Industrial Yards

• Performance: The reinforced drum design and sealed bearings withstand the rigors of compacting heavy-duty aggregates and industrial base materials. The 200L corrosion-resistant water tank with replaceable filters ensures reliable sprinkler operation even in dusty port environments .

• Advantage: Hydraulic drive eliminates belts and mechanical clutches, dramatically reducing maintenance requirements in harsh industrial settings. All daily maintenance points are easily accessible without special tools, minimizing downtime .

5. Sloped Sites & Embankment Compaction

• Performance: With 40° gradeability, the SY-1200 climbs and compacts on steep embankments, drainage ditches, and sloped building sites where lesser rollers lose traction. The low center of gravity and 3,000kg operating weight provide excellent stability on inclines .

• Advantage: Dual-drum vibration ensures uniform compaction across the entire slope surface, preventing differential settlement and ensuring long-term stability. Operators maintain confidence with the dead-man safety system that immediately stops vibration and travel when controls are released .

6. Trench Backfill & Utility Restoration

• Performance: The 1200mm drum width matches standard trench widths, allowing efficient backfill compaction in a single pass. The 0.5mm amplitude provides deep energy transfer for granular and cohesive soils alike .

• Advantage: Compact dimensions allow access to confined urban work sites where larger rollers cannot enter. The articulated steering enables precise alignment with trench centerlines, reducing edge trimming and manual compaction requirements .
