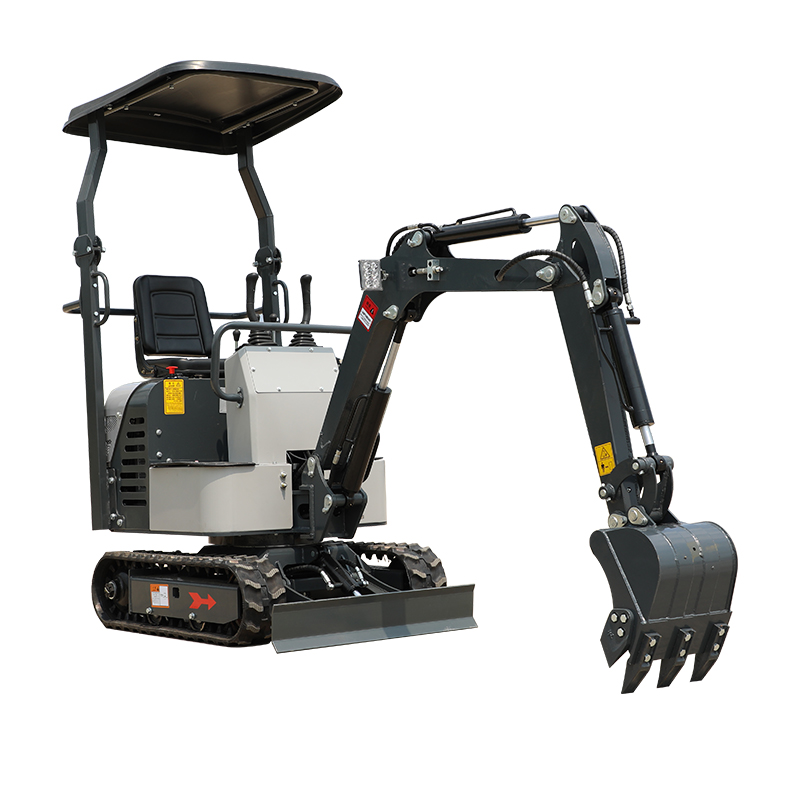

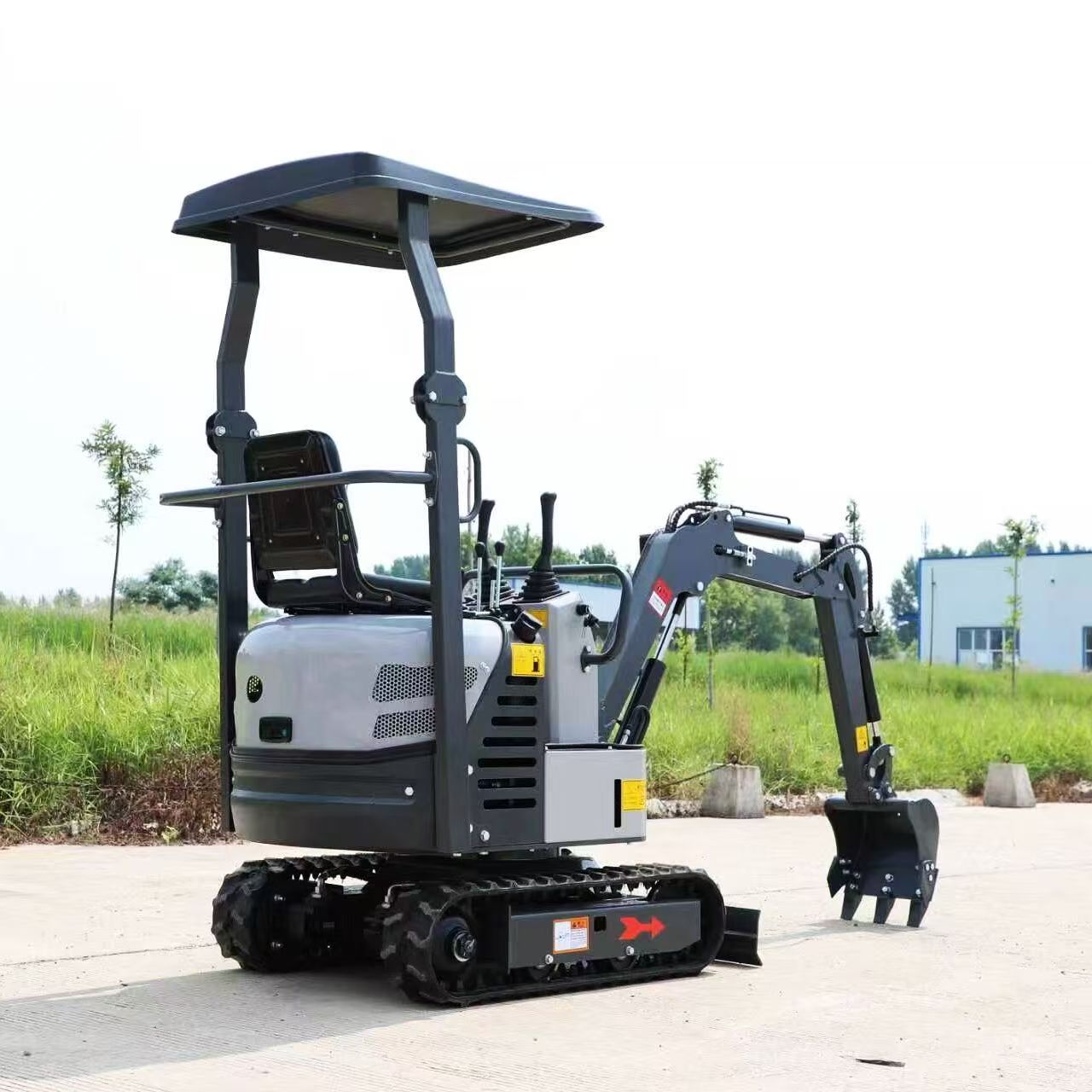

SE10
Power & Reliability: Equipped with a KOOP 8.6 kW (11.7 hp) single-cylinder air-cooled engine, delivering consistent performance with easy maintenance. The 1,000 kg operating weight ensures stable operation.
Compact & Versatile: 0.025 m³ bucket capacity and 400 mm bucket width for precise, efficient work. 35° gradeability for excellent terrain adaptability.
Practical Configurations: Rubber tracks (steel option available), standard tool kit, and 2-year warranty. Both models offer a roof, with SE10 adding an optional cab for operator comfort.
Product Overview
The SAAO SE10 mini excavator is a compact, compliant powerhouse for global projects. Powered by an 8.6 kW KOOP engine and certified CE, EPA, and EURO5, it delivers reliable performance in tight spaces. With a 1,650 mm max digging depth, 1,960 mm dumping height, and 960 mm width, it excels at indoor demolition, landscaping, and utility work. Customizable color, engine, and logo options, plus a 2‑year warranty, make it a versatile, trusted choice.
Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, adjustable dozer blade, easy to disassemble simple shed, 360 degree rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.
Product Specifications
Model | SE10A | SE10 |
Operating Weight | 1,000 kg | 1,000 kg |
Power | 8.6 kw (11.7 hp) | 8.6 kw (11.7 hp) |
Engine Brand | KOOP | KOOP |
Engine Type | 1-Cylinder, Air-cooled | 1-Cylinder, Air-cooled |
Bucket Capacity | 0.025 m³ | 0.025 m³ |
Bucket Width | 400 mm | 400 mm |
Max. Digging Depth | 1,600 mm | 1,650 mm |
Max. Vertical Digging Depth | 1,400 mm | 1,450 mm |
Max. Digging Height | 2,490 mm | 2,750 mm |
Max. Dumping Height | 1,750 mm | 1,960 mm |
Max. Digging Radius | 2,550 mm | 2,900 mm |
Overall Width | 930 mm | 960 mm |
Overall Dimension | 2,200*930*2,200 mm | 2,200*960*2,250 mm |
Gradeability | 35° | 35° |
Roof / Cab | Roof | Roof (Cab Option) |
Track | Rubber (Steel Option) | Rubber (Steel Option) |
Tool Kit | Yes | Yes |
Warranty | 2 Year | 2 Year |

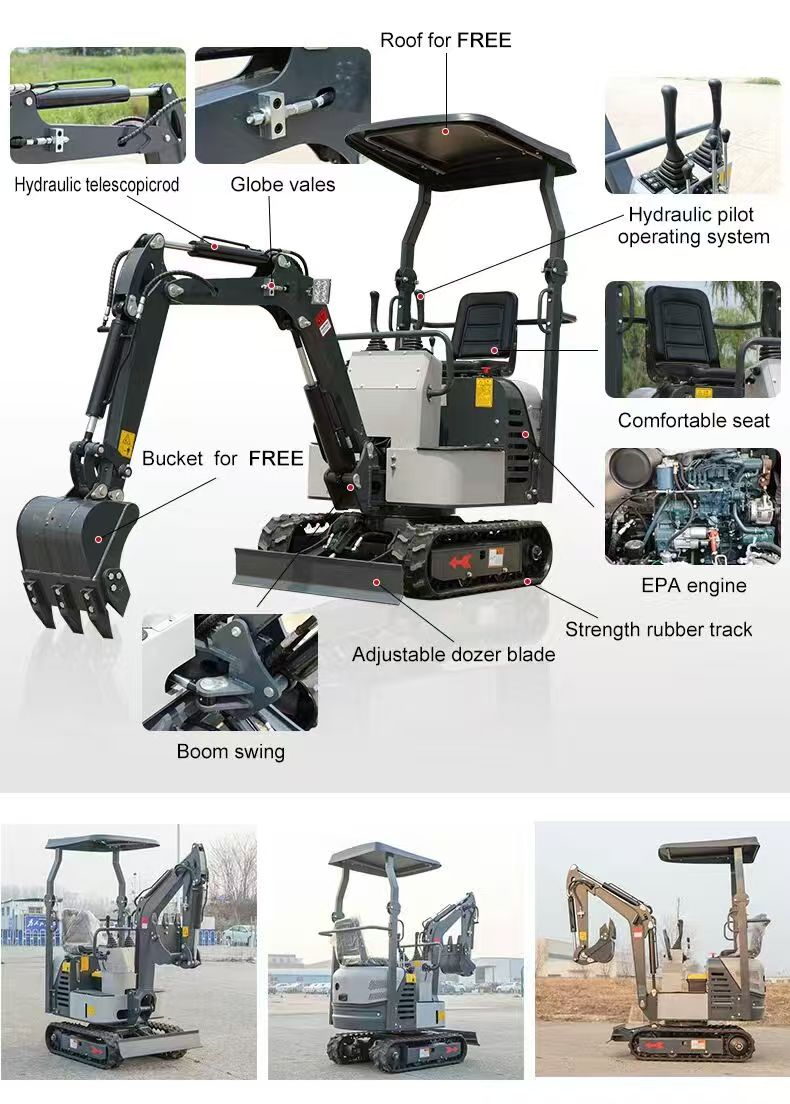

Detailed Presentation
◆Imported accessories to enhance the overall performance of the machine.
◆Signle-forging forming cylinder, not easy to break, built-in NOK seal.
◆Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion.
◆Engineering rubber track, fearless of harsh terrain;
◆The 360-degree body rotates freely, and the smart body facilitates outdoor work.

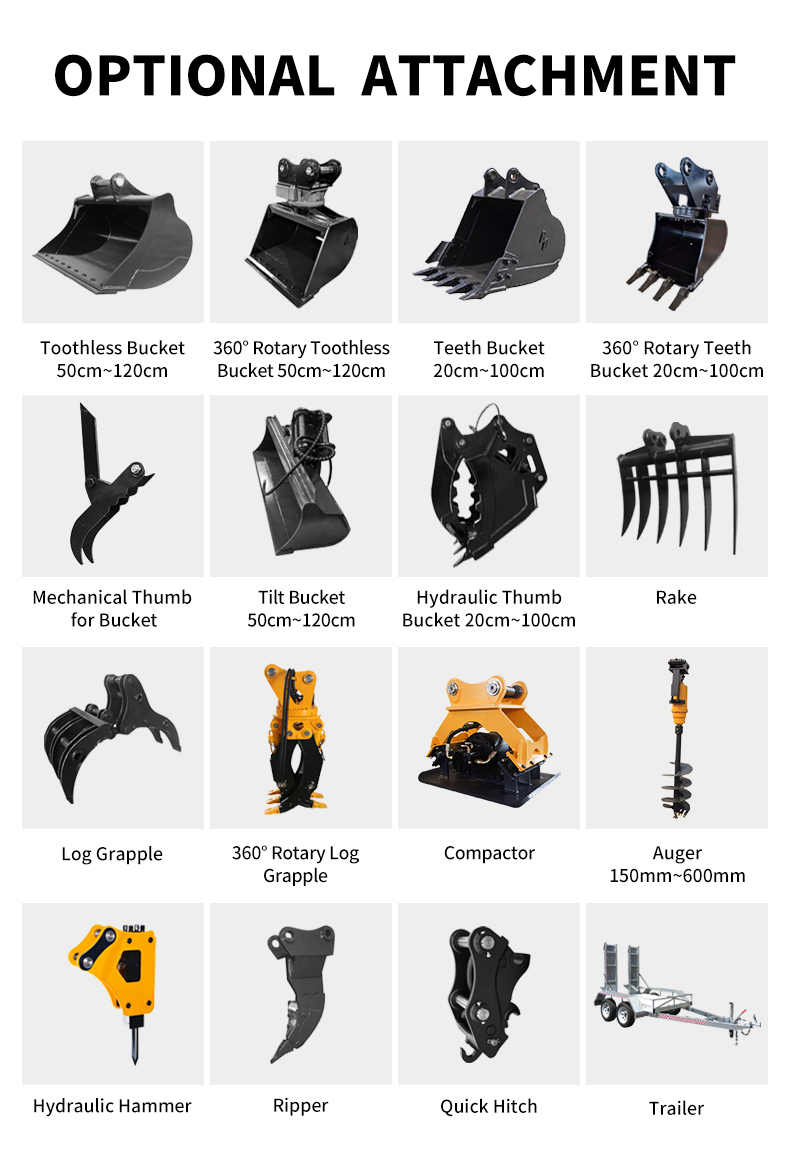

Optional Attachment
