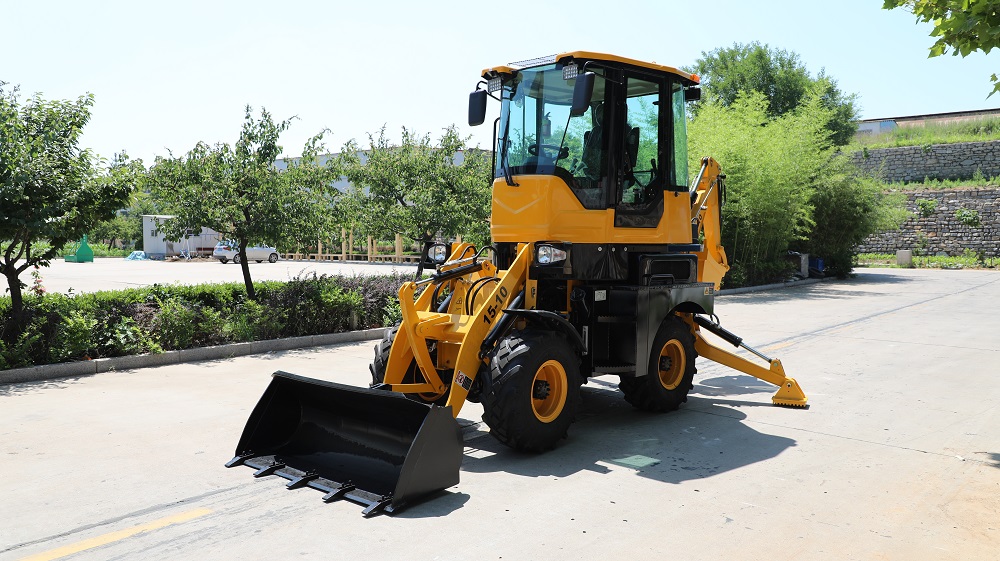

SAAO WZ15-10: The Ultra-Narrow Access Specialist
1.4m Access Master: At just 1400mm wide, it fits standard 1.5m gates, dominating high-margin residential sites that block standard loaders.
Kohler EPA4 Compliance: Powered by a world-renowned Kohler heart for worry-free US/EU compliance, global serviceability, and high resale value.
Dual-Performance ROI: A 2-in-1 titan combining a 1000kg-capacity loader with a 2000mm excavator, reducing fleet footprint and accelerating your Return on Investment.
Surgical Agility: Features 45° articulated steering and a tiny 2700mm turning radius for effortless, non-damaging maneuvers in narrow alleys and confined indoor projects.
WZ15-10: The 1.4m Gateway Master. Access What Standard Machines Can’t.
Stop turning down high-margin jobs in residential yards and indoor sites. The SAAO WZ15-10 is a precision-engineered 3-ton backhoe loader designed for one goal: Absolute Accessibility. At just 1400mm wide, it maneuvers through narrow gates and restricted alleys where standard loaders are physically locked out.
1.4m Ultra-Narrow Chassis: The industry-leading "all-access pass" for backyard renovations and urban utility trenching.
The Kohler Heart (EPA4/Euro V): Powered by the world-renowned Kohler engine, ensuring seamless compliance and elite performance in the US and European markets.
Torque Converter Efficiency: Advanced hydraulic gearbox and torque converter for smooth, high-traction earthmoving on any surface.
| Item | Specification |
|---|---|
| Model | WZ15‑10 |
| Dimensions | 560016002700 mm |
| Operating Weight | 3000 kg |
| Wheel Drive | 4×4 |
| Transmission Type | Hydraulic, Automatic |
| Engine | Kohler |
| Engine Power | 37 kw |
| Engine Type | Diesel, 4‑Cylinder |
| Rated Load | 1000 kg |
| Bucket Capacity | 0.5 m³ |
| Max. Dump Height | 2200 mm |
| Bucket Capacity | 0.15 m³ |
| Bucket Width | 300 mm |
| Max. Dig Depth | 2000 mm |
Core Competitive Advantage: The Kohler Power Edge
Global Compliance & Reliability: The Kohler Heart
The SAAO WZ15-10 is built for the global stage. We have replaced standard engines with the Kohler EPA4/Euro V diesel engine to provide our international clients with a competitive edge:
Hassle-Free Registration: Fully meets strict emission standards in North America and Europe, ensuring your fleet is compliant from day one.
Global Service Network: Enjoy peace of mind with Kohler’s worldwide parts and service support—no more waiting weeks for overseas components.
Industrial-Grade Torque: Delivers 42KW of steady, fuel-efficient power, specifically tuned for synchronized digging and loading cycles.
Operational Excellence: Agility Meets Precision

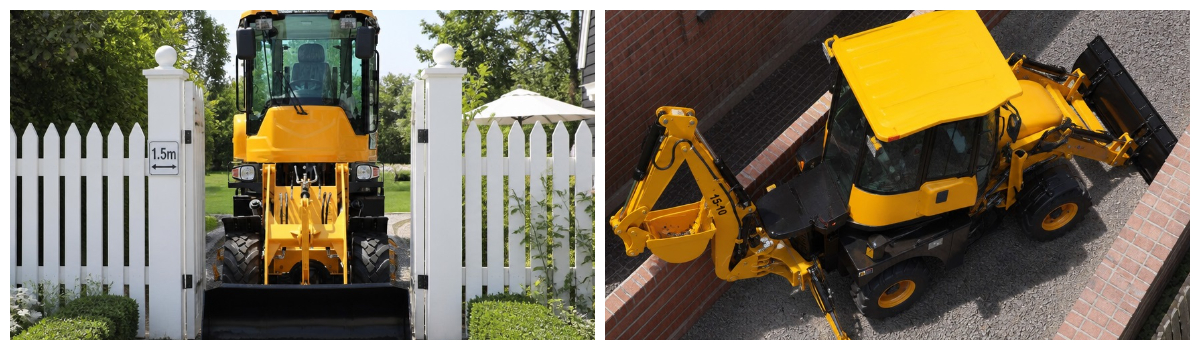

A. 1.4m Slim Chassis & Articulated Agility
Engineered for the "last mile" of construction, the WZ15-10 navigates sharp 90-degree corners in residential plots thanks to its 45° articulated steering and 2700mm turning radius.

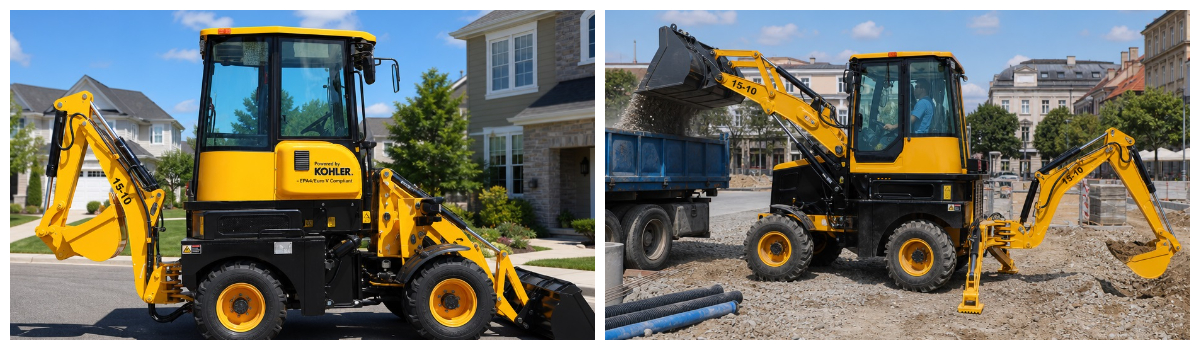

B. Professional Excavation & High-Reach Loading
Excavation: A 2000mm digging depth and 170° swing angle allow for efficient trenching along walls and foundations.
Loading: Features a 2200mm dumping height and 1000kg payload, perfectly optimized for loading material into standard transport trucks from a compact stationary position.
C. Luxury Cab & Pilot Control
Maximize operator productivity with a square luxury cab featuring LCD instrumentation, adjustable rotary seating, and ergonomic mechanical pilot controls for precision handling.
