SE40N
1.Compact & Agile: With a 1,550mm narrow width and 35° gradeability, it easily accesses and works in confined, steep spaces.
2.Powerful & Efficient: Powered by a 19.6kW Yanmar engine, it delivers strong performance with a 2,880mm digging depth and 4,965mm digging radius.
3.Precise & Versatile: Offers a 2,730mm vertical digging depth and 3,175mm dumping height for precise work near walls, in trenches, and convenient truck loading.
4.Durable & Reliable: Features standard steel tracks and an enclosed cab for enhanced durability and operator comfort, backed by a 2-year warranty.
Product Overview

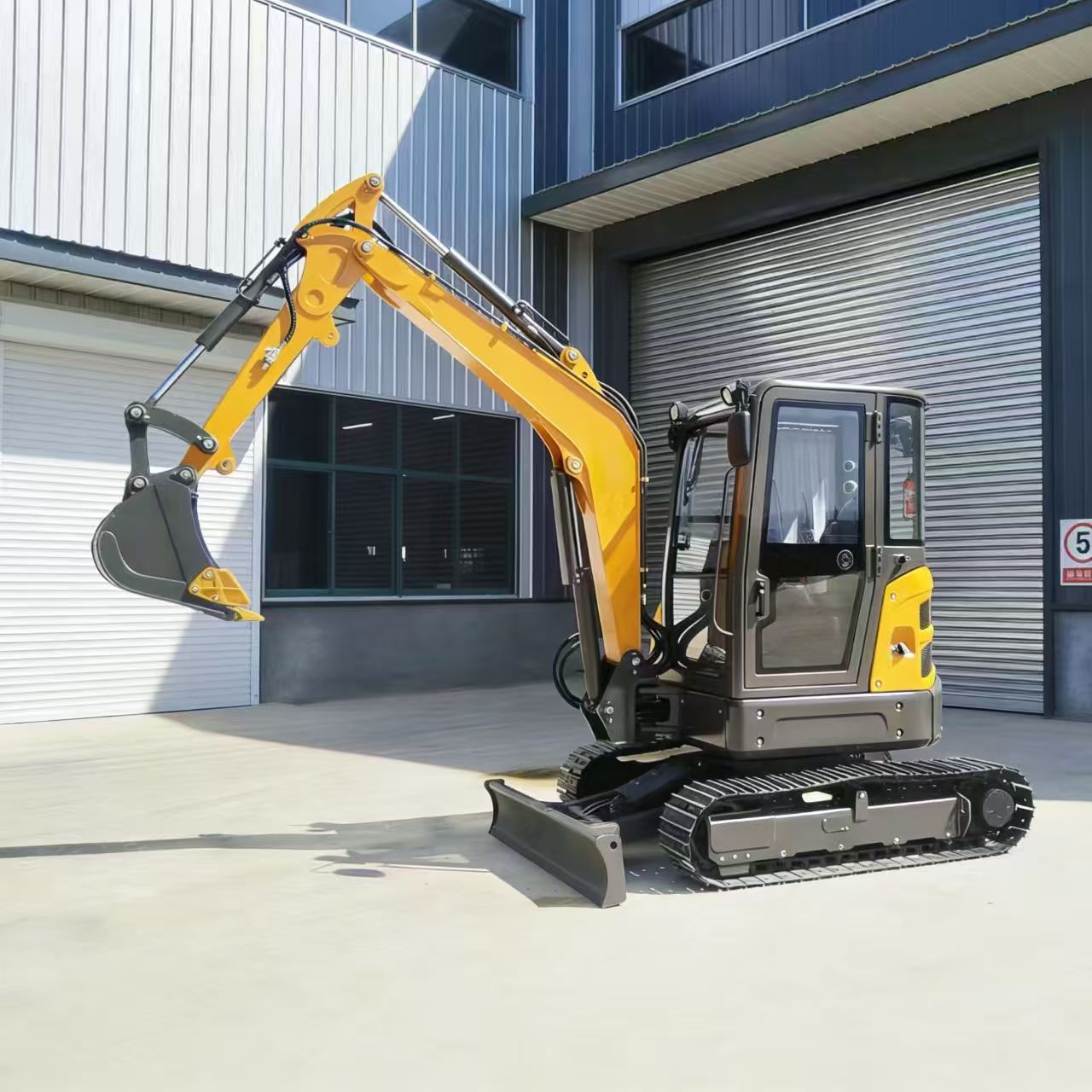

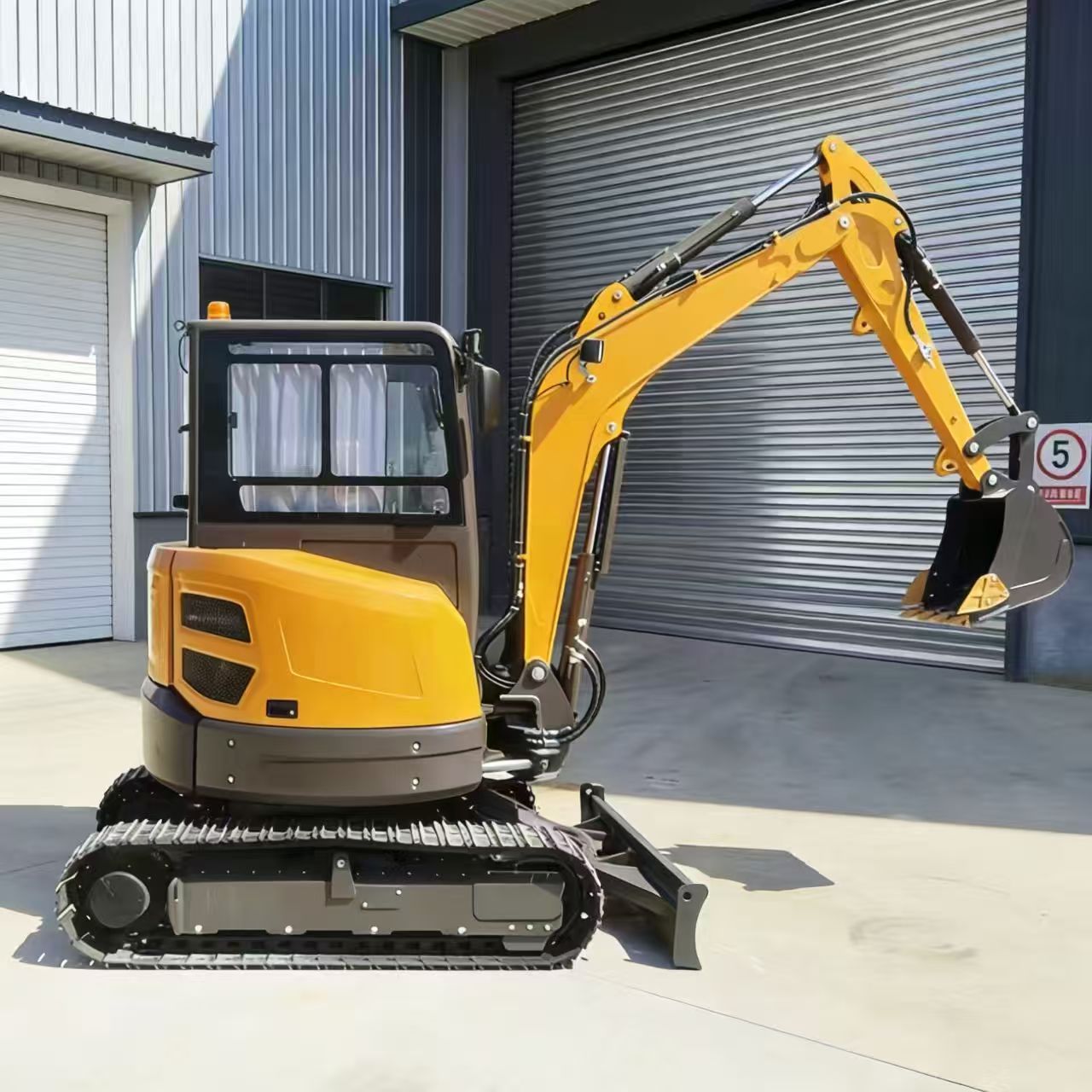

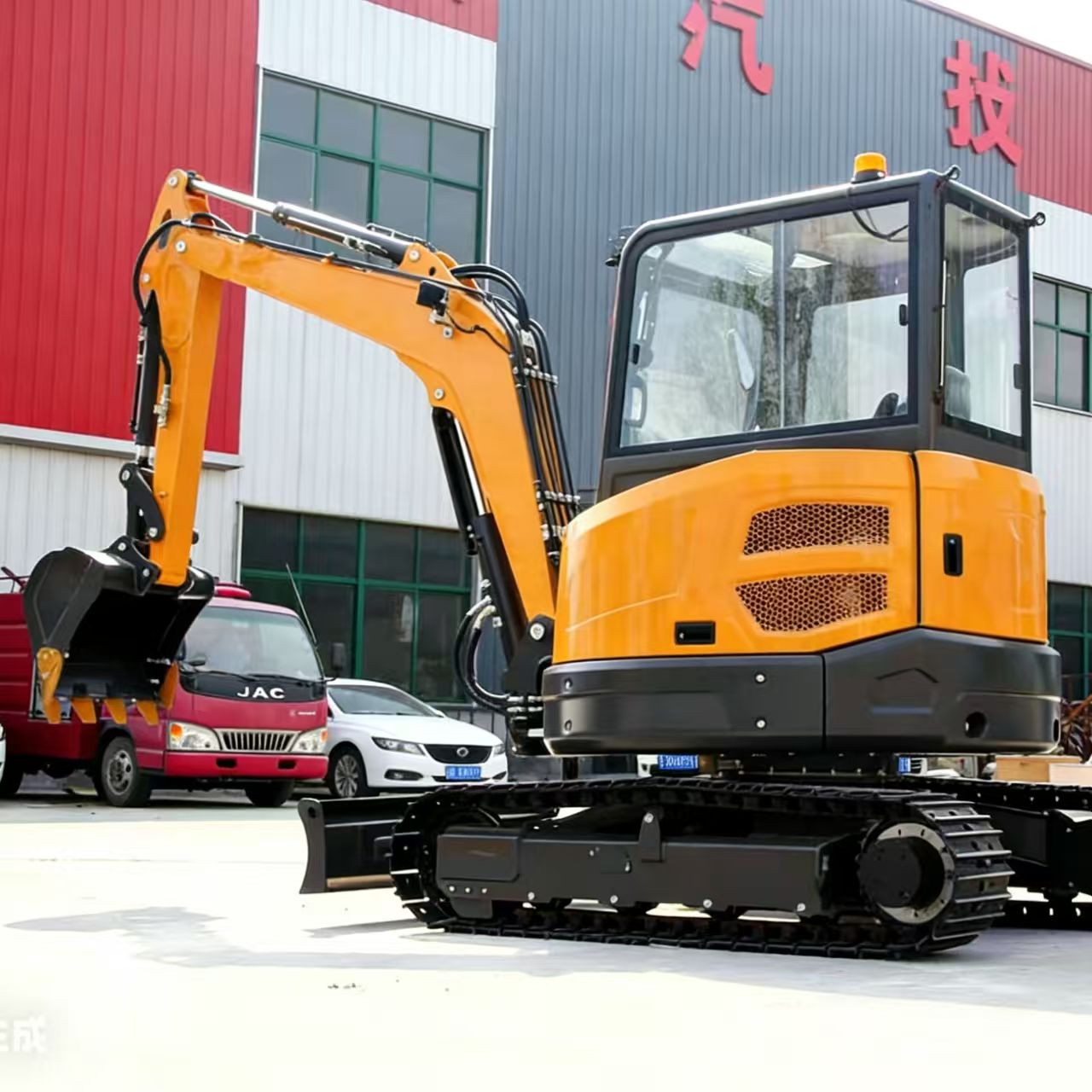

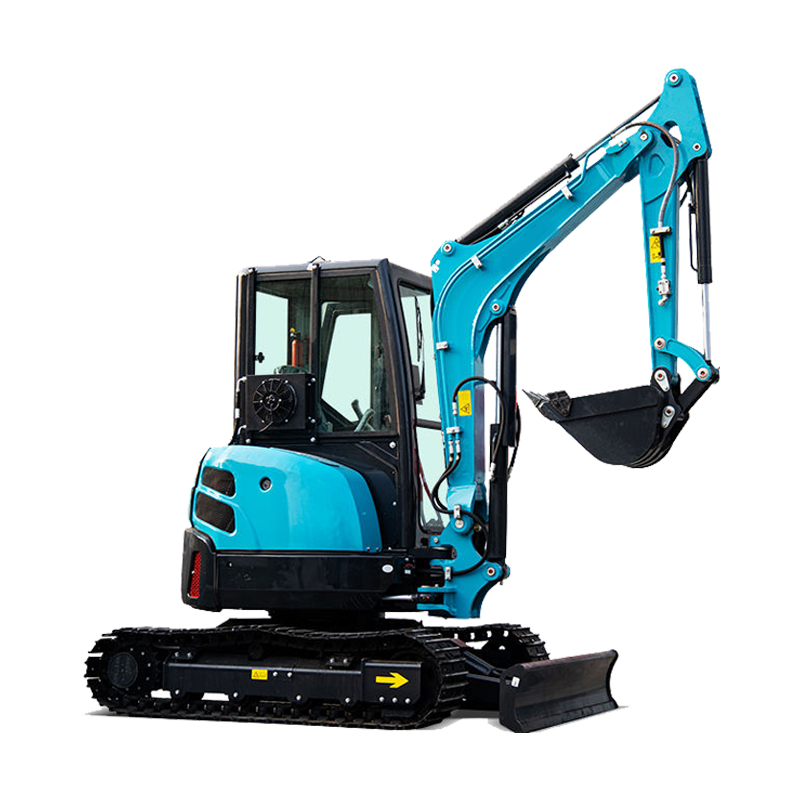

The SE40N is a robust and highly maneuverable micro excavator, engineered to deliver powerful performance in the tightest workspaces. It is the ideal solution for a wide range of applications, including urban construction, landscaping, utility maintenance, and indoor renovation projects where access is limited. Designed for longevity and backed by reliable manufacturing quality, each unit is supported by a comprehensive 2-year warranty and efficient global delivery.
Model | SE40N |
Operating Weight | 4,000 kg |
Power | 19.6 kw (26.66 hp) |
Engine Brand | Yanmar |
Engine Type | 3-Cylinder, Water-cooled |
Bucket Capacity | 0.09 m³ |
Bucket Width | 520 mm |
Max. Digging Depth | 2,880 mm |
Max. Vertical Digging De | 2,730 mm |
Max. Digging Height | 4,600 mm |
Max. Dumping Height | 3,175 mm |
Max. Digging Radius | 4,965 mm |
Overall Width | 1,550 mm |
Overall Dimension | 4485*1550*,440 mm |
Gradeability | 35° |
Roof / Cab | cab |
Track | Steel |
Tool Kit | Yes |
Warranty | 2 Year |
Configuration | Hydraulic Joystick, Load Sensitive System, High-low Speed Travel, Boom Swing, Air Conditioner |
Product Details Display
1. Superior Spatial Adaptability and Access
With its compact body width of 1,550mm and a total length of just 4,485mm, this machine excels at navigating and operating within confined spaces such as narrow construction sites, courtyards, and indoor environments. Coupled with a powerful 35° gradeability, it offers exceptional mobility and access on complex, restricted terrains, significantly expanding its usable range compared to traditional larger equipment.
2. Efficient, Reliable Power and Digging Performance
At its core, the Yanmar 3-cylinder water-cooled engine delivers a stable output of 19.6kW (26.66 HP), ensuring reliable performance for continuous operation. It achieves impressive efficiency and reach for its size, featuring a maximum digging depth of 2,880mm, a maximum digging radius of 4,965mm, and is paired with a standard 0.09m³ bucket.
3. Precision Operation and Versatility
The design, which allows for a maximum vertical digging depth of 2,730mm and a maximum dumping height of 3,175mm, enables precise work close to walls and at the bottom of trenches. This capability, along with the convenient loading height, broadens its application scope for municipal projects, landscaping, and small-scale earthworks.
4. Rugged Durability and Operational Assurance
Standard steel tracks enhance durability and stability on rough ground. The enclosed cab provides all-weather protection for the operator, improving comfort and safety. Furthermore, the inclusion of a tool kit and a 2-year warranty policy guarantees higher machine availability and long-term value, providing users with greater investment security.
This presentation translates technical specifications into tangible customer benefits, highlighting the product's positioning as "compact in size, powerful in performance, highly efficient, and built to last," making it suitable for product detail pages or promotional materials.
