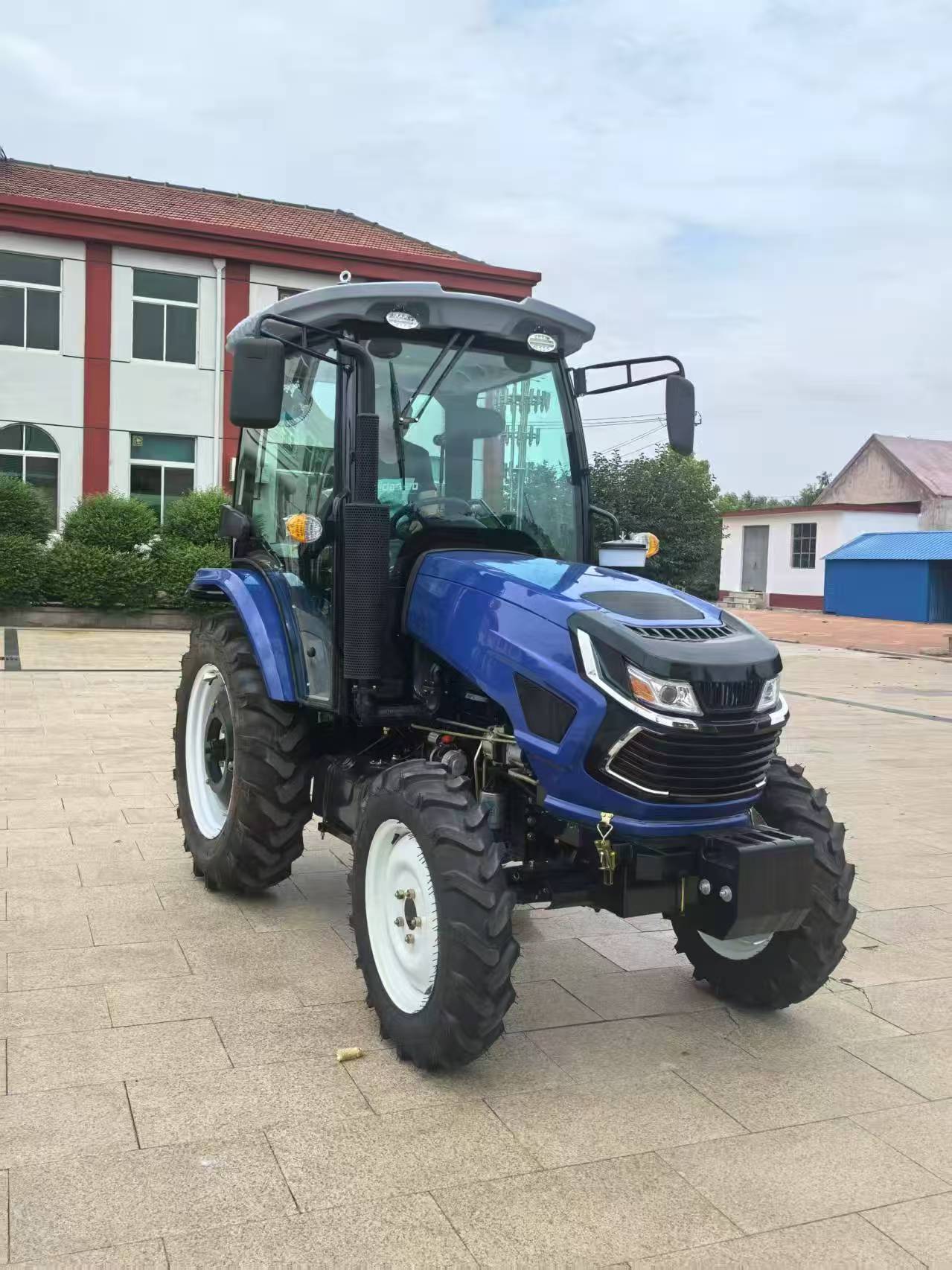

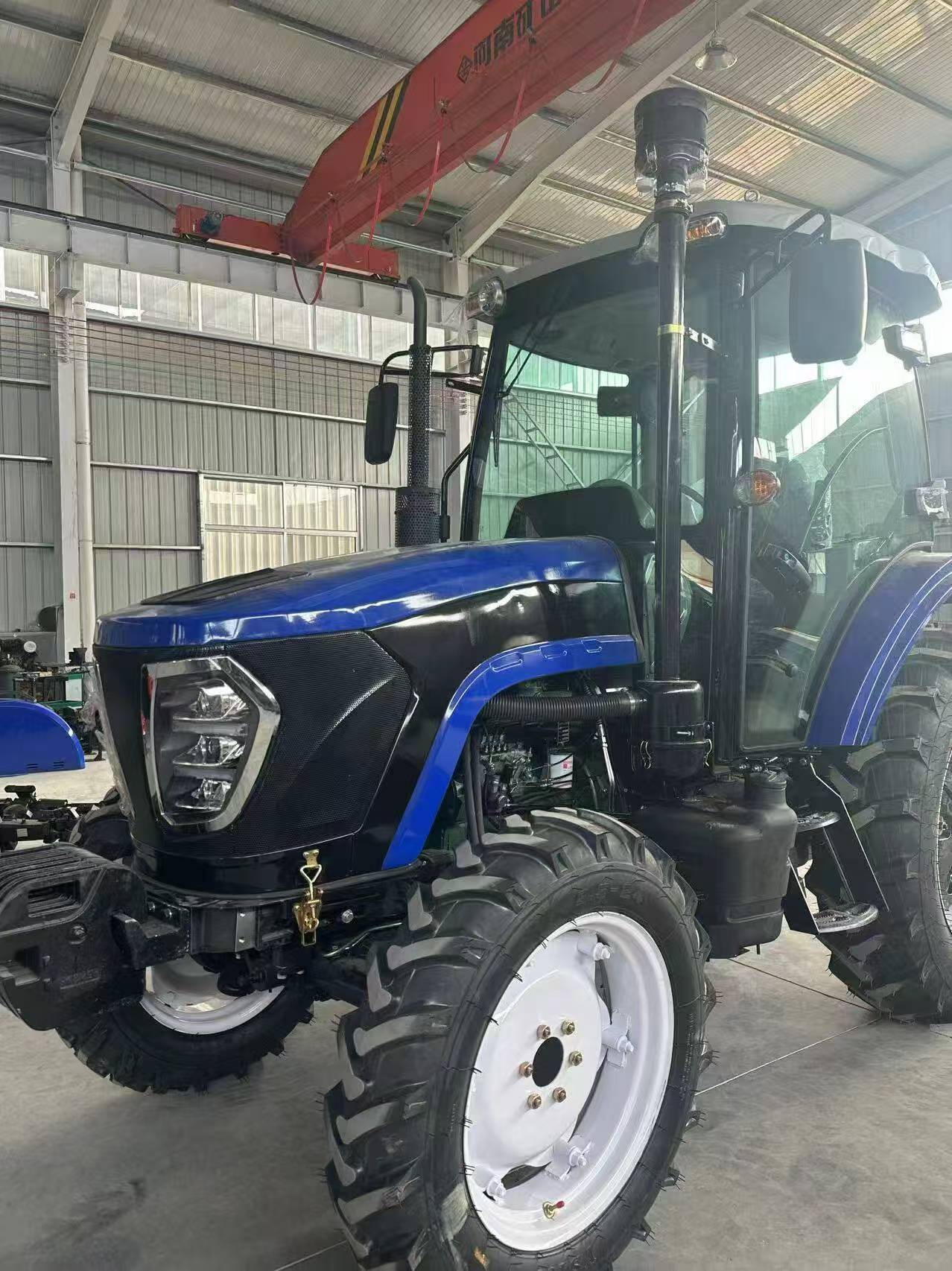

120HP Tractor

The SAAO 120HP Tractor 4x4 utility tractor is a high-power agricultural machine powered by a turbocharged 88.5kW diesel engine, designed for heavy tillage, planting, haying, and material handling on large farms, ranches, and commercial agricultural operations. Featuring a 12+12 shuttle shift transmission, three sets of hydraulic remotes, adjustable 1400-1800mm rear wheelbase, 540/720 rpm dual-speed PTO, and 50km/h transport speed, this versatile tractor delivers professional-grade performance across diverse row crop applications and heavy-duty fieldwork. Backed by SAAO's 20 years of manufacturing expertise and 2-year warranty, every unit ships ready to work from our Shandong facility to customers worldwide.

Detailed Advantage Breakdown

Powerful Turbocharged Engine for Demanding Applications
At the heart of this 1204 wheel tractor lies a Weifang 4-cylinder, inline, direct-injection, turbocharged diesel engine delivering 88.5kW (120HP) at 2400r/min. The turbocharger provides exceptional torque rise for lugging through tough soils and up steep grades without constant downshifting. Water-cooled with a reliable cooling system, this engine maintains optimal operating temperatures even during peak summer fieldwork. The 50km/h maximum transport speed reduces road travel time between fields, maximizing productive hours.

Versatile Transmission for Every Task
The 12+12 shuttle shift transmission (12 forward, 12 reverse) with side-shift capability enables quick direction changes—essential for loader work, baling, and operations requiring frequent reversals. Well-spaced gear ratios provide the right speed for every task: slow creep speeds for precision cultivation, working speeds for tillage, and transport speeds up to 50km/h for road travel. The direct engine-to-clutch connection ensures efficient power transfer and smooth engagement.

Superior Adaptability with Adjustable Wheelbase
The rear wheelbase adjusts from 1400mm to 1800mm, allowing the tractor to match various row crop configurations—from narrow vegetable rows to wide corn or cotton rows. Combined with adjustable front/rear wheel tread (1500mm common width), this machine adapts to your farming system rather than forcing you to adapt to it. The 600mm ground clearance provides ample under-axle clearance for working in tall crops, orchards, and uneven terrain.

Heavy-Duty Hydraulic System for Multiple Implements
Three sets of hydraulic remote valves (Group 3 hydraulic output) allow simultaneous operation of multiple implements—run a loader, a rear implement, and hydraulic folding markers all at once. The working device safety valve opens at 17.5-18.0 MPa, ensuring consistent hydraulic performance under heavy loads. This hydraulic capacity handles demanding attachments like front-end loaders, backhoes, large round balers, and hydraulic scrapers with ease.

Built for Continuous Heavy Use
The TB heavy-duty rear axle and maintenance-free front axle are engineered to withstand the stresses of continuous heavy tillage and loader work. Standard front/rear ballast (144kg front, 400kg rear) optimizes traction with heavy implements, reducing wheel slip and improving fuel efficiency. The ROPS safety frame meets international safety standards, protecting the operator during rollover incidents. Four-wheel drive with fully hydraulic steering provides effortless control and superior traction in soft or slippery conditions.

Dual-Speed PTO for Implement Versatility
The 6-spline independent power take-off offers dual speeds—540 rpm for standard agricultural implements like mowers, tillers, and balers, and 720 rpm for higher-speed operations such as heavy-duty rotary cutters or specialized equipment. This versatility ensures compatibility with virtually any Category II three-point hitch implement on the market.

Operator-Focused Design for Long Days
The spacious platform with ergonomic controls and fully hydraulic steering reduces operator fatigue during 10-12 hour shifts. All daily maintenance points—engine oil, coolant, hydraulic fluid, filters—are easily accessible without special tools. The 3800×1800×2300mm dimensions and 1400-1800mm adjustable wheelbase provide excellent stability while maintaining maneuverability in field and transport situations.

Key Application Scenarios

1. Large-Scale Field Operations

Performance: 120HP turbocharged engine delivers exceptional power for deep tillage, plowing, discing, and heavy cultivation across hundreds of acres. 12+12 shuttle shift transmission provides optimal speeds for every task, from precision work to high-speed transport.

Key Advantage: 400kg rear ballast and 4x4 traction minimize wheel slip, maximizing power transfer to the ground for continuous high-load performance.

2. Row Crop Versatility

Performance: Adjustable rear wheelbase (1400-1800mm) matches common row spacings for corn, soybeans, cotton, and vegetables. 600mm ground clearance provides ample under-axle clearance for working in mature crops without damage.

Key Advantage: One tractor adapts to multiple crop configurations—eliminating the need for specialized equipment.

3. Hay & Forage Operations

Performance: 540/720 rpm dual-speed PTO operates balers, disc mowers, tedders, and rakes at optimal speeds. Three sets of hydraulic remotes control multiple implements simultaneously.

Key Advantage: 50km/h transport speed reduces travel time between fields during critical haying windows.

4. Loader & Material Handling

Performance: 4x4 traction and 88.5kW power handle heavy pallets, hay bales, feed, and building materials with ease. 12+12 shuttle shift enables fast back-and-forth loading cycles.

Key Advantage: Three hydraulic remotes power grapples, bale spears, and pallet forks—transforming the tractor into a year-round utility machine.

5. Slopes & Rough Terrain

Performance: 4x4 drive with fully hydraulic steering provides exceptional traction and control on uneven ground and slopes. 600mm ground clearance clears obstacles without compromising stability.

Key Advantage: Low center of gravity and adjustable wheelbase enhance safety and confidence in challenging terrain.

6. Year-Round Durability & Operator Comfort

Performance: TB heavy-duty rear axle and maintenance-free front axle withstand continuous heavy use. ROPS safety frame meets international standards. Fully hydraulic steering reduces operator fatigue during long shifts.

Key Advantage: Easy-access maintenance points, 2-year warranty, and corrosion-resistant components ensure reliable performance season after season.
