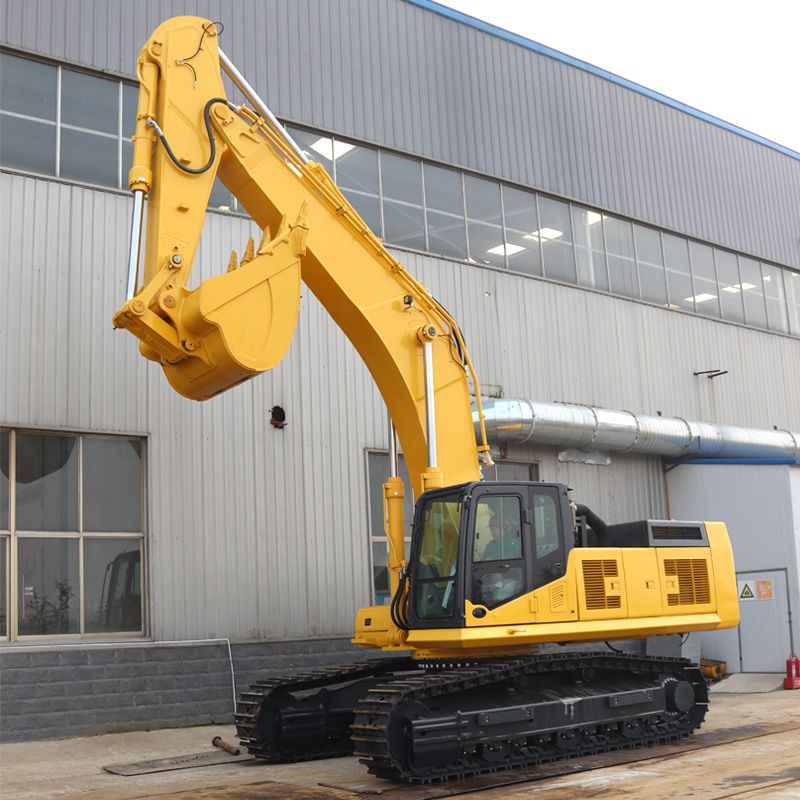

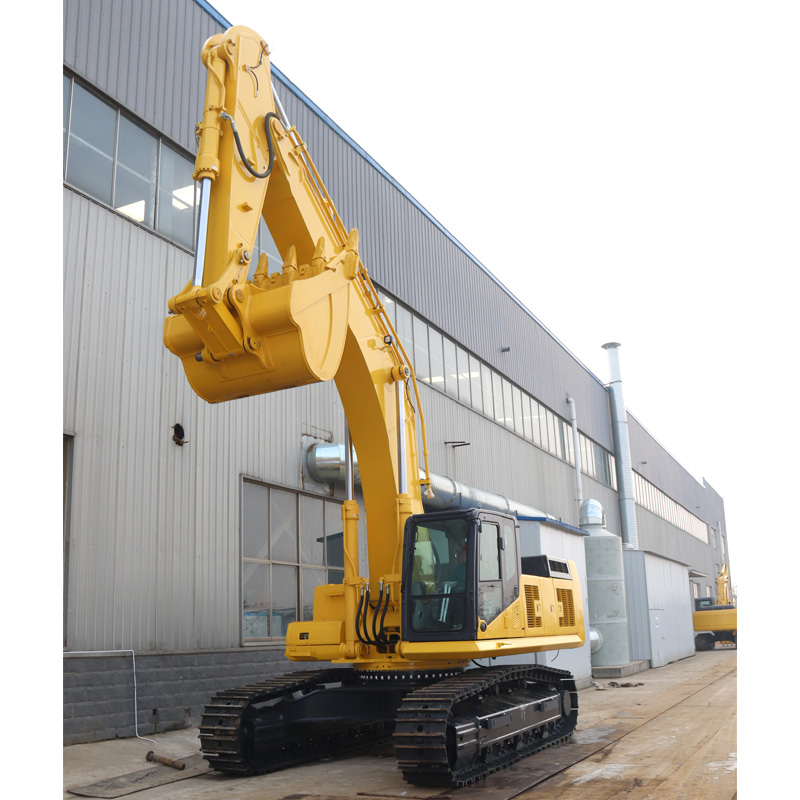

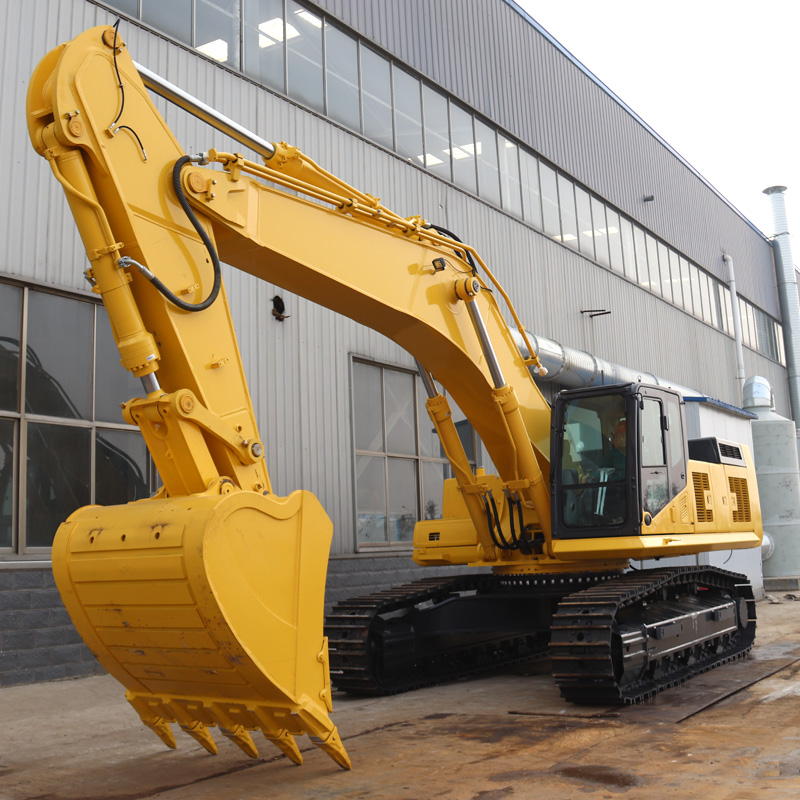

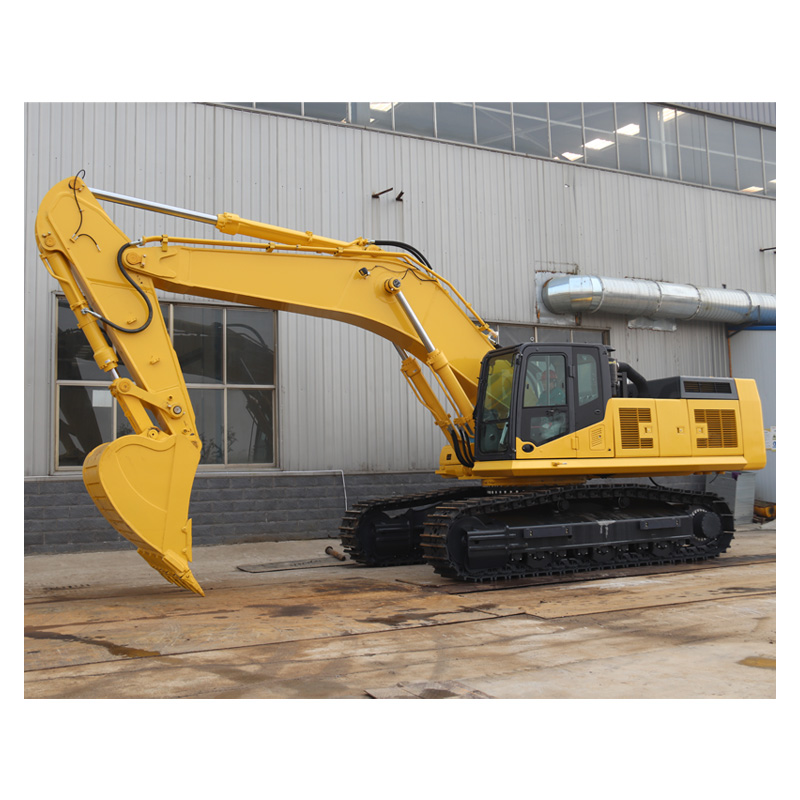

SE520
1. Original ISUZU Engine for Reliability
Equipped with the original ISUZU 6WG1X water-cooled engine, it delivers 300KW (408hp) strong power, ensuring stable operation, long service life and low failure rate, saving maintenance time and costs.
2. High Efficiency for Multiple Tasks
52,000kg operating weight ensures stability, 2.8-3.6m³ adjustable bucket capacity and 6,260mm max digging depth make it suitable for various heavy-duty tasks with high efficiency.
3. Flexible Adaptation to All Sites
70° gradeability, optional rubber/steel tracks and compact structure allow it to flexibly adapt to mountainous, narrow and complex job sites without limitations.
4. Cost-Effective & Comprehensive Support
Comes with an enclosed cab, standard tool kit and 2-year warranty; our professional team provides customized solutions, fast delivery and thoughtful after-sales service for worry-free use.
Product Overview:
The SE520 is a 52-ton large-sized excavator, equipped with the original ISUZU 6WG1X water-cooled engine that outputs 300KW (408hp), featuring stable performance and low failure rate. It is widely applicable to large-scale earthwork, mining operations, road construction, municipal engineering and other heavy-duty scenarios, fully meeting the needs of high-intensity continuous operation. With mature production capacity, strict quality control and complete certifications, our factory supports track customization, provides fast delivery and comprehensive after-sales service, offering high cost-performance for domestic and overseas customers.
Item | Details |
|---|---|
Model | SE520 |
Operating Weight | 52,000 kg |
Power | 300 KW (408 hp) |
Engine Brand | ISUZU 6WG1X |
Engine Type | Water-cooling |
Bucket Capacity | 2.8-3.6 m³ |
Max. Digging Depth | 6,260 mm |
Max. Digging Height | 10,000 mm |
Max. Dumping Height | 6,760 mm |
Max. Digging Radius | 10,580 mm |
Overall Width | 3,340 mm |
Overall Dimension | 11,600 * 3,340 * 4,050 mm |
Gradeability | 70° |
Roof / Cab | Cab |
Track | Rubber (Steel Option) |
Tool Kit | Yes |
Warranty | 2 year |
